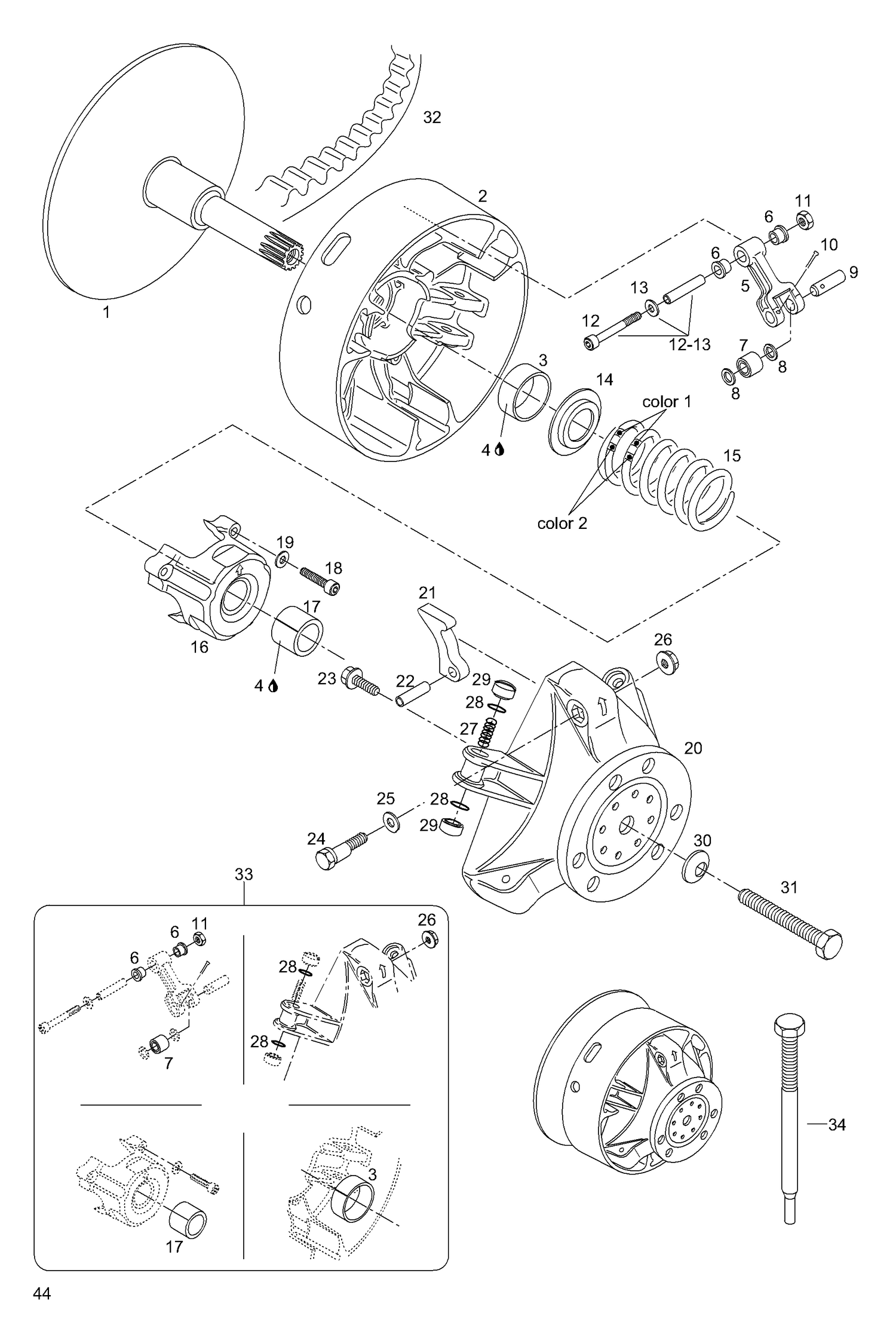

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 417222412 |
Fix flange Bombardier |
1 | 45-55 дней | 29545 ₽ | |
| 2 | 417222241 |
Sliding flange | includes items 2 thru 3 Bombardier |
1 | 45-55 дней | 24972 ₽ | |
| 3 | 417004201 |
Bushing outer half Bombardier |
1 | 45-55 дней | 2248 ₽ | |
| 4 | 413703100 |
Loctite 609, 10cc Bombardier |
1 | 45-55 дней | 2321 ₽ | |
| 5 | 417222383 |
Lever assy | includes items 5 thru 6 Bombardier |
1 | 45-55 дней | 5370 ₽ | |
| 6 | 417004305 |
Flange bushing Bombardier |
1 | 45-55 дней | 435 ₽ | |
| 7 | 417222947 |
Roller Bombardier |
1 | 45-55 дней | 1884 ₽ | |
| 8 | 417004302 |
Thrust washer Bombardier |
1 | 45-55 дней | 1522 ₽ | |
| 9 | 417004308 |
Pin Bombardier |
1 | 45-55 дней | 1245 ₽ | |
| 10 | 250400060 |
Cotter pin Bombardier |
1 | 45-55 дней | 179 ₽ | |
| 11 | 33010 | Lock nut m6 (1=10pcs) | 1 | Узнать цены | ||
| 12 | 205065044 |
Socket hd screw m6 x 50 Bombardier |
1 | 45-55 дней | 158 ₽ | |
| 12 | 417004800 |
Fitting screw assy | includes items 12 thru 13 Bombardier |
1 | 45-55 дней | 2322 ₽ | |
| 13 | 20003 |
Flat washer 6mm Cylinder Works |
1 | 25-45 дней | 24136 ₽ | |
| 14 | 417222044 | Spring seat | 1 | Узнать цены | ||
| 15 | 415034900 |
Spring purple/blue Bombardier |
1 | 45-55 дней | 1393 ₽ | |
| 16 | 417222304 | Spring cover assy | includes items 16 thru 17 | 1 | Узнать цены | ||
| 17 | 417004501 |
Spring cover bushing Bombardier |
1 | 45-55 дней | 2175 ₽ | |
| 18 | 250000038 |
Allen screw m6 x 40 Bombardier |
1 | 45-55 дней | 616 ₽ | |
| 19 | 420245370 |
Friction washer Bombardier |
1 | 45-55 дней | 51 ₽ | |
| 20 | 417222081 |
Gouvernor cup assy Bombardier |
1 | 45-55 дней | 32958 ₽ | |
| 21 | 417005290 | Ramp 290 | 1 | Узнать цены | ||
| 22 | 732804009 | Dowl tube | 1 | Узнать цены | ||
| 23 | 210361890 |
Screw m6 x 18 Bombardier |
1 | 45-55 дней | 293 ₽ | |
| 24 | 417222955 |
Calibration screw Bombardier |
1 | 45-55 дней | 3119 ₽ | |
| 25 | 417005600 |
Washer Bombardier |
1 | 45-55 дней | 365 ₽ | |
| 26 | 233061414 |
Locking nut m6 Bombardier |
1 | 45-55 дней | 149 ₽ | |
| 27 | 417005700 |
Spring Bombardier |
1 | 45-55 дней | 439 ₽ | |
| 28 | 732401030 |
O-ring Bombardier |
1 | 45-55 дней | 90 ₽ | |
| 29 | 417223021 |
Slider shoe Bombardier |
1 | 45-55 дней | 663 ₽ | |
| 30 | 20090 |
Conical washer m12 Bombardier |
1 | 45-55 дней | 510 ₽ | |
| 31 | 417113800 |
Screw Bombardier |
1 | 45-55 дней | 960 ₽ | |
| 32 | 414633800 |
Drive belt Bombardier |
1 | 45-55 дней | 14590 ₽ | |
| 33 | 417006100 |
Clutch repair kit Bombardier |
1 | 45-55 дней | 16550 ₽ | |
| 34 | 529007900 |
Puller inner half Bombardier |
1 | 45-55 дней | 6313 ₽ | |
| 44 |
Shaft seal - does not apply to this model Arctic Cat |
1 | 45-55 дней | 0 ₽ |
