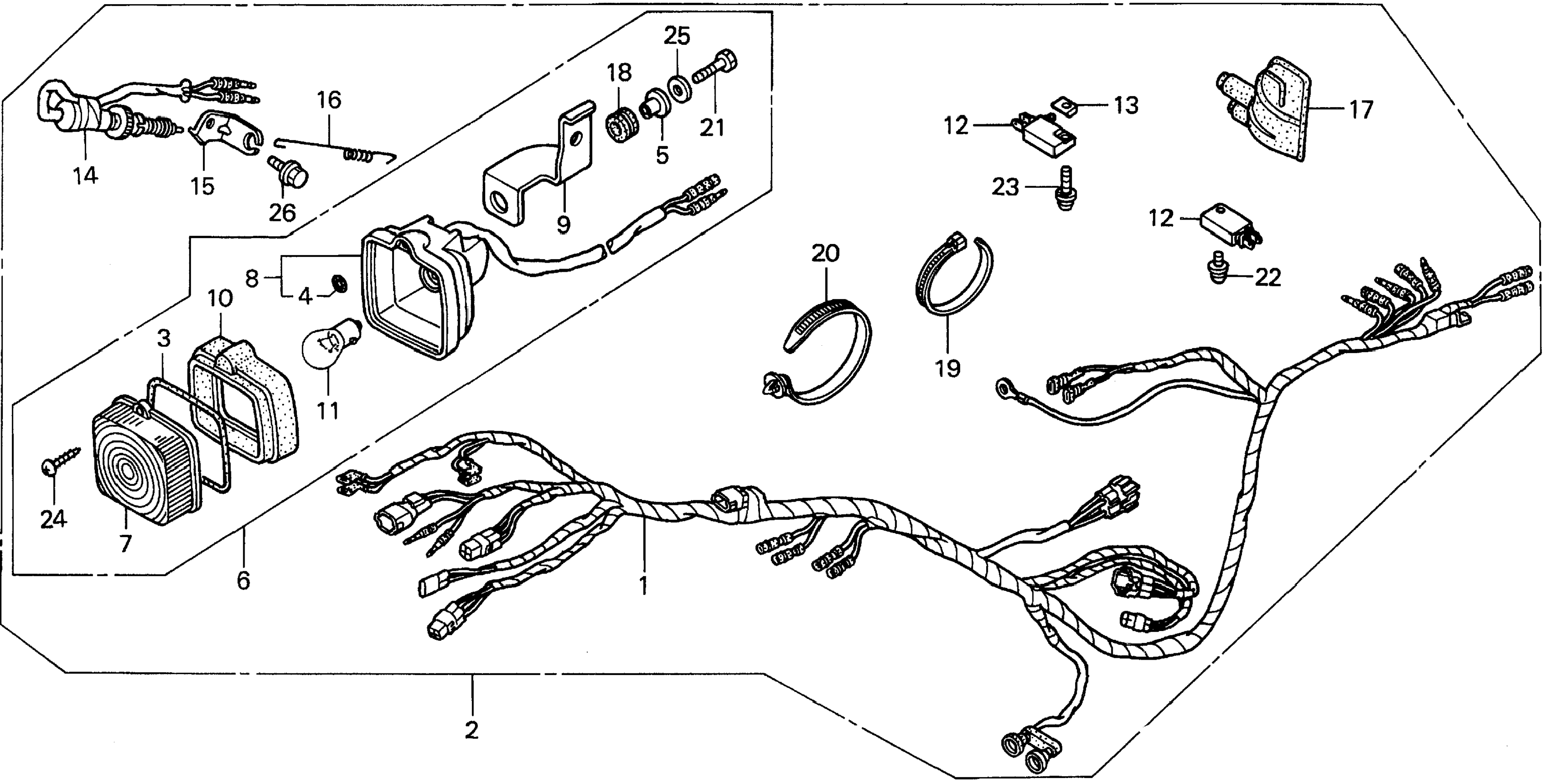

№ | Номер запчасти, наличие, срок поставки |
Наименование | Кол-во | Цена |
1 | 32100-HM8-690 / 45-55 дней | Wire harness | 1 | 18 715 р. |
2 | 33080-HM8-690 | Light set, stop (na use alt:33080-hm8a-6900) | 1 | Узнать цены |
3 | 33407-166-611 / 45-55 дней | Gasket, turn signal lens | 1 | 698 р. |
4 | 33408-166-611 / 45-55 дней | Gasket, seal | 1 | 245 р. |
5 | 33715-MC4-610 / 45-55 дней | Collar, taillight setting | 1 | 506 р. |
6 | 33810-HM8-690 / 45-55 дней | Light assy., stop | 1 | 6 040 р. |
7 | 33812-HF1-830 / 45-55 дней | Lens, stop light | 1 | 1 464 р. |
8 | 33813-HC4-830 / 45-55 дней | Base, stop light | 1 | 6 660 р. |
9 | 33815-HM8-690 / 45-55 дней | Stay, stop light | 1 | 1 461 р. |
10 | 33850-HF1-831 / 45-55 дней | Rubber, stop light waterproof | 1 | 2 306 р. |
11 | 34905-KN8-003 / 45-55 дней | Bulb, turn signal (12v 18.4w) | 1 | 555 р. |
12 | 35340-ML4-005 / 45-55 дней | Switch assy., fr. stop (tateishi) | 2 | 2 382 р. |
12 | 35340-HR0-305 / 45-55 дней | Switch assy., fr. stop (coo) | 2 | 2 382 р. |
13 | 35345-HF1-830 / 45-55 дней | Collar, stop switch | 1 | 748 р. |
14 | 35350-HM8-691 / 45-55 дней | Switch assy., rr. stop | 1 | 1 319 р. |
15 | 35351-HM8-690 / 45-55 дней | Stay, stop switch | 1 | 910 р. |
16 | 35357-HM8-691 / 45-55 дней | Spring, stop switch | 1 | 589 р. |
17 | 53177-HF1-830 / 45-55 дней | Cover, l. handle | 1 | 822 р. |
18 | 80101-283-000 / 45-55 дней | Rubber, rr. fender cushion | 1 | 695 р. |
19 | 90652-KT1-771 / 45-55 дней | Band, wire (black) | 3 | 557 р. |
20 | 91540-S30-003 / 45-55 дней | Clip, harness band (151.5mm) (natural) | 1 | 404 р. |
21 | 92101-05020-0A / 45-55 дней | Bolt, hex. (5x20) | 1 | 153 р. |
22 | 93893-04014-07 / 45-55 дней | Screw-washer (4x14) | 1 | 153 р. |
23 | 93893-04020-07 / 45-55 дней | Screw-washer (4x20) | 1 | 153 р. |
24 | 93901-14480 / 45-55 дней | Screw, tapping (4x16) | 1 | 153 р. |
25 | 94101-05000 / 45-55 дней | Washer, plain (5mm) | 1 | 153 р. |
26 | 95701-06010-00 / 45-55 дней | Bolt, flange (6x10) | 1 | 153 р. |
