| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |

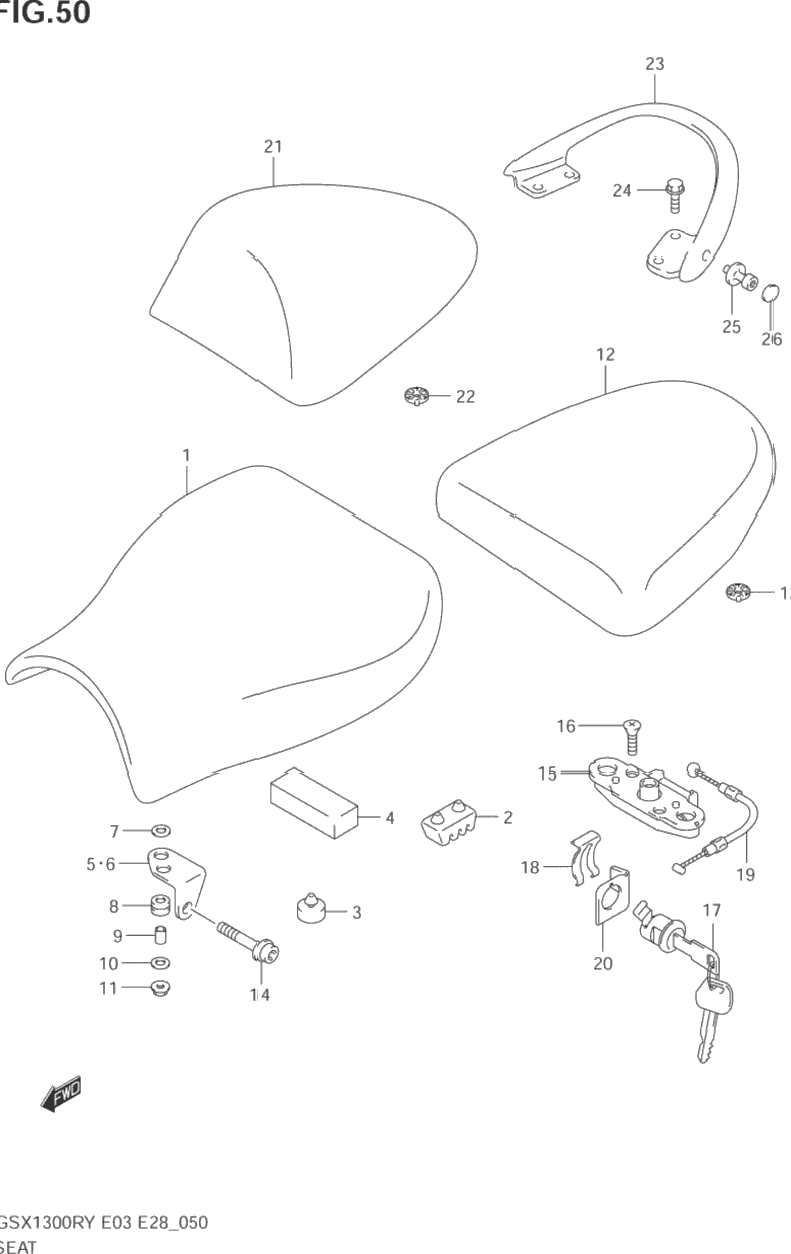

| -- | Refer to fig.50a(k-3) for | 1 | 0 ₽ | |||
| 1-1 | 45100-24F10-W05 |
Seat assy (black) model x Suzuki Moto |
1 | 45-55 дней | 25151 ₽ | |
| 1-2 | 45100-24F10-W05 |
Seat assy (black) model y Suzuki Moto |
1 | 45-55 дней | 25151 ₽ | |
| 2 | 45149-45330 |
.cushion Suzuki Moto |
2 | 45-55 дней | 467 ₽ | |
| 3 | 09321-10011 |
.cushion Suzuki Moto |
2 | 45-55 дней | 331 ₽ | |
| 4 | 45117-47D00 | .cushion | 1 | Узнать цены | ||
| 5 | 45115-24F00 | .bracket, seat front rh | 1 | Узнать цены | ||
| 6 | 45116-24F00 |
.bracket, seat front lh Suzuki Moto |
1 | 45-55 дней | 1358 ₽ | |
| 7 | 09160-06066 |
.washer Suzuki Moto |
4 | 45-55 дней | 227 ₽ | |
| 8 | 45149-24F01 |
.cushion (10x20x10) Suzuki Moto |
4 | 45-55 дней | 1215 ₽ | |
| 9 | 09180-06310 |
.spacer (6.5x10x10) Suzuki Moto |
4 | 45-55 дней | 227 ₽ | |
| 10-1 | 09160-06066 |
.washer model x Suzuki Moto |
4 | 45-55 дней | 227 ₽ | |
| 10-2 | 45117-24F00 |
.washer, seat model y Suzuki Moto |
2 | 45-55 дней | 619 ₽ | |
| 11 | 08316-1006B |
.nut Suzuki Moto |
4 | 45-55 дней | 296 ₽ | |
| 12 | 45300-24F10-W05 |
Seat assy, pillion (black) Suzuki Moto |
1 | 45-55 дней | 25610 ₽ | |
| 13 | 45213-31300 |
.cushion Suzuki Moto |
2 | 45-55 дней | 318 ₽ | |
| 14 | 45191-24F00 |
Bolt, seat front (6x40) Suzuki Moto |
2 | 45-55 дней | 613 ₽ | |
| 15 | 45220-47H00 |
Bracket, seat support Suzuki Moto |
1 | 45-55 дней | 14148 ₽ | |
| 16 | 02122-0630B |
Screw Suzuki Moto |
2 | 45-55 дней | 244 ₽ | |
| 17 | 95700-14810 |
Lock assy, seat Suzuki Moto |
1 | 45-55 дней | 12904 ₽ | |
| 18 | 45289-11F00 |
Plate, seat lock Suzuki Moto |
1 | 45-55 дней | 745 ₽ | |
| 19 | 45280-24F00 |
Cable, seat lock Suzuki Moto |
1 | 45-55 дней | 1710 ₽ | |
| 20 | 45288-14F00 |
Guide, cable Suzuki Moto |
1 | 45-55 дней | 644 ₽ | |
| 21-2 | 45550-24F00-Y9K | Box, seat tail (brown) model x for m9s | 1 | Узнать цены | ||
| 21-3 | 45550-24F00-YC6 | Box, seat tail (red) model y e3 for cn4 | 1 | Узнать цены | ||
| 21-4 | 45550-24F10-1LF | Box, seat tail (blue) model y e3 for cn5 | 1 | Узнать цены | ||
| 21-5 | 45550-24F00-Y7L | Box, seat tail (black) model y e28 for m9t | 1 | Узнать цены | ||
| 21-6 | 45550-24F10-1LF | Box, seat tail (blue) model y e28 for cn5 | 1 | Узнать цены | ||
| 21-1 | 45550-24F00-Y7L | Box, seat tail (black) model x for m9t | 1 | Узнать цены | ||
| 22 | 45213-31300 |
.cushion Suzuki Moto |
2 | 45-55 дней | 318 ₽ | |
| 23 | 46211-24F01-35W |
Handle, pillion rider (gray) Suzuki Moto |
1 | 45-55 дней | 33782 ₽ | |
| 24 | 01550-0830A |
Bolt (8x30) Suzuki Moto |
4 | 45-55 дней | 365 ₽ | |
| 25-1 | 46212-24F11 |
Hook, handle model x Suzuki Moto |
2 | 45-55 дней | 3892 ₽ | |
| 25-2 | 46212-24F11 |
Hook, handle model y Suzuki Moto |
2 | 45-55 дней | 3892 ₽ | |
| 26 | 09250-05009 |
Cap Suzuki Moto |
2 | 45-55 дней | 240 ₽ |
