| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |

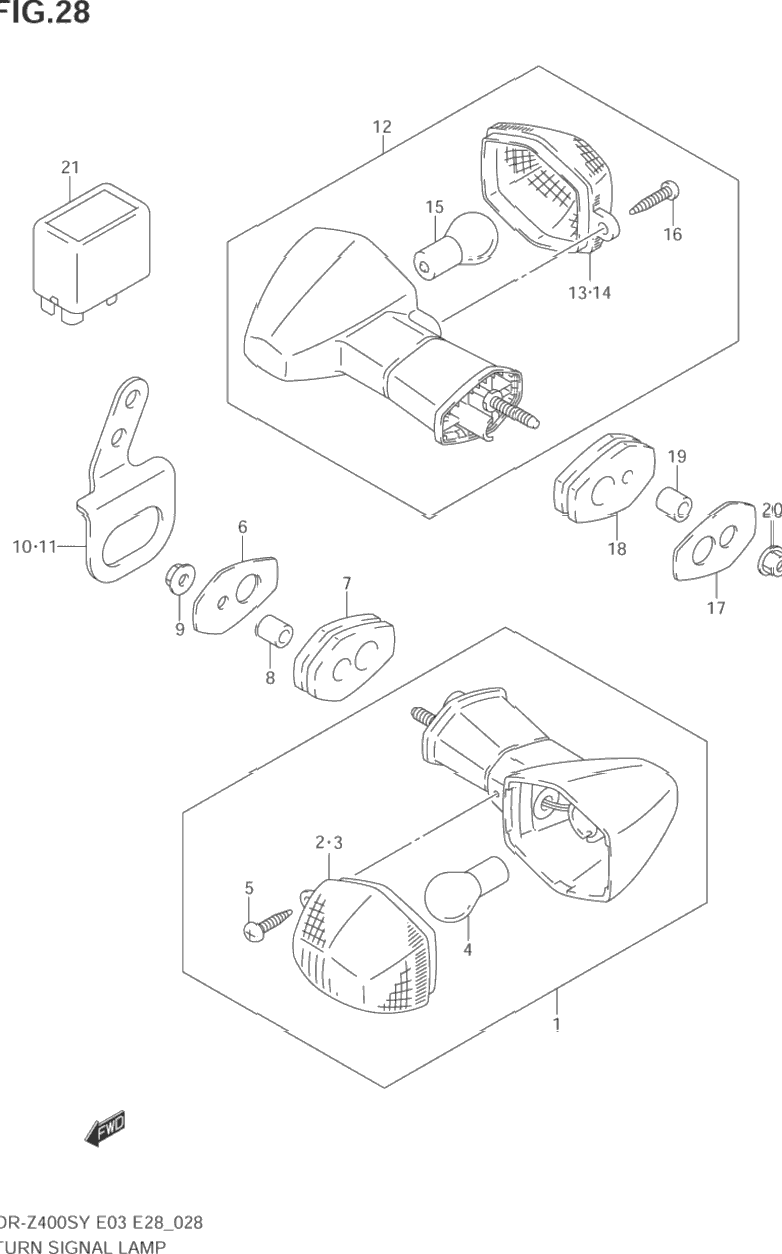

| -- | Refer to fig.28a(g-10) for | 1 | 0 ₽ | |||
| 1-2 | 35602-31F30 |
Lamp assy, front turn lh Suzuki Moto |
1 | 45-55 дней | 8404 ₽ | |
| 1-1 | 35601-31F30 |
Lamp assy, front turn rh Suzuki Moto |
1 | 45-55 дней | 8470 ₽ | |
| 2 | 35612-31F30 |
.lens, rh Suzuki Moto |
1 | 45-55 дней | 1421 ₽ | |
| 3 | 35632-31F30 |
.lens, lh Suzuki Moto |
1 | 45-55 дней | 1468 ₽ | |
| 4 | 09471-12045 |
.bulb (12v,21w) Suzuki Moto |
2 | 45-55 дней | 394 ₽ | |
| 5 | 03242-0416B |
.screw Suzuki Moto |
2 | 45-55 дней | 300 ₽ | |
| 6 | 35629-31F00 |
Plate, front turn Suzuki Moto |
2 | 45-55 дней | 453 ₽ | |
| 7 | 35690-31F00 |
Cushion Suzuki Moto |
2 | 45-55 дней | 620 ₽ | |
| 8 | 09180-05301 |
Spacer (5.5x9.5x10) Suzuki Moto |
2 | 45-55 дней | 276 ₽ | |
| 9 | 08316-1005A |
Nut Suzuki Moto |
2 | 45-55 дней | 259 ₽ | |
| 10 | 35671-29F00 |
Bracket, front rh Suzuki Moto |
1 | 45-55 дней | 769 ₽ | |
| 11 | 35681-29F00 |
Bracket, front lh Suzuki Moto |
1 | 45-55 дней | 769 ₽ | |
| 12-2 | 35604-31F60 | Lamp assy, rear turn lh | 1 | Узнать цены | ||
| 12-1 | 35603-31F60 |
Lamp assy, rear turn rh Suzuki Moto |
1 | 45-55 дней | 8185 ₽ | |
| 13 | 35632-31F30 |
.lens, rh Suzuki Moto |
1 | 45-55 дней | 1468 ₽ | |
| 14 | 35612-31F30 |
.lens, lh Suzuki Moto |
1 | 45-55 дней | 1421 ₽ | |
| 15 | 09471-12045 |
.bulb (12v,21w) Suzuki Moto |
2 | 45-55 дней | 394 ₽ | |
| 16 | 03242-0416B |
.screw Suzuki Moto |
2 | 45-55 дней | 300 ₽ | |
| 17 | 35629-31F00 |
Plate, rear turn Suzuki Moto |
2 | 45-55 дней | 453 ₽ | |
| 18 | 35690-31F00 |
Cushion Suzuki Moto |
2 | 45-55 дней | 620 ₽ | |
| 19 | 09180-05301 |
Spacer (5.5x9.5x10) Suzuki Moto |
2 | 45-55 дней | 276 ₽ | |
| 20 | 08316-1005A |
Nut Suzuki Moto |
2 | 45-55 дней | 259 ₽ | |
| 21 | 38610-03F00 |
Relay assy, turnsignal Suzuki Moto |
1 | 45-55 дней | 10475 ₽ |
