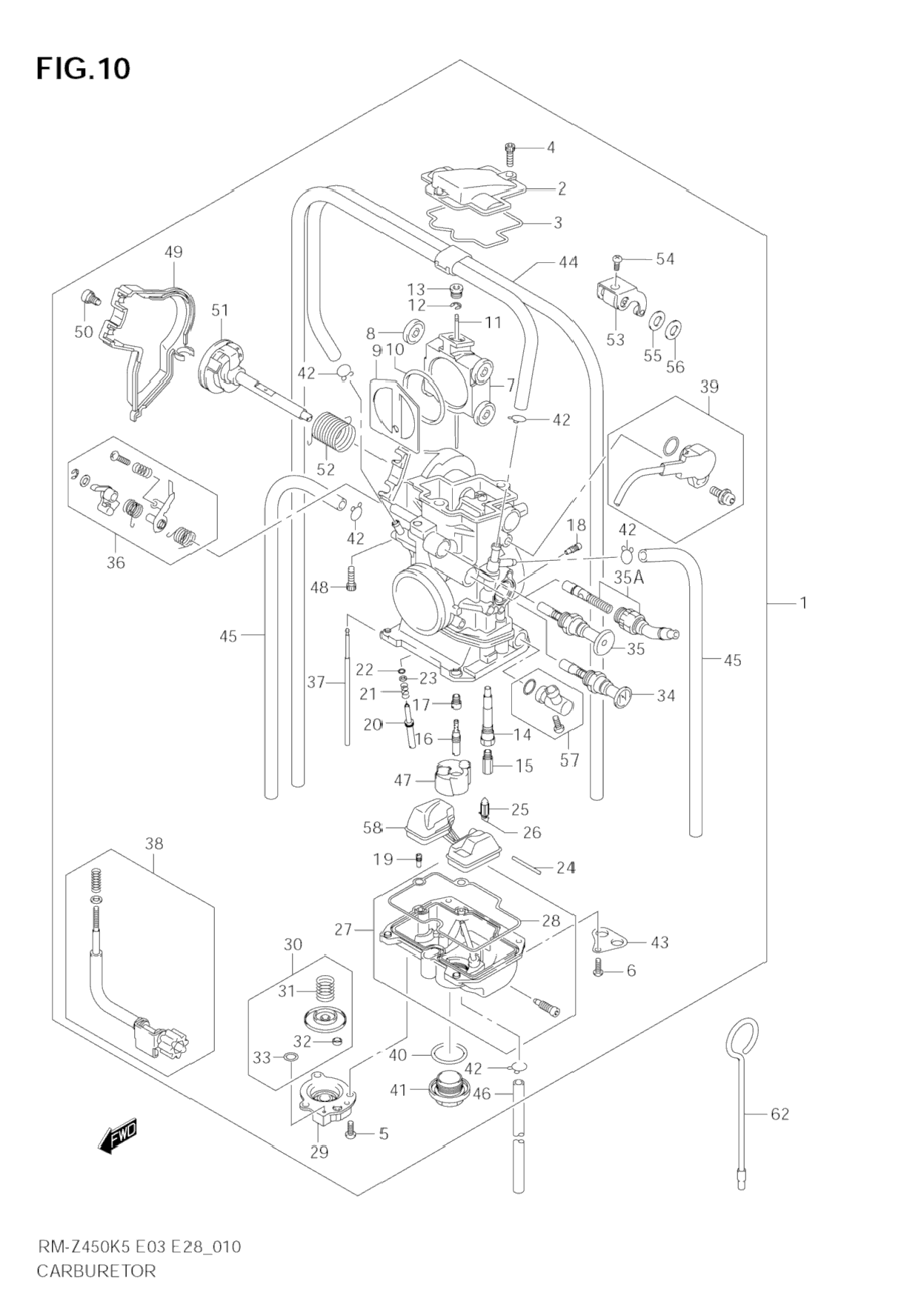

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1-1 | 13200-35G00 | Carburetor assy model k5 e3 | 1 | Узнать цены | ||
| 1-2 | 13200-35G10 | Carburetor assy model k5 e28 | 1 | Узнать цены | ||
| 1-3 | 13200-35G20 | Carburetor assy model k6 e3 | 1 | Узнать цены | ||
| 1-4 | 13200-35G30 | Carburetor assy model k6 e28 | 1 | Узнать цены | ||
| 1-5 | 13200-35G40 | Carburetor assy model k7 e3 | 1 | Узнать цены | ||
| 1-6 | 13200-35G50 | Carburetor assy model k7 e28 | 1 | Узнать цены | ||
| 2 | 13261-35G00 | .top | 1 | Узнать цены | ||
| 3 | 13266-35G00 |
.o ring Suzuki Moto |
1 | 45-55 дней | 2763 ₽ | |
| 4 | 13612-29F10 |
.bolt Suzuki Moto |
2 | 45-55 дней | 723 ₽ | |
| 5 | 13602-43E00 |
.screw Suzuki Moto |
3 | 45-55 дней | 411 ₽ | |
| 6 | 13602-35G00 |
.screw Suzuki Moto |
4 | 45-55 дней | 411 ₽ | |
| 7 | 13551-35G10 | .throttle valve | 1 | Узнать цены | ||
| 8 | 13570-29F00 |
.bearing Suzuki Moto |
1 | 45-55 дней | 1547 ₽ | |
| 9 | 13555-35G00 |
.floating valve Suzuki Moto |
1 | 45-55 дней | 36318 ₽ | |
| 10 | 13559-29F00 |
.lip seal Suzuki Moto |
1 | 45-55 дней | 2725 ₽ | |
| 11-1 | 13383-35G40 |
.needle, jet (ncyr) model k5/k6 Suzuki Moto |
1 | 45-55 дней | 2611 ₽ | |
| 11-2 | 13383-35GE0 | .needle, jet (nkyt) model k7 | 1 | Узнать цены | ||
| 12 | 13394-29F00 |
.bar clip Suzuki Moto |
1 | 45-55 дней | 650 ₽ | |
| 13 | 13600-35G00 | .screw set, jet needle | 1 | Узнать цены | ||
| 14 | 13342-35G10 |
.main, nozzle Suzuki Moto |
1 | 45-55 дней | 6513 ₽ | |
| 15-1 | 09491-33009 |
.jet, main, 165 model k5 e3 Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 15-2 | 09491-34010 |
.jet, main, 170 model k5 e28 Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 15-4 | 09491-35009 |
.jet, main, 175 model k6/k7 e28 Suzuki Moto |
1 | 45-55 дней | 2030 ₽ | |
| 15-3 | 09491-34010 |
.jet, main, 170 model k6/k7 e3 Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 16 | 09492-42019 |
.jet, slow, 42 Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 17 | 09492-35G00 |
.jet, starter Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 18 | 09492-35G10 |
.jet, slow air Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 19 | 09492-35G30 |
.jet, acc Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 20 | 13279-29F00 |
.screw, adjust Suzuki Moto |
1 | 45-55 дней | 1284 ₽ | |
| 21 | 13271-29F00 |
.spring Suzuki Moto |
1 | 45-55 дней | 509 ₽ | |
| 22 | 13295-26E00 |
.o ring Suzuki Moto |
1 | 45-55 дней | 586 ₽ | |
| 23 | 13291-26E00 |
.washer Suzuki Moto |
1 | 45-55 дней | 394 ₽ | |
| 24 | 13254-26E00 |
.pin, float Suzuki Moto |
1 | 45-55 дней | 509 ₽ | |
| 25 | 13370-29F00 |
.valve, float Suzuki Moto |
1 | 45-55 дней | 3418 ₽ | |
| 26 | 13375-26E00 |
.clip Suzuki Moto |
1 | 45-55 дней | 732 ₽ | |
| 27-1 | 13250-35G00 | .float chamber body set model k5/k6 | 1 | Узнать цены | ||
| 27-2 | 13250-35G10 | .float chamber body set model k7 | 1 | Узнать цены | ||
| 28 | 13251-35G00 |
..o ring Suzuki Moto |
1 | 45-55 дней | 2197 ₽ | |
| 29 | 13488-29F00 |
.cover Suzuki Moto |
1 | 45-55 дней | 3945 ₽ | |
| 30 | 13480-35G00 |
.diaphragm set Suzuki Moto |
1 | 45-55 дней | 7067 ₽ | |
| 31 | 13497-14F00 |
..spring Suzuki Moto |
1 | 45-55 дней | 381 ₽ | |
| 32 | 13494-15F00 |
..u ring Suzuki Moto |
1 | 45-55 дней | 499 ₽ | |
| 33 | 13673-26E10 |
..o ring Suzuki Moto |
1 | 45-55 дней | 553 ₽ | |
| 34-1 | 13410-35G00 | .starter valve model k5 | 1 | Узнать цены | ||
| 34-2 | 13410-35G20 |
.starter valve model k6/k7 Suzuki Moto |
1 | 45-55 дней | 4308 ₽ | |
| 35 | 13410-35G10 |
.starter valve model k5 Suzuki Moto |
1 | 45-55 дней | 4344 ₽ | |
| 35A | 13410-35G30 |
.starter valve model k6/k7 Suzuki Moto |
1 | 45-55 дней | 5084 ₽ | |
| 36-1 | 13490-35G00 | .lever set, pump model k5 | 1 | Узнать цены | ||
| 36-2 | 13490-35G10 |
.lever set, pump model k6/k7 Suzuki Moto |
1 | 45-55 дней | 11830 ₽ | |
| 37 | 13487-35G00 | .rod | 1 | Узнать цены | ||
| 38 | 13270-35G00 |
.screw set Suzuki Moto |
1 | 45-55 дней | 11921 ₽ | |
| 39 | 13580-35G00 |
.sensor set, throttle Suzuki Moto |
1 | 45-55 дней | 30878 ₽ | |
| 40 | 13246-28E00 |
.o ring Suzuki Moto |
1 | 45-55 дней | 696 ₽ | |
| 41 | 13247-28E00 |
.bolt, drain Suzuki Moto |
1 | 45-55 дней | 2956 ₽ | |
| 42 | 09401-06101 |
.clip Suzuki Moto |
5 | 45-55 дней | 269 ₽ | |
| 43 | 13693-36E00 |
.plate Suzuki Moto |
2 | 45-55 дней | 915 ₽ | |
| 44 | 13680-35G00 |
.pipe set, bowl vent Suzuki Moto |
1 | 45-55 дней | 7174 ₽ | |
| 45 | 13686-35G00 |
.pipe Suzuki Moto |
2 | 45-55 дней | 1577 ₽ | |
| 46 | 13684-35G00 |
.pipe Suzuki Moto |
1 | 45-55 дней | 1137 ₽ | |
| 47 | 13257-35G00 | .plate, buffer | 1 | Узнать цены | ||
| 48 | 13296-35G00 | .screw | 1 | Узнать цены | ||
| 49 | 13311-35G00 |
.cover Suzuki Moto |
1 | 45-55 дней | 3775 ₽ | |
| 50 | 13312-35G00 |
.bolt Suzuki Moto |
1 | 45-55 дней | 2166 ₽ | |
| 51 | 13550-35G01 | .throttle shaft | 1 | Узнать цены | ||
| 52 | 13573-35G00 |
.spring Suzuki Moto |
1 | 45-55 дней | 1751 ₽ | |
| 53 | 13564-35G00 | .link arm | 1 | Узнать цены | ||
| 54 | 13605-35G00 |
.screw Suzuki Moto |
1 | 45-55 дней | 687 ₽ | |
| 55 | 13572-29F00 |
.washer Suzuki Moto |
1 | 45-55 дней | 425 ₽ | |
| 56 | 13574-35G00 | .washer | 1 | Узнать цены | ||
| 57 | 13670-35G00 |
.joint set Suzuki Moto |
1 | 45-55 дней | 5996 ₽ | |
| 58 | 13240-35G00 |
.float Suzuki Moto |
1 | 45-55 дней | 8828 ₽ | |
| 59-1 | 09491-30018 |
Jet, main (150) opt not shown Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 59-2 | 09491-30019 |
Jet, main (152) opt not shown Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 59-3 | 09491-31012 |
Jet, main (155) opt not shown Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 59-4 | 09491-31013 |
Jet, main (158) opt not shown Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 59-5 | 09491-32010 |
Jet, main (160) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 59-6 | 09491-32011 |
Jet, main (162) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 59-8 | 09491-33010 |
Jet, main (168) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 59-10 | 09491-34011 |
Jet, main (172) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 59-12 | 09491-35010 |
Jet, main (178) opt not shown Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 59-13 | 09491-36008 |
Jet, main (180) opt not shown Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 59-14 | 09491-37008 | Jet, main (185) opt not shown | 1 | Узнать цены | ||
| 59-15 | 09491-38011 | Jet, main (190) opt not shown | 1 | Узнать цены | ||
| 59-7 | 09491-33009 |
Jet, main (165) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 59-9 | 09491-34010 |
Jet, main (170) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 59-11 | 09491-35009 |
Jet, main (175) opt not shown Suzuki Moto |
1 | 45-55 дней | 2030 ₽ | |
| 60-1 | 09492-35019 |
Jet, slow (35) opt not shown Suzuki Moto |
1 | 45-55 дней | 2030 ₽ | |
| 60-2 | 09492-40022 |
Jet, slow (40) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 60-4 | 09492-45032 |
Jet, slow (45) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 60-5 | 09492-48013 |
Jet, slow (48) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 60-6 | 09492-50023 |
Jet, slow (50) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 60-7 | 09492-52011 |
Jet, slow (52) opt not shown Suzuki Moto |
1 | 45-55 дней | 2030 ₽ | |
| 60-8 | 09492-55017 |
Jet, slow (55) opt not shown Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 60-9 | 09492-58001 |
Jet, slow (58) opt not shown Suzuki Moto |
1 | 45-55 дней | 2068 ₽ | |
| 60-10 | 09492-60016 | Jet, slow (60) opt not shown | 1 | Узнать цены | ||
| 60-3 | 09492-42019 |
Jet, slow (42) opt not shown Suzuki Moto |
1 | 45-55 дней | 1994 ₽ | |
| 61-1 | 13383-35G00 | Needle, jet (ncyp) opt not shown | 1 | Узнать цены | ||
| 61-2 | 13383-35G10 | Needle, jet (ncvp) opt not shown | 1 | Узнать цены | ||
| 61-3 | 13383-35G20 | Needle, jet (ncyq) opt not shown | 1 | Узнать цены | ||
| 61-4 | 13383-35G30 | Needle, jet (ncvq) opt not shown | 1 | Узнать цены | ||
| 61-6 | 13383-35G50 | Needle, jet (ncvr) opt not shown | 1 | Узнать цены | ||
| 61-7 | 13383-35G60 | Needle, jet (ncys) opt not shown | 1 | Узнать цены | ||
| 61-8 | 13383-35G70 | Needle, jet (ncvs) opt not shown | 1 | Узнать цены | ||
| 61-9 | 13383-35G80 | Needle, jet (ncyt) opt not shown | 1 | Узнать цены | ||
| 61-10 | 13383-35G90 | Needle, jet (ncvt) opt not shown | 1 | Узнать цены | ||
| 61-11 | 13383-35GA0 | Needle, jet (nkyr) opt not shown | 1 | Узнать цены | ||
| 61-12 | 13383-35GB0 | Needle, jet (nkzr) opt not shown | 1 | Узнать цены | ||
| 61-13 | 13383-35GC0 | Needle, jet (nkys) opt not shown | 1 | Узнать цены | ||
| 61-14 | 13383-35GD0 | Needle, jet (nkzs) opt not shown | 1 | Узнать цены | ||
| 61-16 | 13383-35GF0 | Needle, jet (nkzt) opt not shown | 1 | Узнать цены | ||
| 61-17 | 13383-35GG0 | Needle, jet (nkyu) opt not shown | 1 | Узнать цены | ||
| 61-18 | 13383-35GH0 | Needle, jet (nkzu) opt not shown | 1 | Узнать цены | ||
| 61-19 | 13383-35GJ0 | Needle, jet (nkyv) opt not shown | 1 | Узнать цены | ||
| 61-20 | 13383-35GK0 | Needle, jet (nkzv) opt not shown | 1 | Узнать цены | ||
| 61-5 | 13383-35G40 |
Needle, jet (ncyr) opt not shown Suzuki Moto |
1 | 45-55 дней | 2611 ₽ | |
| 61-15 | 13383-35GE0 | Needle, jet (nkyt) opt not shown | 1 | Узнать цены | ||
| 62 | 13220-35G00 |
Holder, jet needle opt Suzuki Moto |
1 | 45-55 дней | 742 ₽ |
