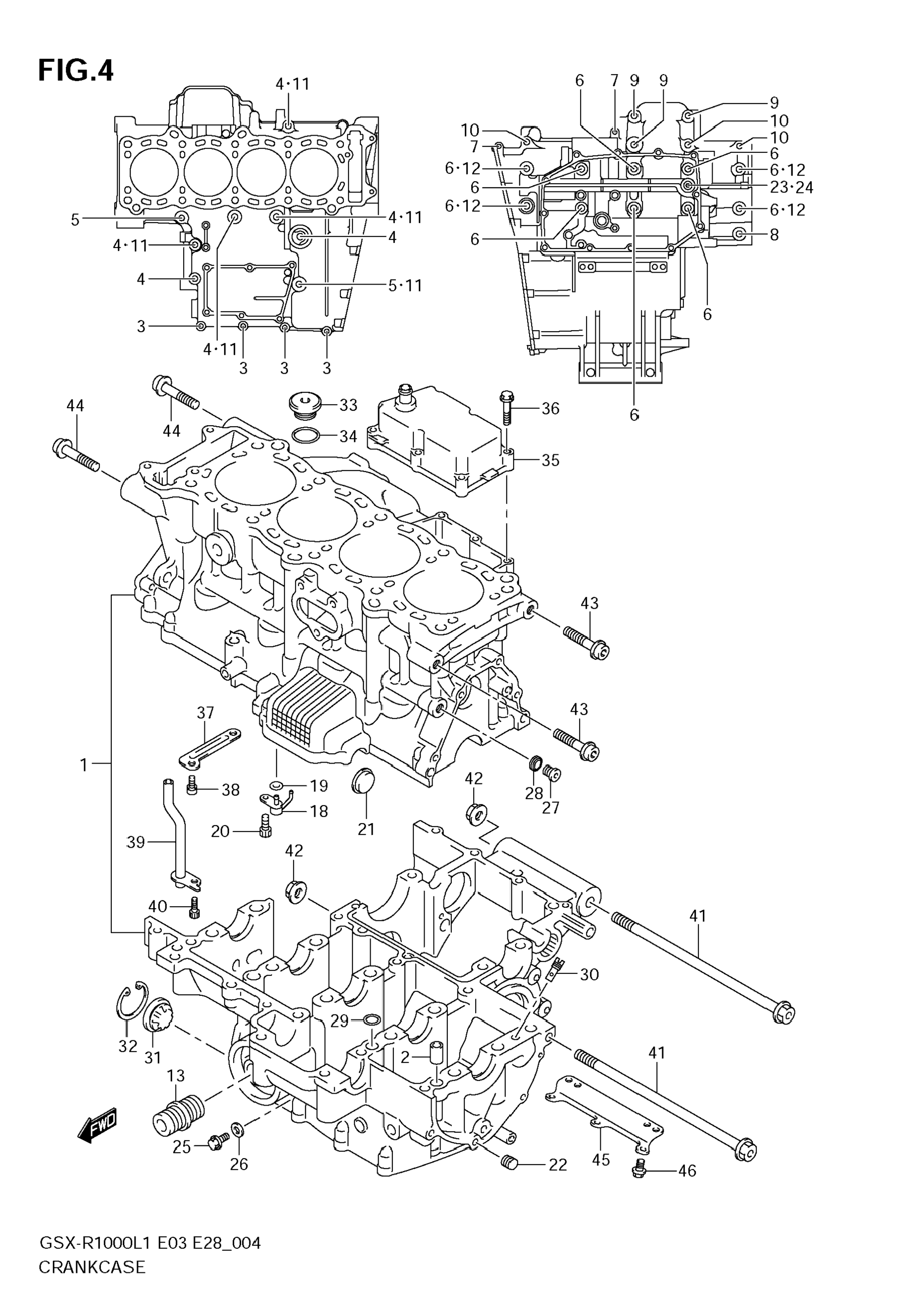

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 11300-47880 | Crankcase set | 1 | Узнать цены | ||
| 2 | 11319-33E50 |
.pin Suzuki Moto |
3 | 45-55 дней | 640 ₽ | |
| 3 | 01547-0635A |
.bolt Suzuki Moto |
4 | 45-55 дней | 275 ₽ | |
| 4 | 01550-0855A |
.bolt Suzuki Moto |
6 | 45-55 дней | 366 ₽ | |
| 5 | 01550-0865A |
.bolt Suzuki Moto |
2 | 45-55 дней | 421 ₽ | |
| 6 | 09103-09012 |
.bolt (9x95) Suzuki Moto |
10 | 45-55 дней | 1053 ₽ | |
| 7 | 01547-0645A |
.bolt Suzuki Moto |
2 | 45-55 дней | 286 ₽ | |
| 8 | 01550-0835A |
.bolt Suzuki Moto |
1 | 45-55 дней | 365 ₽ | |
| 9 | 01550-0855A |
.bolt Suzuki Moto |
3 | 45-55 дней | 366 ₽ | |
| 10 | 01550-0865A |
.bolt Suzuki Moto |
3 | 45-55 дней | 421 ₽ | |
| 11 | 09168-08016 |
.gasket (8.2x14x1) Suzuki Moto |
4 | 45-55 дней | 196 ₽ | |
| 12 | 09168-10031 |
.gasket (10.2x20x2.3) Suzuki Moto |
4 | 45-55 дней | 240 ₽ | |
| 13 | 16591-06B01 |
.union, oil filter stand Suzuki Moto |
1 | 45-55 дней | 847 ₽ | |
| 14 | 09280-00045 |
.o ring (d:3,id:102) not illustrated Suzuki Moto |
1 | 45-55 дней | 4951 ₽ | |
| 15 | 09139-06151 |
.bolt (6x20) not illustrated Suzuki Moto |
6 | 45-55 дней | 410 ₽ | |
| 16 | 12228-48B00-0E0 |
.bearing, thrust rh (green) see illus on fig.7 Suzuki Moto |
1 | 45-55 дней | 1123 ₽ | |
| 17-1 | 12228-48B00-0B0 |
.bearing, thrust lh (brown) see illus on fig.7 Suzuki Moto |
1 | 45-55 дней | 1182 ₽ | |
| 17-2 | 12228-48B00-0C0 |
.bearing, thrust lh (red) see illus on fig.7 Suzuki Moto |
1 | 45-55 дней | 1160 ₽ | |
| 17-3 | 12228-48B00-0D0 |
.bearing, thrust lh (yellow) see illus on fig.7 Suzuki Moto |
1 | 45-55 дней | 1205 ₽ | |
| 17-5 | 12228-48B00-0F0 |
.bearing, thrust lh (blue) see illus on fig.7 Suzuki Moto |
1 | 45-55 дней | 1205 ₽ | |
| 17-6 | 12228-48B00-0G0 |
.bearing, thrust lh (orange) see illus on fig.7 Suzuki Moto |
1 | 45-55 дней | 1205 ₽ | |
| 17-7 | 12228-48B00-0H0 |
.bearing, thrust lh (black) see illus on fig.7 Suzuki Moto |
1 | 45-55 дней | 1160 ₽ | |
| 17-4 | 12228-48B00-0E0 |
.bearing, thrust lh (green) see illus on fig.7 Suzuki Moto |
1 | 45-55 дней | 1123 ₽ | |
| 18 | 11390-21H00 |
Jet, piston cooling Suzuki Moto |
4 | 45-55 дней | 4415 ₽ | |
| 18 | 11390-21H01 |
Jet, piston cooling Suzuki Moto |
4 | 45-55 дней | 4415 ₽ | |
| 19 | 09280-04004 |
O ring (d:1.2,id:4) Suzuki Moto |
4 | 45-55 дней | 196 ₽ | |
| 20 | 09106-06075 |
Bolt (6x12) Suzuki Moto |
4 | 45-55 дней | 293 ₽ | |
| 21 | 09241-23005 |
Plug Suzuki Moto |
1 | 45-55 дней | 1271 ₽ | |
| 22 | 09246-05006 |
Plug Suzuki Moto |
1 | 45-55 дней | 435 ₽ | |
| 23 | 09248-12004 |
Plug Suzuki Moto |
1 | 45-55 дней | 813 ₽ | |
| 24 | 09168-12002 |
Gasket (12.1x16.2x3.7) Suzuki Moto |
1 | 45-55 дней | 189 ₽ | |
| 25 | 01547-0612A |
Plug, oil gallery Suzuki Moto |
1 | 45-55 дней | 240 ₽ | |
| 26 | 09168-06018 |
Gasket (6.2x13x1.2) Suzuki Moto |
1 | 45-55 дней | 196 ₽ | |
| 27 | 09248-10010 |
Plug Suzuki Moto |
1 | 45-55 дней | 501 ₽ | |
| 28 | 09168-10002 |
Gasket (10x14x3.6) Suzuki Moto |
1 | 45-55 дней | 219 ₽ | |
| 29 | 09280-08012 |
O ring (d:1.9,id:7.8) Suzuki Moto |
1 | 45-55 дней | 442 ₽ | |
| 30 | 09493-28012 |
Jet Suzuki Moto |
1 | 45-55 дней | 1725 ₽ | |
| 31 | 11971-33210 |
Lens, oil level Suzuki Moto |
1 | 45-55 дней | 2188 ₽ | |
| 32 | 08331-4130A |
Circlip Suzuki Moto |
1 | 45-55 дней | 276 ₽ | |
| 33 | 09259-26011 |
Plug Suzuki Moto |
1 | 45-55 дней | 1325 ₽ | |
| 34 | 09280-22008 |
O ring (d:3.1,id:22.7) Suzuki Moto |
1 | 45-55 дней | 233 ₽ | |
| 35 | 11380-47H00 |
Cover, breather Suzuki Moto |
1 | 45-55 дней | 14600 ₽ | |
| 36 | 01547-0630A |
Bolt Suzuki Moto |
6 | 45-55 дней | 275 ₽ | |
| 37 | 11382-47H00 | Plate, breather oil return | 1 | Узнать цены | ||
| 38 | 09106-06075 |
Bolt (6x12) Suzuki Moto |
1 | 45-55 дней | 293 ₽ | |
| 39 | 11383-47H00 | Pipe, breather oil return | 1 | Узнать цены | ||
| 40 | 07130-0612A |
Bolt Suzuki Moto |
1 | 45-55 дней | 296 ₽ | |
| 41 | 09103-12110 |
Bolt (12x220) Suzuki Moto |
2 | 45-55 дней | 2851 ₽ | |
| 42 | 09159-12054 |
Nut Suzuki Moto |
2 | 45-55 дней | 893 ₽ | |
| 43 | 09106-10089 |
Bolt (10x45) Suzuki Moto |
2 | 45-55 дней | 1546 ₽ | |
| 44 | 09106-10090 |
Bolt (10x55) Suzuki Moto |
2 | 45-55 дней | 1912 ₽ | |
| 45 | 11322-47H00 | Plate, lower | 1 | Узнать цены | ||
| 46 | 09103-06188 |
Bolt (6x10) Suzuki Moto |
4 | 45-55 дней | 296 ₽ |
