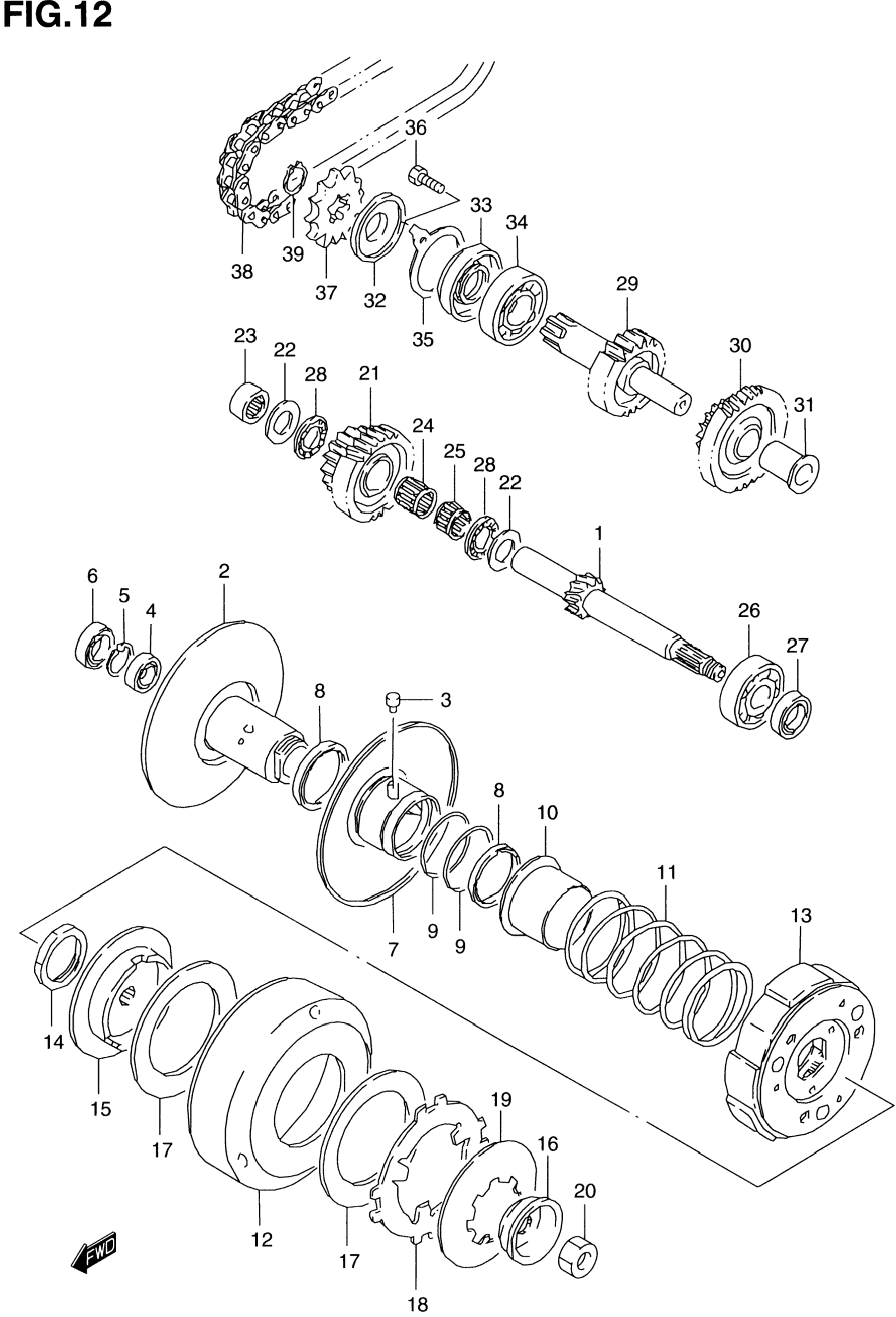

№ | Номер запчасти, наличие, срок поставки |
Наименование | Кол-во | Цена |
1 | 24131-29A03 / 25-45 дней | Counter shaft (nt:12) | 1 | 11 164 р. |
2 | 21210-03A21 / 25-45 дней | Face, fixed driven | 1 | 10 784 р. |
3 | 09201-06005 / 25-45 дней | Pin | 3 | 218 р. |
4 | 09262-12014 / 25-45 дней | Bearing (12x24x6) | 1 | 3 636 р. |
5 | 08331-41249 / 25-45 дней | Circlip | 1 | 241 р. |
6 | 09262-15018 / 25-45 дней | Bearing (15x28x7) | 1 | 3 636 р. |
7 | 21240-40B00 / 25-45 дней | Face, movable driven | 1 | 8 644 р. |
8 | 09283-34007 / 25-45 дней | Oil seal (34x41x4) | 2 | 733 р. |
9 | 09280-41005 / 25-45 дней | O ring | 2 | 248 р. |
10 | 21471-03A11 / 25-45 дней | Sleeve, movable driven face | 1 | 614 р. |
11 | 09440-46005 / 25-45 дней | Spring | 1 | 1 112 р. |
12 | 21220-29A01 / 25-45 дней | Housing, clutch | 1 | 9 103 р. |
13 | 21501-03A21 / 25-45 дней | Clutch assy | 1 | 17 298 р. |
14 | 09152-28001 / 25-45 дней | Nut | 1 | 981 р. |
15 | 21411-29A01 / 25-45 дней | Hub, limiter clutch | 1 | 4 840 р. |
16 | 21412-29A00 / 25-45 дней | Stopper, limiter clutch | 1 | 988 р. |
17 | 21441-29A01 / 25-45 дней | Plate, friction | 2 | 2 034 р. |
18 | 21461-29A01 / 25-45 дней | Plate, pressure | 1 | 677 р. |
19 | 09164-30003 / 25-45 дней | Spring | 1 | 1 274 р. |
20 | 09140-10035 / 25-45 дней | Nut | 1 | 338 р. |
21 | 24271-40B01 / 25-45 дней | Gear, final drive (nt:27/14) | 1 | 16 182 р. |
22 | 09181-15223 / 25-45 дней | Thrust washer (15x28x1) | 2 | 270 р. |
23 | 09263-15009 / 25-45 дней | Bearing, cntr shaft,r 15x22x15 | 1 | 1 390 р. |
24 | 09263-15035 / 25-45 дней | Bearing, final drive,r 15x20x18 | 1 | 1 580 р. |
25 | 09263-15038 / 25-45 дней | Bearing, final drive,l 15x20x13 | 1 | 1 672 р. |
26 | 09262-15027 / 25-45 дней | Bearing, cntr shaft,l 15x42x13 | 1 | 2 554 р. |
27 | 09283-15003 / 25-45 дней | Oil seal, cntr, l oil 15x25x5 | 1 | 571 р. |
28 | 09263-15003 / 25-45 дней | Bearing, final drive,r 15x28x2 | 2 | 905 р. |
29 | 24141-40B00 / 25-45 дней | Shaft, drive (nt:19) | 1 | 18 340 р. |
30-1 | 24290-29A01 / 25-45 дней | Gear, idler drive no.2 model t/v/w/x/y | 1 | 16 182 р. |
30-2 | 24290-29A01 / 25-45 дней | Gear, idler drive no.2 model k1,nt:33/14 | 1 | 16 182 р. |
31 | 09301-15002 / 25-45 дней | Bush | 1 | 2 173 р. |
32 | 24142-40B00 / 25-45 дней | Oil seal | 1 | 972 р. |
33 | 09283-20047 / 25-45 дней | Oil seal (20x47x12) | 1 | 1 384 р. |
34-1 | 09262-20069 / 25-45 дней | Bearing (20x47x14) model t/v/w | 1 | 2 554 р. |
34-2 | 09262-20069 / 25-45 дней | Bearing (20x47x14) model x/y/k1 | 1 | 2 554 р. |
35 | 24751-40B00 | Retainer | 1 | Узнать цены |
36 | 01500-0616A / 25-45 дней | Screw | 2 | 191 р. |
37 | 27511-40B10 / 25-45 дней | Sprocket, engine (nt:10) | 1 | 2 084 р. |
38 | 27600-34A40-036 / 25-45 дней | Chain assy (rk 520smx36le) | 1 | 6 242 р. |
39 | 09380-20009 / 25-45 дней | Circlip | 1 | 203 р. |
