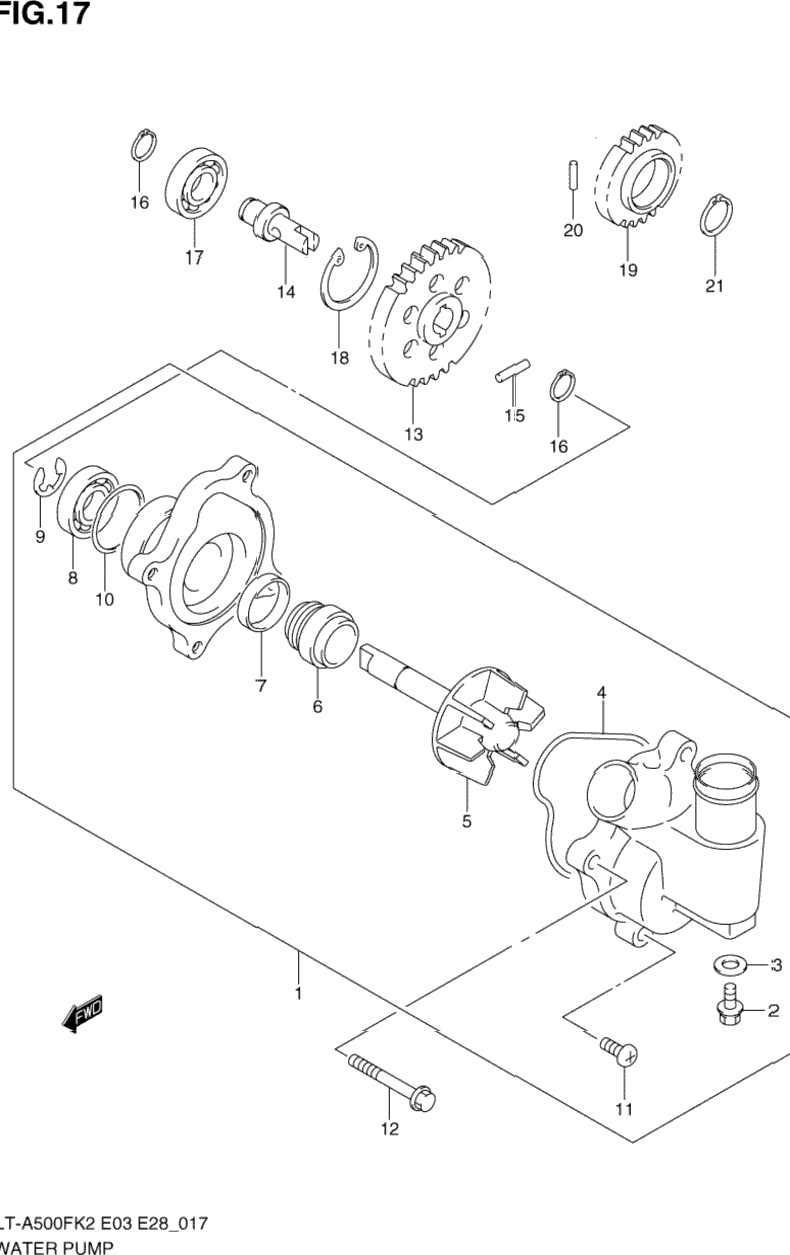

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 17400-09F50 |
Pump assy, water Suzuki Moto |
1 | 45-55 дней | 32521 ₽ | |
| 2 | 17415-14300 |
.bolt Suzuki Moto |
1 | 45-55 дней | 381 ₽ | |
| 3 | 09168-08016 |
.gasket Suzuki Moto |
1 | 45-55 дней | 208 ₽ | |
| 4 | 17418-09F50 |
.o ring Suzuki Moto |
1 | 45-55 дней | 1053 ₽ | |
| 5 | 17491-09F50 |
.impeller/shaft Suzuki Moto |
1 | 45-55 дней | 6121 ₽ | |
| 6 | 17470-02F00 |
.seal, mechanical Suzuki Moto |
1 | 45-55 дней | 3726 ₽ | |
| 7 | 09283-10004 |
.oil seal (10x21x5) Suzuki Moto |
1 | 45-55 дней | 631 ₽ | |
| 8 | 09262-10014 |
.bearing Suzuki Moto |
1 | 45-55 дней | 2041 ₽ | |
| 9 | 08332-1108A |
.e ring Suzuki Moto |
1 | 45-55 дней | 225 ₽ | |
| 10 | 17435-33400 |
.o ring Suzuki Moto |
1 | 45-55 дней | 1950 ₽ | |
| 11 | 02112-0616A |
.screw Suzuki Moto |
2 | 45-55 дней | 181 ₽ | |
| 12 | 01547-0665B |
Bolt Suzuki Moto |
2 | 45-55 дней | 405 ₽ | |
| 13 | 16331-02F00 |
Gear, driven Suzuki Moto |
1 | 45-55 дней | 7524 ₽ | |
| 14 | 17521-09F50 | Shaft, driven gear | 1 | Узнать цены | ||
| 15 | 09261-04009 |
Pin, driven gear Suzuki Moto |
1 | 45-55 дней | 181 ₽ | |
| 16 | 08331-31109 |
Circlip, driven gear Suzuki Moto |
2 | 45-55 дней | 225 ₽ | |
| 17 | 08110-62000 |
Bearing, shaft Suzuki Moto |
1 | 45-55 дней | 1575 ₽ | |
| 18 | 08331-41309 |
Circlip, shaft bearing Suzuki Moto |
1 | 45-55 дней | 308 ₽ | |
| 19 | 16321-44D01 | Gear, water pump drive | 1 | Узнать цены | ||
| 20 | 04221-04069 |
Pin, drive gear Suzuki Moto |
1 | 45-55 дней | 229 ₽ | |
| 21 | 08331-31229 |
Circlip, drive gear Suzuki Moto |
1 | 45-55 дней | 269 ₽ |
