| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |

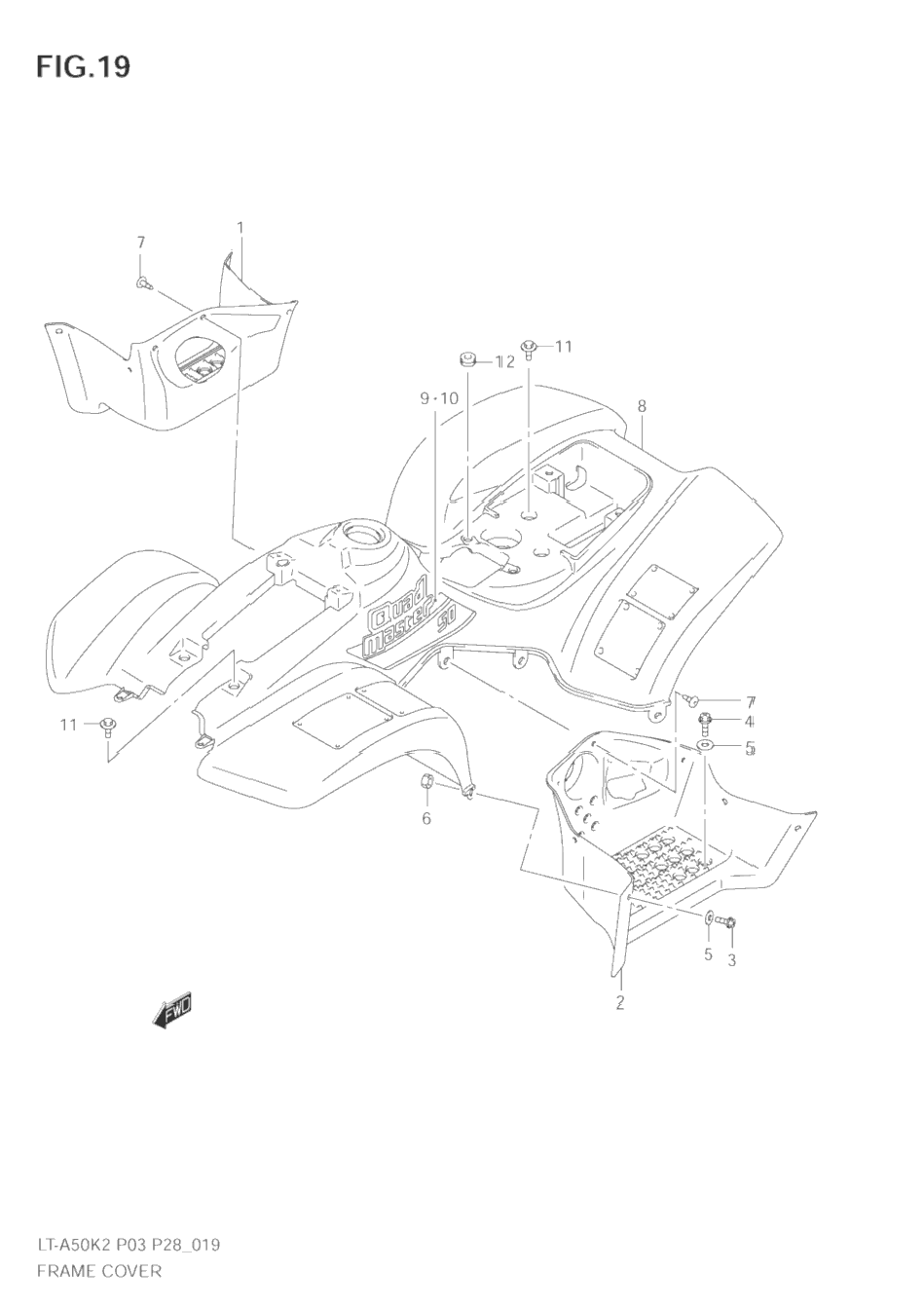

| -- | Refer to fig.19a(d-7) for | 1 | 0 ₽ | |||
| 1 | 47111-43F00-291 |
Cover, frame rh (black) Suzuki Moto |
1 | 45-55 дней | 9461 ₽ | |
| 2 | 47211-43F00-291 |
Cover, frame lh (black) Suzuki Moto |
1 | 45-55 дней | 9461 ₽ | |
| 3 | 02142-1616B |
Screw Suzuki Moto |
4 | 45-55 дней | 236 ₽ | |
| 4 | 02162-0616B |
Bolt Suzuki Moto |
4 | 45-55 дней | 240 ₽ | |
| 5 | 09160-06052 |
Washer Suzuki Moto |
8 | 45-55 дней | 171 ₽ | |
| 6 | 08319-3106A |
Nut Suzuki Moto |
4 | 45-55 дней | 240 ₽ | |
| 7 | 09409-06314-5PK |
Clip (black) Suzuki Moto |
10 | 45-55 дней | 318 ₽ | |
| 8-1 | 47311-43F02-YT9 |
Cover, frame center (red) Suzuki Moto |
1 | 45-55 дней | 46517 ₽ | |
| 8-2 | 47311-43F02-YU1 |
Cover, frame center (yellow) Suzuki Moto |
1 | 45-55 дней | 46517 ₽ | |
| 9-1 | 68131-43F00-GB4 | Emblem, rh for yt9 | 1 | Узнать цены | ||
| 9-2 | 68131-43F00-GB5 | Emblem, rh for yu1 | 1 | Узнать цены | ||
| 10-1 | 68141-43F00-GB4 | Emblem, lh for yt9 | 1 | Узнать цены | ||
| 10-2 | 68141-43F00-GB5 | Emblem, lh for yu1 | 1 | Узнать цены | ||
| 11 | 09111-06081 |
Bolt, center Suzuki Moto |
3 | 45-55 дней | 491 ₽ | |
| 12 | 09320-12031 |
Cushion Suzuki Moto |
2 | 45-55 дней | 276 ₽ |
