| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |

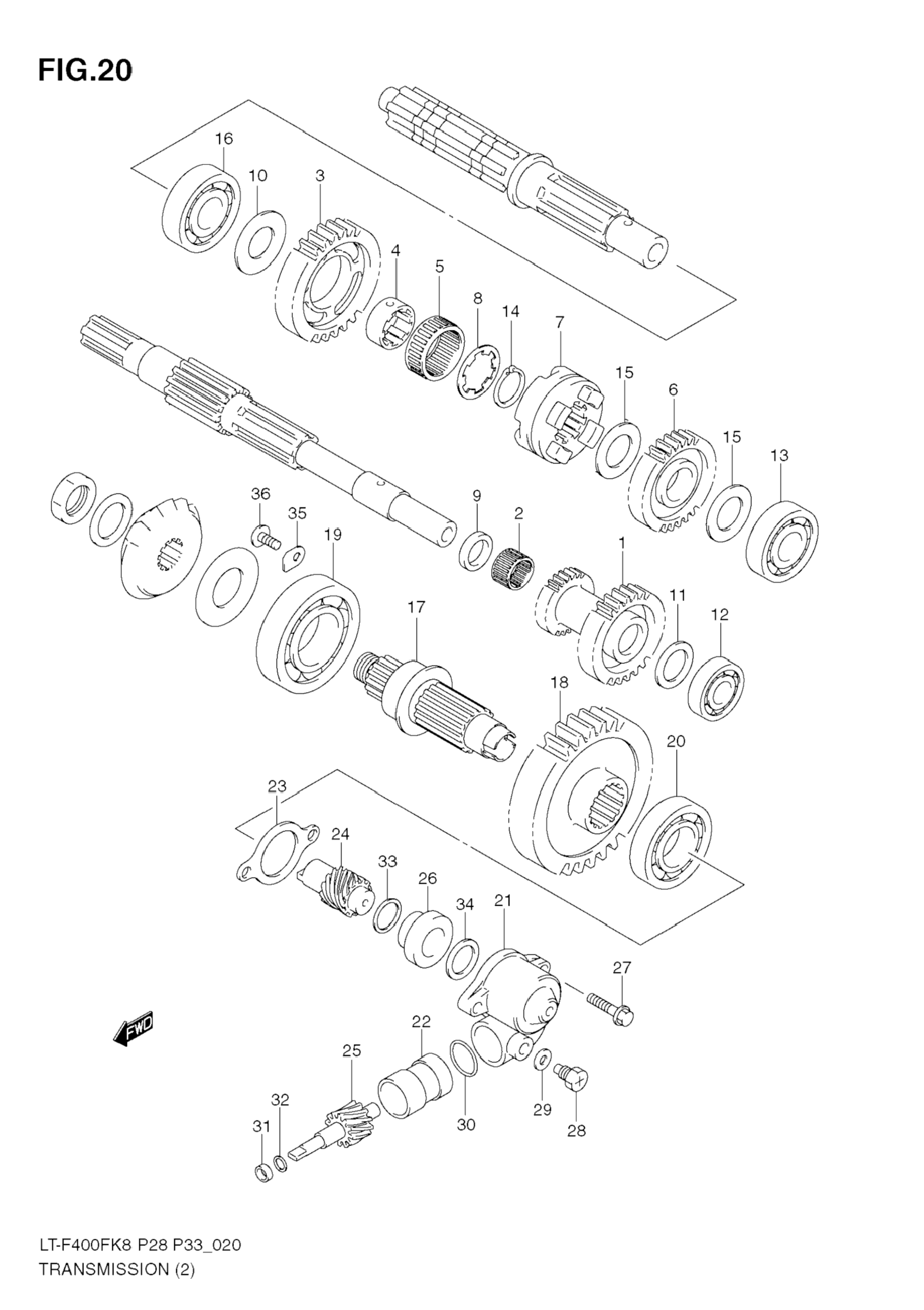

| -- | Refer to fig.20a(d- 7) for | 1 | 0 ₽ | |||
| 1 | 29150-38F80 |
Gear, sub t/m idle nt:19/13 Suzuki Moto |
1 | 45-55 дней | 19352 ₽ | |
| 2 | 09263-17001 |
Bearing, sub t/m idle gear, r 17x21x12.8 Suzuki Moto |
1 | 45-55 дней | 2230 ₽ | |
| 3 | 29211-38F80 |
Gear, sub t/m drive no.1 nt:27 Suzuki Moto |
1 | 45-55 дней | 17484 ₽ | |
| 4 | 29215-38F80 |
Bush, sub drive no.1 Suzuki Moto |
1 | 45-55 дней | 3351 ₽ | |
| 5 | 09263-30056 |
Bearing, sub t/m drive no.1 30x35x16 Suzuki Moto |
1 | 45-55 дней | 3494 ₽ | |
| 6 | 29220-38F50 |
Gear, sub t/m drive no.2 nt:21 Suzuki Moto |
1 | 45-55 дней | 13160 ₽ | |
| 7 | 29231-38F80 | Dog, sub t/m sliding | 1 | Узнать цены | ||
| 8 | 09167-25017 |
Washer, sub t/m drive, l Suzuki Moto |
1 | 45-55 дней | 396 ₽ | |
| 9 | 09180-17076 |
Washer, sub t/m idle, r 17x24x4.5 Suzuki Moto |
1 | 45-55 дней | 980 ₽ | |
| 10 | 09181-25251 |
Washer, sub t/m drive 25x40x1 Suzuki Moto |
1 | 45-55 дней | 396 ₽ | |
| 11 | 09181-15195 |
Washer, sub t/m idle, lh 15x26x1.0 Suzuki Moto |
1 | 45-55 дней | 304 ₽ | |
| 12 | 09262-15022 |
Bearing, cntr, lh 15x42x13.0 Suzuki Moto |
1 | 45-55 дней | 1871 ₽ | |
| 13 | 09262-20139 |
Bearing, drive shaft, lh 20x47x14.0 Suzuki Moto |
1 | 45-55 дней | 4597 ₽ | |
| 14 | 09380-25003 |
Circlip, dr no.1 Suzuki Moto |
1 | 45-55 дней | 365 ₽ | |
| 15 | 08211-20301 |
Washer, dr no.2 rh/lh Suzuki Moto |
2 | 45-55 дней | 278 ₽ | |
| 16 | 09262-25124 |
Bearing, middle (25x52x14) Suzuki Moto |
1 | 45-55 дней | 4516 ₽ | |
| 17 | 29121-38F51 |
Shaft, sub t/m output Suzuki Moto |
1 | 45-55 дней | 15053 ₽ | |
| 18 | 29311-38F51 | Gear, sub t/m driven nt:35 | 1 | Узнать цены | ||
| 19 | 09262-35038 |
Bearing, sub t/m, rh 35x72x17.0 Suzuki Moto |
1 | 45-55 дней | 5543 ₽ | |
| 20 | 09262-20073 |
Bearing, sub t/m, lh 20x52x15.0 Suzuki Moto |
1 | 45-55 дней | 2799 ₽ | |
| 21 | 26441-19B01 |
Housing, odometer gear Suzuki Moto |
1 | 45-55 дней | 6491 ₽ | |
| 22 | 26442-19B00 |
Sleeve Suzuki Moto |
1 | 45-55 дней | 4123 ₽ | |
| 23 | 26451-19B12 |
Gasket, odometer Suzuki Moto |
1 | 45-55 дней | 565 ₽ | |
| 24 | 26461-44D00 | Gear, odometer drive | 1 | Узнать цены | ||
| 25 | 26471-44D00 | Gear, odometer driven | 1 | Узнать цены | ||
| 26 | 26481-19B00 | Spacer, odometer drive gear | 1 | Узнать цены | ||
| 27 | 09103-06201 |
Bolt, gear sleeve (6x20) Suzuki Moto |
2 | 45-55 дней | 303 ₽ | |
| 28 | 09135-06501 |
Bolt, gear (6x10) Suzuki Moto |
1 | 45-55 дней | 365 ₽ | |
| 29 | 09168-06004 |
Washer (6.2x11x1.2) Suzuki Moto |
1 | 45-55 дней | 171 ₽ | |
| 30 | 09280-17004 |
O ring (id:16.6,dd:1.9) Suzuki Moto |
1 | 45-55 дней | 374 ₽ | |
| 31 | 09283-05001 |
Seal, odometer (5x12x8) Suzuki Moto |
1 | 45-55 дней | 1184 ₽ | |
| 32 | 08211-08151 |
Washer Suzuki Moto |
1 | 45-55 дней | 244 ₽ | |
| 33 | 08211-15201 |
Washer Suzuki Moto |
1 | 45-55 дней | 244 ₽ | |
| 34 | 08211-17241 |
Washer Suzuki Moto |
1 | 45-55 дней | 276 ₽ | |
| 35 | 24741-21A00 |
Retainer, sec drive sft Suzuki Moto |
2 | 45-55 дней | 318 ₽ | |
| 36 | 09125-06110 |
Screw (6x12) Suzuki Moto |
2 | 45-55 дней | 251 ₽ |
