| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |

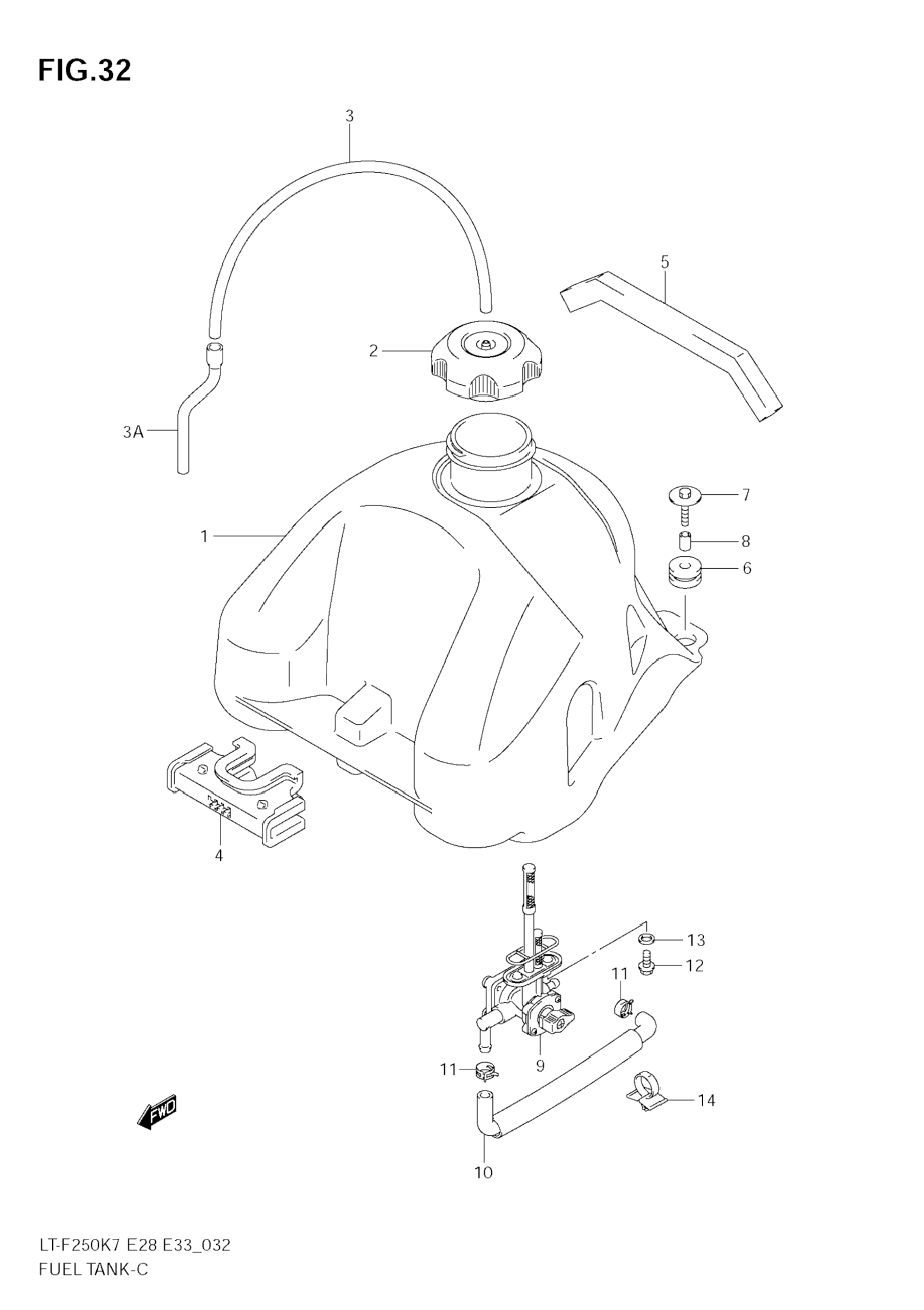

| -- | Refer to fig.32a(f- 7) for | 1 | 0 ₽ | |||
| 1-2 | 44100-05G10 | Tank assy, fuel model k8 | 1 | Узнать цены | ||
| 1-1 | 44100-05G02 |
Tank assy, fuel model k7 Suzuki Moto |
1 | 45-55 дней | 34110 ₽ | |
| 2 | 44200-29F00 |
Cap assy, fuel tank Suzuki Moto |
1 | 45-55 дней | 4610 ₽ | |
| 3 | 44420-44AR0 |
Hose, breather (l:600->290) Suzuki Moto |
1 | 45-55 дней | 1064 ₽ | |
| 3A | 44433-21G00 |
Hose, breather no.2 Suzuki Moto |
1 | 45-55 дней | 1334 ₽ | |
| 4 | 44511-03G00 |
Cushion, front Suzuki Moto |
1 | 45-55 дней | 2139 ₽ | |
| 5 | 47451-38A01 |
Cushion Suzuki Moto |
1 | 45-55 дней | 453 ₽ | |
| 6 | 44281-03G00 |
Cushion, rear Suzuki Moto |
2 | 45-55 дней | 696 ₽ | |
| 7 | 09116-06190 |
Bolt Suzuki Moto |
2 | 45-55 дней | 268 ₽ | |
| 8 | 09180-06293 |
Spacer Suzuki Moto |
2 | 45-55 дней | 293 ₽ | |
| 9 | 44300-05G1V |
Cock assy, fuel Suzuki Moto |
1 | 45-55 дней | 19799 ₽ | |
| 10 | 44420-21GR0 |
Hose, fuel Suzuki Moto |
1 | 45-55 дней | 2510 ₽ | |
| 11 | 09401-11415 |
Clip Suzuki Moto |
2 | 45-55 дней | 268 ₽ | |
| 12 | 01547-0616B |
Bolt Suzuki Moto |
2 | 45-55 дней | 290 ₽ | |
| 13 | 09168-06026 |
Gasket Suzuki Moto |
2 | 45-55 дней | 372 ₽ | |
| 14 | 09403-12312 |
Clamp, air vent hose Suzuki Moto |
1 | 45-55 дней | 403 ₽ |
