| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| -- |

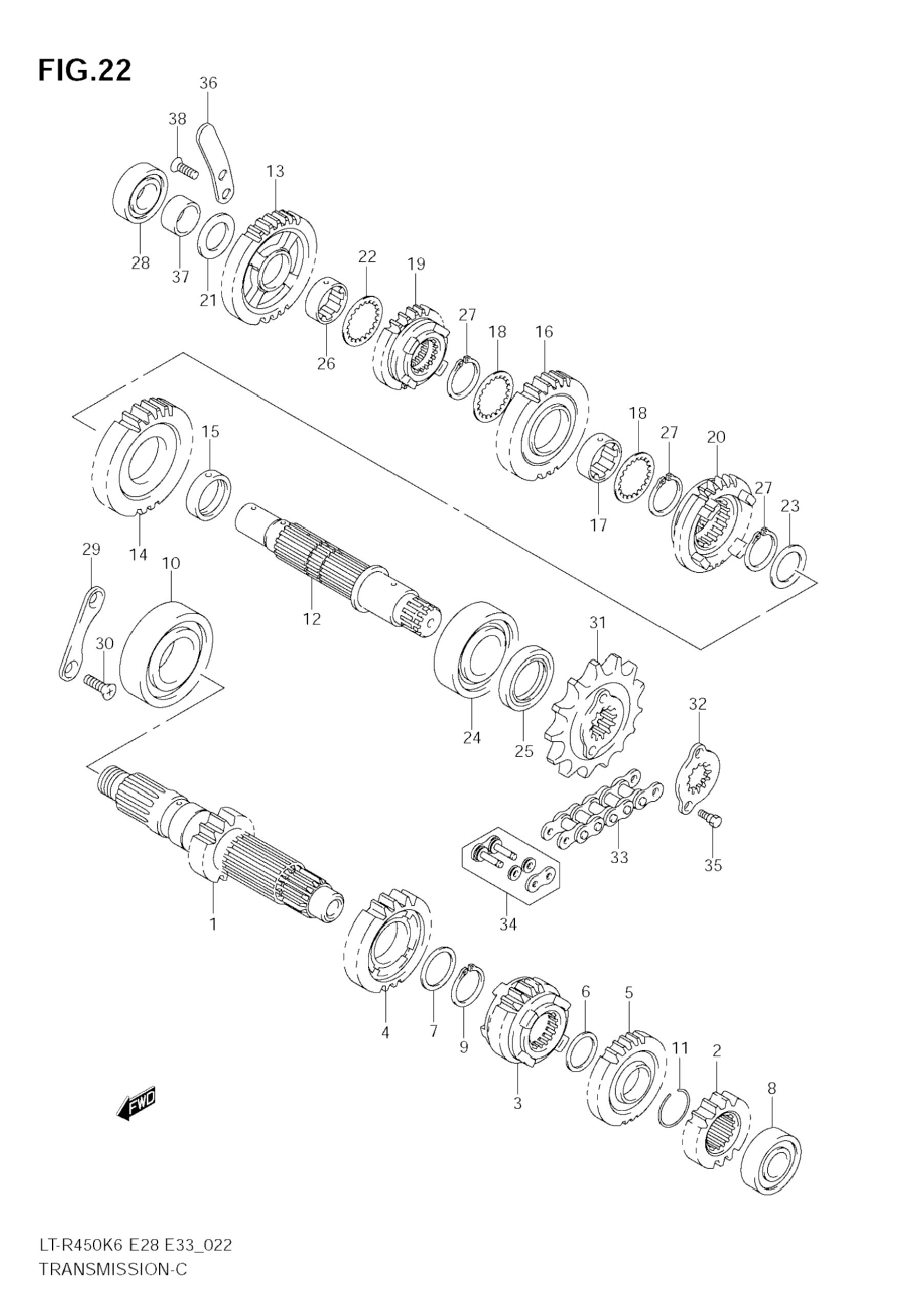

Refer to fig.22a(d- 6) for Kawasaki |
1 | 45-55 дней | 4177 ₽ | ||
| 1 | 24120-45G00 | Shaft, counter (nt:13) | 1 | Узнать цены | ||
| 2 | 24221-45G00 |
Gear, 2nd drive (nt:17) Suzuki Moto |
1 | 45-55 дней | 13241 ₽ | |
| 3 | 24231-45G00 |
Gear, 3rd drive (nt:21) Suzuki Moto |
1 | 45-55 дней | 14586 ₽ | |
| 4 | 24241-45G00 |
Gear, 4th drive (nt:21) Suzuki Moto |
1 | 45-55 дней | 12931 ₽ | |
| 5 | 24251-45G00 |
Gear, 5th drive (nt:23) Suzuki Moto |
1 | 45-55 дней | 12995 ₽ | |
| 6 | 09181-22139 |
Washer, 5th (22x28x1.0) Suzuki Moto |
1 | 45-55 дней | 400 ₽ | |
| 7 | 09181-25139 |
Washer, 4th (25x32x1.0) Suzuki Moto |
1 | 45-55 дней | 381 ₽ | |
| 8 | 09262-17027 |
Bearing, cntr shaft lh 17x40x12 Suzuki Moto |
1 | 45-55 дней | 4051 ₽ | |
| 9 | 09380-25003 |
Circlip, 4th drive Suzuki Moto |
1 | 45-55 дней | 410 ₽ | |
| 10 | 09262-25124 |
Bearing, cntr shaft rh 25x52x14 Suzuki Moto |
1 | 45-55 дней | 5072 ₽ | |
| 11 | 09381-24001 |
Circlip, 2nd drive Suzuki Moto |
1 | 45-55 дней | 369 ₽ | |
| 12 | 24130-45G01 |
Drive shaft Suzuki Moto |
1 | 45-55 дней | 24701 ₽ | |
| 13 | 24311-45G00 |
Gear, 1st driven (nt:27) Suzuki Moto |
1 | 45-55 дней | 13233 ₽ | |
| 14 | 24321-45G00 |
Gear, 2nd driven (nt:28) Suzuki Moto |
1 | 45-55 дней | 13745 ₽ | |
| 15 | 24322-35F00 |
Bush, 2nd driven Suzuki Moto |
1 | 45-55 дней | 2369 ₽ | |
| 16 | 24331-45G00 |
Gear, 3rd driven (nt:28) Suzuki Moto |
1 | 45-55 дней | 13436 ₽ | |
| 17 | 24332-17E20 |
Bush, 3rd driven Suzuki Moto |
1 | 45-55 дней | 4479 ₽ | |
| 18 | 24333-02F00 |
Washer, 3rd driven Suzuki Moto |
2 | 45-55 дней | 674 ₽ | |
| 19 | 24341-45G00 |
Gear, 4th driven (nt:23) Suzuki Moto |
1 | 45-55 дней | 16178 ₽ | |
| 20 | 24351-45G00 |
Gear, 5th driven (nt:21) Suzuki Moto |
1 | 45-55 дней | 15155 ₽ | |
| 21 | 09181-20251 |
Washer, 1st driven rh 20x34x1.0 Suzuki Moto |
1 | 45-55 дней | 372 ₽ | |
| 22 | 09181-22223 |
Washer, 1st driven lh 22x34x1.0 Suzuki Moto |
1 | 45-55 дней | 421 ₽ | |
| 23 | 09160-27008 |
Washer, 2nd driven 27x36x1.0 Suzuki Moto |
1 | 45-55 дней | 424 ₽ | |
| 24 | 09262-25125 |
Bearing, drive shaft lh 25x62x17 Suzuki Moto |
1 | 45-55 дней | 7982 ₽ | |
| 25 | 09283-25086 |
Seal, drive shaft oil 25x38x6 Suzuki Moto |
1 | 45-55 дней | 5668 ₽ | |
| 26 | 09300-22008 |
Bush, 1st driven gear Suzuki Moto |
1 | 45-55 дней | 1701 ₽ | |
| 27 | 09380-27006 |
Circlip, 2nd/3rd driven Suzuki Moto |
3 | 45-55 дней | 364 ₽ | |
| 28 | 09262-20106 |
Bearing, drive shaft rh 20x42x12 Suzuki Moto |
1 | 45-55 дней | 3371 ₽ | |
| 29 | 24741-05G00 |
Retainer, counter shaft rh Suzuki Moto |
1 | 45-55 дней | 810 ₽ | |
| 30 | 09126-06011 |
Screw (6x12) Suzuki Moto |
2 | 45-55 дней | 269 ₽ | |
| 31 | 27511-07G00 |
Sprocket, engine (nt:14) Suzuki Moto |
1 | 45-55 дней | 4078 ₽ | |
| 32 | 27512-07G00 |
Plate, sprocket Suzuki Moto |
1 | 45-55 дней | 543 ₽ | |
| 33 | 27600-43B20-096 |
Chain assy (rk520sm0z10s,96l) Suzuki Moto |
1 | 45-55 дней | 16010 ₽ | |
| 34 | 27620-43B20 |
Joint set opt Suzuki Moto |
1 | 45-55 дней | 2422 ₽ | |
| 35 | 09111-06039 |
Bolt Suzuki Moto |
2 | 45-55 дней | 811 ₽ | |
| 36 | 26264-45G00 | Retainer, kick idle | 1 | Узнать цены | ||
| 37 | 09180-20059 |
Spacer (20x16x14) Suzuki Moto |
1 | 45-55 дней | 866 ₽ | |
| 38 | 02122-0616A |
Screw, kick idle Suzuki Moto |
2 | 45-55 дней | 192 ₽ |
