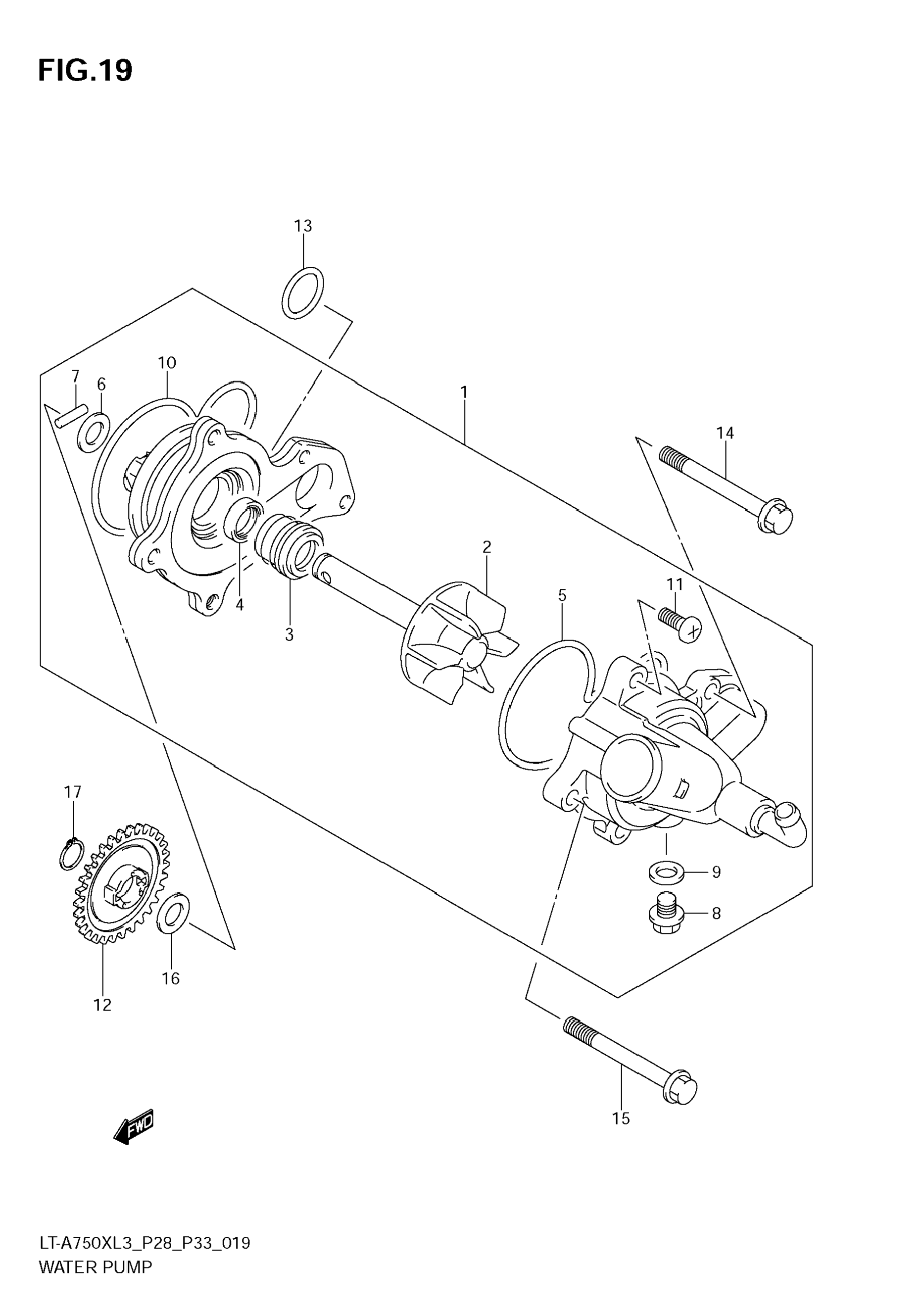

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 17400-31G00 |
Pump assy, water Suzuki Moto |
1 | 45-55 дней | 18179 ₽ | |
| 2 | 17491-31G00 |
.impeller Suzuki Moto |
1 | 45-55 дней | 5558 ₽ | |
| 3 | 17470-02F00 |
.seal, mechanical Suzuki Moto |
1 | 45-55 дней | 3513 ₽ | |
| 4 | 17431-07G00 |
.oil seal Suzuki Moto |
1 | 45-55 дней | 1189 ₽ | |
| 5 | 17418-31G00 |
.o ring Suzuki Moto |
1 | 45-55 дней | 1229 ₽ | |
| 6 | 17432-07G00 |
.washer Suzuki Moto |
1 | 45-55 дней | 296 ₽ | |
| 7 | 17482-03G00 |
.pin Suzuki Moto |
1 | 45-55 дней | 269 ₽ | |
| 8 | 17415-20920 |
.bolt, drain Suzuki Moto |
1 | 45-55 дней | 886 ₽ | |
| 9 | 09168-08016 |
.gasket (8.2x14x1) Suzuki Moto |
1 | 45-55 дней | 196 ₽ | |
| 10 | 17435-31G00 |
.o ring Suzuki Moto |
1 | 45-55 дней | 2456 ₽ | |
| 11 | 02112-0616B |
.screw Suzuki Moto |
2 | 45-55 дней | 216 ₽ | |
| 12 | 17461-31G00 |
Gear, water pump driven Suzuki Moto |
1 | 45-55 дней | 3836 ₽ | |
| 13 | 09280-22001 |
O ring (d:2.4,id:21.8) Suzuki Moto |
1 | 45-55 дней | 171 ₽ | |
| 14 | 01547-0645A |
Bolt Suzuki Moto |
2 | 45-55 дней | 286 ₽ | |
| 15 | 01547-0655A |
Bolt Suzuki Moto |
1 | 45-55 дней | 286 ₽ | |
| 16 | 09181-10158 |
Shim (10x18x0.5) Suzuki Moto |
1 | 45-55 дней | 233 ₽ | |
| 17 | 08331-31109 |
Circlip Suzuki Moto |
1 | 45-55 дней | 212 ₽ |
