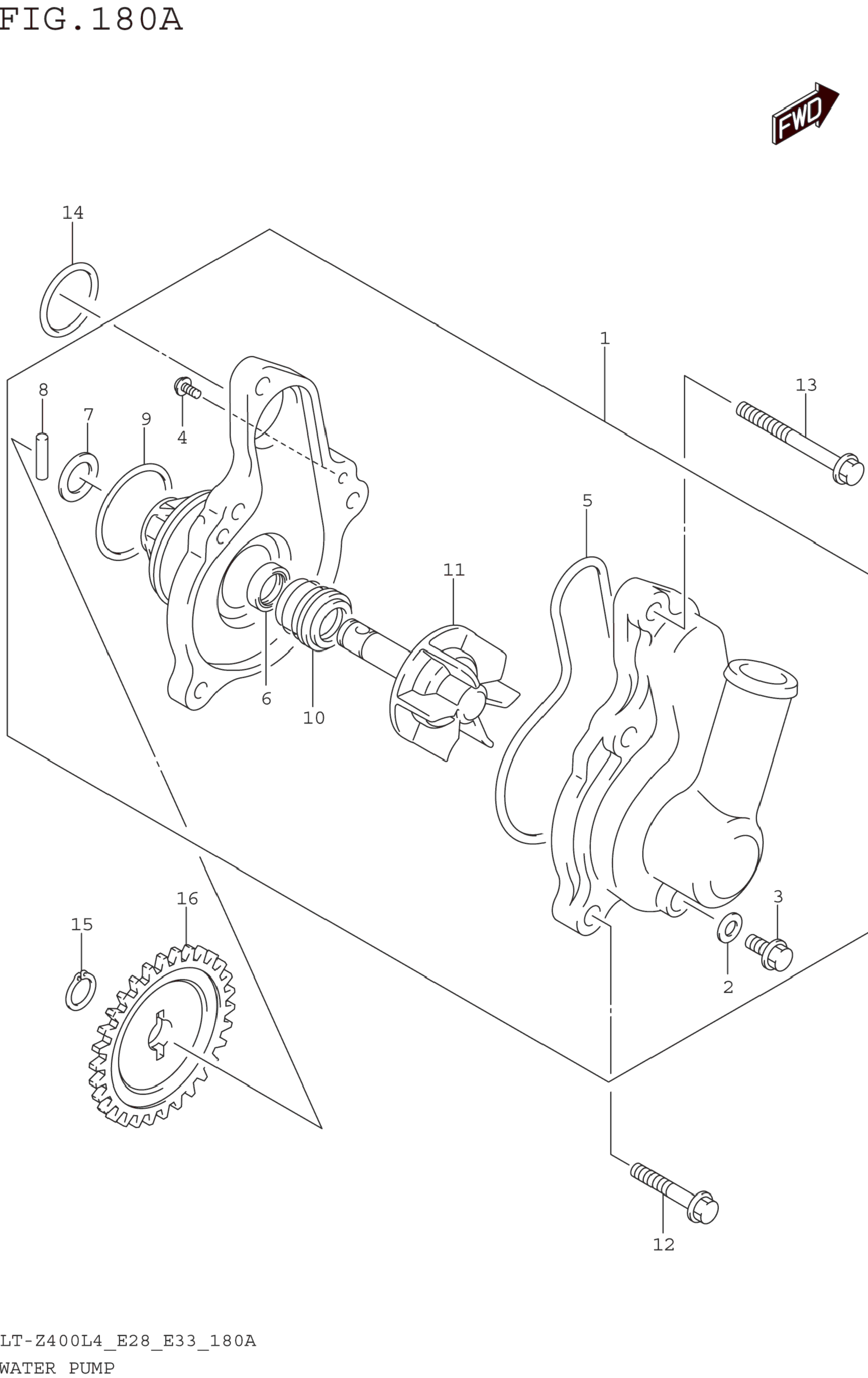

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 17400-33H00 |
Pump assy, water Suzuki Moto |
1 | 45-55 дней | 18806 ₽ | |
| 2 | 17413-28C10 |
.gasket Suzuki Moto |
1 | 45-55 дней | 231 ₽ | |
| 3 | 17415-43D00 |
.bolt Suzuki Moto |
1 | 45-55 дней | 523 ₽ | |
| 4 | 17416-07G00 | .screw | 2 | Узнать цены | ||
| 5 | 17418-07G00 |
.o ring Suzuki Moto |
1 | 45-55 дней | 1229 ₽ | |
| 6 | 17461-48G00 |
.oil seal Suzuki Moto |
1 | 45-55 дней | 1590 ₽ | |
| 7 | 17432-07G00 |
.washer Suzuki Moto |
1 | 45-55 дней | 296 ₽ | |
| 8 | 17433-07G00 |
.pin Suzuki Moto |
1 | 45-55 дней | 373 ₽ | |
| 9 | 17435-33400 |
.o ring Suzuki Moto |
1 | 45-55 дней | 1839 ₽ | |
| 10 | 17470-02F01 |
.seal, water pump shaft Suzuki Moto |
1 | 45-55 дней | 5351 ₽ | |
| 11 | 17491-07G00 |
.impeller/shaft Suzuki Moto |
1 | 45-55 дней | 5351 ₽ | |
| 12 | 09103-06204 |
Bolt (6x30) Suzuki Moto |
3 | 45-55 дней | 334 ₽ | |
| 13 | 09103-06209 |
Bolt (6x45) Suzuki Moto |
1 | 45-55 дней | 338 ₽ | |
| 14 | 09280-22001 |
O ring (d:2.4,id:21.8) Suzuki Moto |
1 | 45-55 дней | 171 ₽ | |
| 15 | 08331-31109 |
Circlip Suzuki Moto |
1 | 45-55 дней | 212 ₽ | |
| 16 | 17461-29F00 |
Gear, water pump driven Suzuki Moto |
1 | 45-55 дней | 4299 ₽ |
