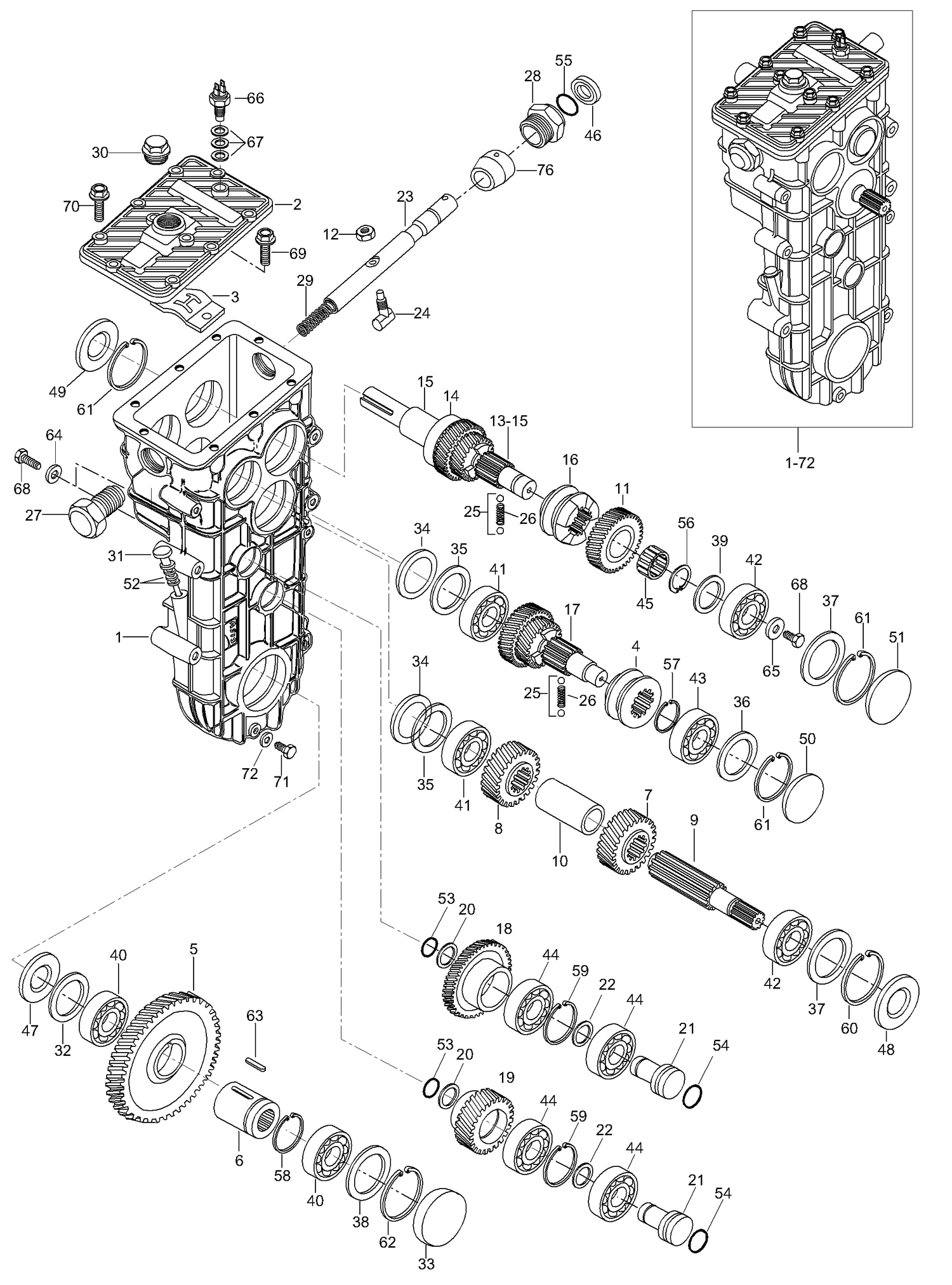

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 875156138 |
Housing Bombardier |
1 | 45-55 дней | 129661 ₽ | |
| 1 | 870156275 | Transmission assy | includes items 1 thru 72 | 1 | Узнать цены | ||
| 2 | 875156043 |
Cover Bombardier |
1 | 45-55 дней | 18946 ₽ | |
| 3 | 875156111 |
H-scheme Bombardier |
1 | 45-55 дней | 3990 ₽ | |
| 4 | 875156005 |
Clutch wheel Bombardier |
1 | 45-55 дней | 42614 ₽ | |
| 5 | 875156114 |
Gear z=53 Bombardier |
1 | 45-55 дней | 43049 ₽ | |
| 6 | 875156218 |
Shaft Bombardier |
1 | 45-55 дней | 14518 ₽ | |
| 7 | 875156276 |
Gear z=29 Bombardier |
1 | 45-55 дней | 29255 ₽ | |
| 8 | 875156054 |
Gear z=34 Bombardier |
1 | 45-55 дней | 47550 ₽ | |
| 9 | 875156069 |
Shaft Bombardier |
1 | 45-55 дней | 48059 ₽ | |
| 10 | 875156087 | Sleeve | 1 | Узнать цены | ||
| 11 | 875156115 |
Gear z=28 Bombardier |
1 | 45-55 дней | 17567 ₽ | |
| 12 | 510611002 |
Nut Bombardier |
1 | 45-55 дней | 505 ₽ | |
| 13 | 875156063 |
Counter shaft | includes items 13 thru 15 Bombardier |
1 | 45-55 дней | 130968 ₽ | |
| 14 | 610063050 |
Bearing Bombardier |
1 | 45-55 дней | 4788 ₽ | |
| 15 | 875156089 | Sleeve | 1 | Узнать цены | ||
| 16 | 875156005 |
Clutch wheel Bombardier |
1 | 45-55 дней | 42614 ₽ | |
| 17 | 875156068 |
Reverse shaft Bombardier |
1 | 45-55 дней | 136921 ₽ | |
| 18 | 875156050 |
Gear z=28 Bombardier |
1 | 45-55 дней | 42177 ₽ | |
| 19 | 875156049 |
Gear z=31 Bombardier |
1 | 45-55 дней | 44937 ₽ | |
| 20 | 875156094 |
Ring Bombardier |
1 | 45-55 дней | 1884 ₽ | |
| 21 | 875147204 |
Shaft Bombardier |
1 | 45-55 дней | 12194 ₽ | |
| 22 | 875147205 |
Shim Bombardier |
1 | 45-55 дней | 1304 ₽ | |
| 23 | 875156072 |
Shaft Bombardier |
1 | 45-55 дней | 13574 ₽ | |
| 24 | 875156073 |
Pin Bombardier |
1 | 45-55 дней | 16841 ₽ | |
| 25 | 616810064 |
Ball Bombardier |
1 | 45-55 дней | 2394 ₽ | |
| 26 | 875156105 |
Spring Bombardier |
1 | 45-55 дней | 949 ₽ | |
| 27 | 875156076 |
Plugg Bombardier |
1 | 45-55 дней | 3047 ₽ | |
| 28 | 875156077 |
Sleeve Bombardier |
1 | 45-55 дней | 3047 ₽ | |
| 29 | 875156078 |
Spring Bombardier |
1 | 45-55 дней | 9653 ₽ | |
| 30 | 875156098 |
Plug Bombardier |
1 | 45-55 дней | 5951 ₽ | |
| 31 | 875156097 | Dipstick | 1 | Узнать цены | ||
| 32 | 617395067 |
Shim 0.5 mm Bombardier |
1 | 45-55 дней | 1282 ₽ | |
| 33 | 614100068 |
Plug Bombardier |
1 | 45-55 дней | 3119 ₽ | |
| 34 | 875152953 |
Plug Bombardier |
1 | 45-55 дней | 3773 ₽ | |
| 35 | 617394352 |
Shim 0.5 mm Bombardier |
1 | 45-55 дней | 1207 ₽ | |
| 36 | 617394252 |
Shim 0.3 mm Bombardier |
1 | 45-55 дней | 940 ₽ | |
| 37 | 617395065 |
Adjustment shim Bombardier |
1 | 45-55 дней | 1288 ₽ | |
| 38 | 617395568 |
Adjustment shim Bombardier |
1 | 45-55 дней | 1355 ₽ | |
| 39 | 616092542 | Axial washer | 1 | Узнать цены | ||
| 40 | 6008 |
Bearing Bombardier |
1 | 45-55 дней | 3555 ₽ | |
| 41 | 610063044 |
Bearing Bombardier |
1 | 45-55 дней | 5079 ₽ | |
| 42 | 610063050 |
Bearing Bombardier |
1 | 45-55 дней | 4788 ₽ | |
| 43 | 6304 |
Bearing Baker Drivetrain |
1 | 45-55 дней | 2040 ₽ | |
| 44 | 610063036 |
Bearing Bombardier |
1 | 45-55 дней | 5152 ₽ | |
| 45 | 611002529 |
Needle bearing Bombardier |
1 | 45-55 дней | 2465 ₽ | |
| 46 | 614102031 |
Shaft seal Bombardier |
1 | 45-55 дней | 1163 ₽ | |
| 47 | 614102852 |
Shaft seal Bombardier |
1 | 45-55 дней | 2394 ₽ | |
| 48 | 614102562 |
Shaft seal Bombardier |
1 | 45-55 дней | 4788 ₽ | |
| 49 | 614103562 |
Shaft seal Bombardier |
1 | 45-55 дней | 5152 ₽ | |
| 50 | 614100052 |
Plug Bombardier |
1 | 45-55 дней | 2610 ₽ | |
| 51 | 614100062 |
Plug Bombardier |
1 | 45-55 дней | 2175 ₽ | |
| 52 | 614600725 |
O-ring Bombardier |
1 | 45-55 дней | 821 ₽ | |
| 53 | 614601224 |
O-ring Bombardier |
1 | 45-55 дней | 821 ₽ | |
| 54 | 614602431 |
O-ring Bombardier |
1 | 45-55 дней | 993 ₽ | |
| 55 | 614601523 |
O-ring Bombardier |
1 | 45-55 дней | 993 ₽ | |
| 56 | 617450025 |
Lock ring Bombardier |
1 | 45-55 дней | 391 ₽ | |
| 57 | 617450028 |
Lock ring Bombardier |
1 | 45-55 дней | 969 ₽ | |
| 58 | 617300040 | Lock ring | 1 | Узнать цены | ||
| 59 | 617330047 |
Lock ring Bombardier |
1 | 45-55 дней | 897 ₽ | |
| 60 | 31002 |
Circlip Bombardier |
1 | 45-55 дней | 690 ₽ | |
| 61 | 617330062 |
Lock ring Bombardier |
1 | 45-55 дней | 1022 ₽ | |
| 62 | 617330068 |
Lock ring Bombardier |
1 | 45-55 дней | 916 ₽ | |
| 63 | 603345080 | Key | 1 | Узнать цены | ||
| 64 | 501150902 | Washer | 1 | Узнать цены | ||
| 65 | 875156112 | Washer | 1 | Узнать цены | ||
| 66 | 654100225 |
Switch Bombardier |
1 | 45-55 дней | 9798 ₽ | |
| 67 | 617391218 |
Shim Bombardier |
1 | 45-55 дней | 1159 ₽ | |
| 68 | 40036 | Screw m8 x 20 | 1 | Узнать цены | ||
| 69 | 40337 |
Screw m8 x 16 Rigid |
1 | 25-45 дней | 10519 ₽ | |
| 70 | 537001402 |
Screw Bombardier |
1 | 45-55 дней | 535 ₽ | |
| 71 | 528801342 |
Screw m8 x 10 Bombardier |
1 | 45-55 дней | 657 ₽ | |
| 72 | 615580812 |
Seal ring Bombardier |
1 | 45-55 дней | 616 ₽ | |
| 76 |
Locking screw m8x90 - does not apply to this model Arctic Cat |
1 | 45-55 дней | 0 ₽ |
