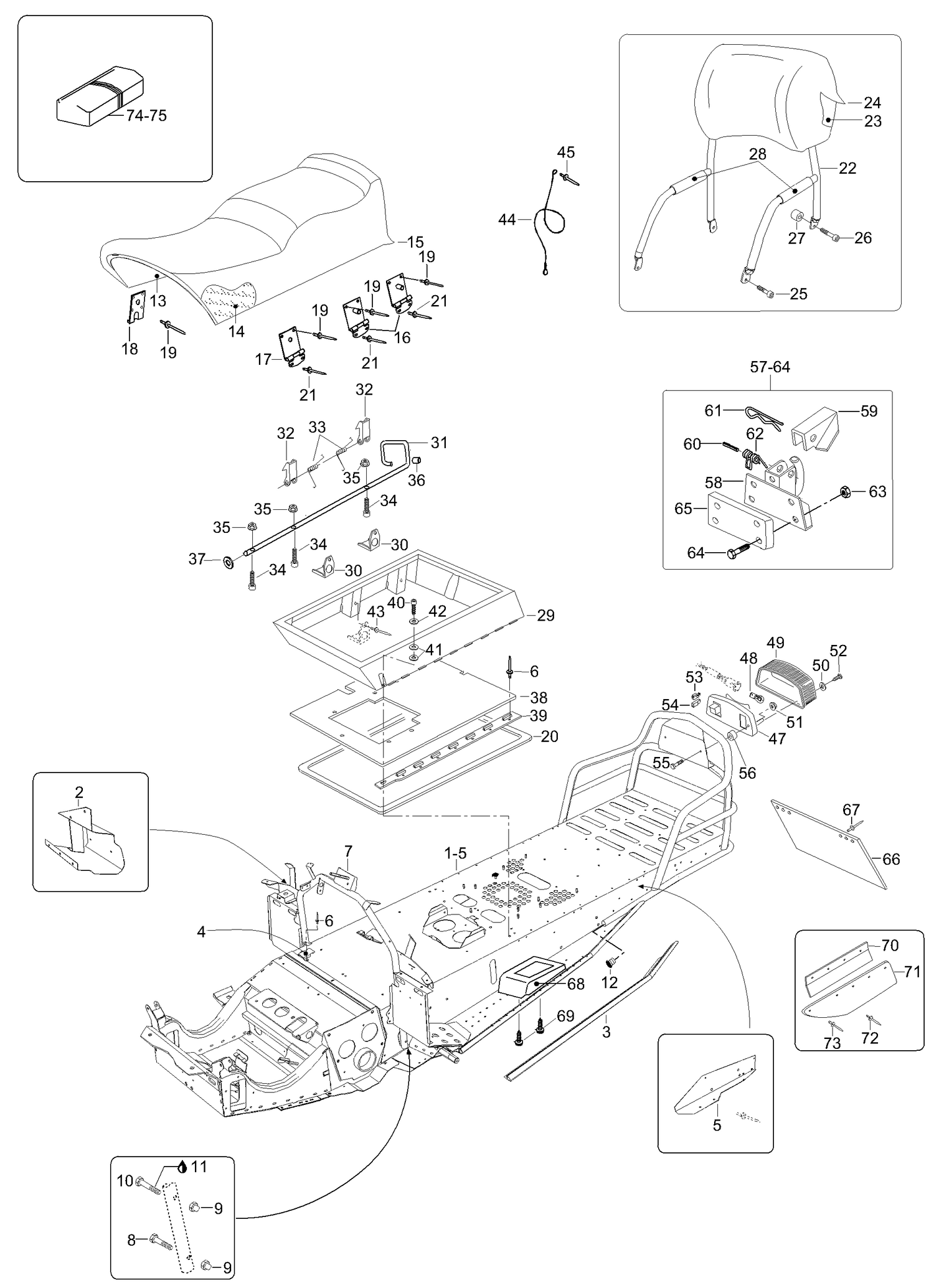

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 605150594 | Chassis | includes items 1 thru 5 | 1 | Узнать цены | ||
| 2 | 605350839 | R.h. toe hold | 1 | Узнать цены | ||
| 2 | 605350840 |
L.h. toe hold Bombardier |
1 | 45-55 дней | 2756 ₽ | |
| 3 | 605250774 |
R.h. support (unpainted) Bombardier |
1 | 45-55 дней | 4426 ₽ | |
| 3 | 605250773 |
L.h. support (unpainted) Bombardier |
1 | 45-55 дней | 4426 ₽ | |
| 4 | 605349992 | Bracket | 1 | Узнать цены | ||
| 5 | 605350846 | R.h. bracket | 1 | Узнать цены | ||
| 5 | 605350845 |
L.h. bracket Bombardier |
1 | 45-55 дней | 1812 ₽ | |
| 6 | 36083 | Rivet | 1 | Узнать цены | ||
| 7 | 605150605 | Handle support | 1 | Узнать цены | ||
| 8 | 40032 | Screw m6 x 30 | 1 | Узнать цены | ||
| 9 | 33051 |
Nut m6 Enduro Engineering |
1 | 25-45 дней | 1909 ₽ | |
| 10 | 40002 |
Screw m6 x 40 Cylinder Works |
1 | 25-45 дней | 24270 ₽ | |
| 11 |
Loctite 243 | parts marked with <<xxx>> are not available as spare parts Arctic Cat |
1 | 45-55 дней | 0 ₽ | ||
| 12 | 28210 |
Plug Kolpin |
1 | 25-45 дней | 48449 ₽ | |
| 13 | 519394 |
Bottom of seat Bombardier |
1 | 45-55 дней | 10887 ₽ | |
| 14 | 605150323 | Foam | 1 | Узнать цены | ||
| 15 | 605153063 |
Seat cover Bombardier |
1 | 45-55 дней | 72742 ₽ | |
| 16 | 549874 |
Hinge for set assy Bombardier |
1 | 45-55 дней | 4788 ₽ | |
| 17 | 5440581 |
Hinge for set assy Bombardier |
1 | 45-55 дней | 2974 ₽ | |
| 18 | 549732 |
Lock plate weld. Bombardier |
1 | 45-55 дней | 1979 ₽ | |
| 19 | 36071 |
Rivet Draw-tite |
1 | 25-45 дней | 3518 ₽ | |
| 20 | 5440059 | Seal | 1 | Узнать цены | ||
| 21 | 36489 |
Rivet Bombardier |
1 | 45-55 дней | 76 ₽ | |
| 22 | 5245664 |
Backrest Bombardier |
1 | 45-55 дней | 10306 ₽ | |
| 23 | 539399 |
Backrest foam Bombardier |
1 | 45-55 дней | 9726 ₽ | |
| 24 | 605350589 | Backrest cover | 1 | Узнать цены | ||
| 25 | 40388 | Allen screw m8 x 20 | 1 | Узнать цены | ||
| 26 | 40389 |
Allen screw m8 x 30 Bombardier |
1 | 45-55 дней | 129 ₽ | |
| 27 | 5440665 |
Sleeve Bombardier |
1 | 45-55 дней | 536 ₽ | |
| 28 | 415050300 | Grip | 1 | Узнать цены | ||
| 29 | 605150634 | Seat box | 1 | Узнать цены | ||
| 30 | 5443661 | Support | 1 | Узнать цены | ||
| 31 | 5344987 |
Locking rod Bombardier |
1 | 45-55 дней | 3482 ₽ | |
| 32 |
Lock cam - does not apply to this model Arctic Cat |
1 | 45-55 дней | 0 ₽ | ||
| 32 |
Lock cam - does not apply to this model Arctic Cat |
1 | 45-55 дней | 0 ₽ | ||
| 33 | 5444439 | Spring | 1 | Узнать цены | ||
| 34 | 40144 |
Allen screw m4 x 16 Bombardier |
1 | 45-55 дней | 142 ₽ | |
| 35 | 33008 | Nut elastic m4 | 1 | Узнать цены | ||
| 36 | 28019 | Plug | 1 | Узнать цены | ||
| 37 | 234081410 |
Flat washer 8 mm Bombardier |
1 | 45-55 дней | 76 ₽ | |
| 38 | 605350645 | Foam | 1 | Узнать цены | ||
| 39 | 5144029 | Clip plate r.h. | 1 | Узнать цены | ||
| 39 | 5144028 |
Clip plate l.h. Bombardier |
1 | 45-55 дней | 1417 ₽ | |
| 40 | 40052 |
Allen screw m6 x 20 Bombardier |
1 | 45-55 дней | 313 ₽ | |
| 41 | 234062410 |
Flat washer 6 mm Bombardier |
1 | 45-55 дней | 71 ₽ | |
| 42 | 20052 |
Spring washer National Cycle |
1 | 25-45 дней | 5351 ₽ | |
| 43 | 36009 |
Rivet, black Bombardier |
1 | 45-55 дней | 100 ₽ | |
| 44 | 5447746 | Retainer cable | 1 | Узнать цены | ||
| 45 | 36038 |
Rivet Bombardier |
1 | 45-55 дней | 142 ₽ | |
| 46 |
Rear lamp assy | parts marked with <<xxx>> are not available as spare parts includes ite Arctic Cat |
1 | 45-55 дней | 0 ₽ | ||
| 47 | 510004061 |
Tail lamp housing Bombardier |
1 | 45-55 дней | 3336 ₽ | |
| 48 | 520000758 |
Bulb Bombardier |
1 | 45-55 дней | 837 ₽ | |
| 49 | 414513700 |
Lens Bombardier |
1 | 45-55 дней | 2538 ₽ | |
| 50 | 414516400 |
Washer Bombardier |
1 | 45-55 дней | 60 ₽ | |
| 51 | 233261414 |
Hex. flanged elastic nut m6 x 1.0 Bombardier |
1 | 45-55 дней | 123 ₽ | |
| 52 | 209632540 |
Phillips tapping screw m3.9 x 25 Bombardier |
1 | 45-55 дней | 108 ₽ | |
| 53 | 42178 | Female terminal | 1 | Узнать цены | ||
| 54 | 42179 |
Connector housing Honda Moto |
1 | 45-55 дней | 244 ₽ | |
| 55 | 40065 | Locking screw m6 x 45 | 1 | Узнать цены | ||
| 56 | 549103 | Sleeve | 1 | Узнать цены | ||
| 57 | 5344156 |
Hitch assy | includes items 57 thru 64 Bombardier |
1 | 45-55 дней | 6967 ₽ | |
| 58 | 5344156 |
Hitch ass'y Bombardier |
1 | 45-55 дней | 6967 ₽ | |
| 59 | 5440767 | Latch | 1 | Узнать цены | ||
| 60 | 41012 |
Cotter Bombardier |
1 | 45-55 дней | 492 ₽ | |
| 61 | 41029 |
Pin Bombardier |
1 | 45-55 дней | 404 ₽ | |
| 62 | 545693 |
Spring Bombardier |
1 | 45-55 дней | 2103 ₽ | |
| 63 | 232581414 |
Hex. elastic stop nut m8 Bombardier |
1 | 45-55 дней | 52 ₽ | |
| 64 | 40009 |
Screw m8 x 50 Rigid |
1 | 25-45 дней | 3250 ₽ | |
| 65 | 605351510 |
Plate Bombardier |
1 | 45-55 дней | 3627 ₽ | |
| 66 | 535437 | Snow guard | 1 | Узнать цены | ||
| 67 | 36036 | Rivet | 1 | Узнать цены | ||
| 68 | 414975400 | L.h. rear footrest | 1 | Узнать цены | ||
| 68 | 414975300 | R.h. rear footrest | 1 | Узнать цены | ||
| 69 | 40870 |
Screw Bombardier |
1 | 45-55 дней | 137 ₽ | |
| 70 | 605251249 |
R.h. support Bombardier |
1 | 45-55 дней | 2683 ₽ | |
| 70 | 605251248 |
L.h. support Bombardier |
1 | 45-55 дней | 2610 ₽ | |
| 71 | 5142828 |
Snow guard, side Bombardier |
1 | 45-55 дней | 2829 ₽ | |
| 72 | 36097 |
Rivet Bombardier |
1 | 45-55 дней | 79 ₽ | |
| 73 | 36005 |
Rivet Bombardier |
1 | 45-55 дней | 190 ₽ | |
| 74 | 605352219 |
Toolset | includes items 74 thru 75 Bombardier |
1 | 45-55 дней | 3191 ₽ | |
| 75 | 708200043 |
Tool box Bombardier |
1 | 45-55 дней | 409 ₽ |
