| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 420888534 |

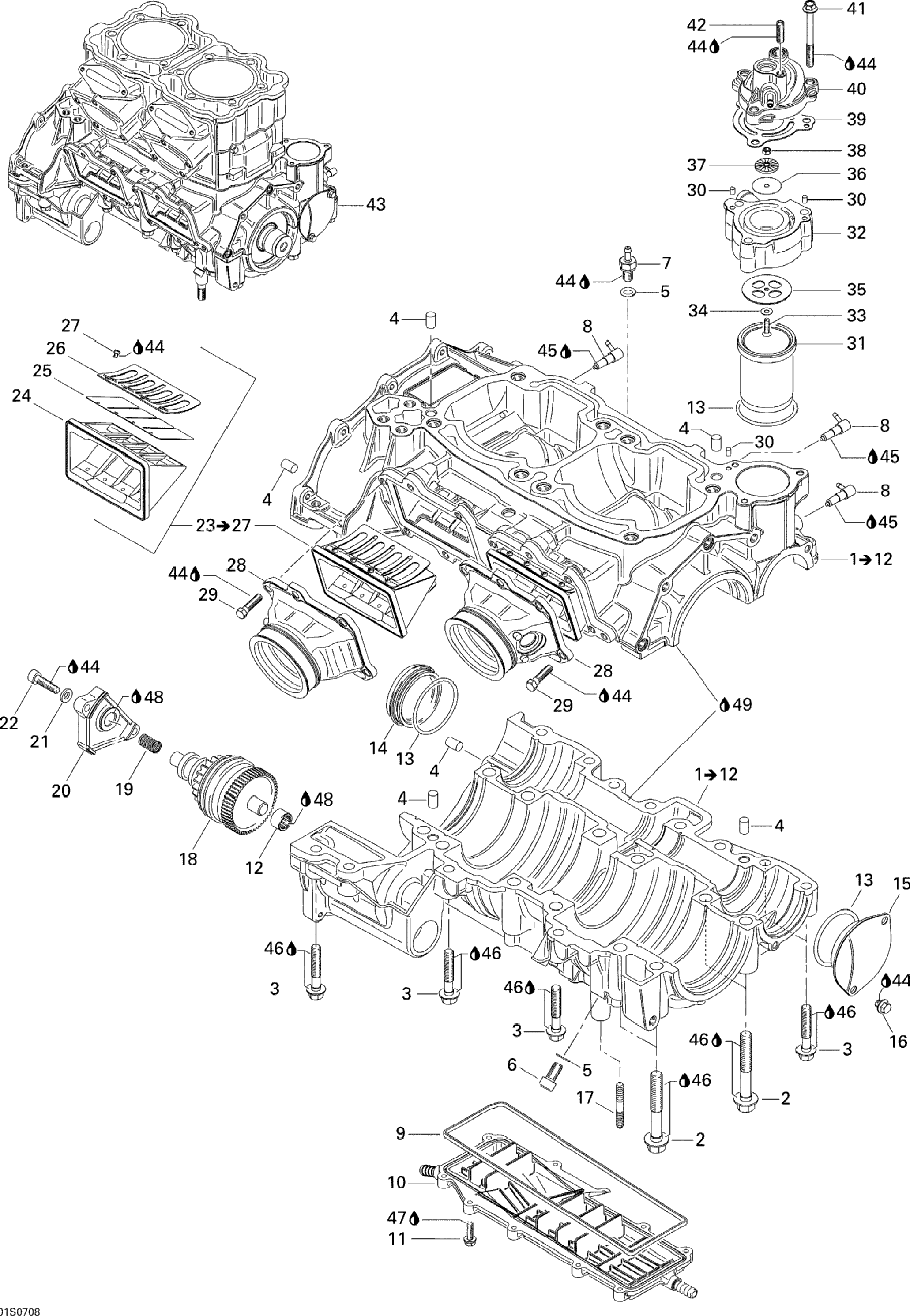

Crankcase assy 947-di includes 1 to 12 Bombardier |
1 | 45-55 дней | 147594 ₽ | |
| 2 | 420941333 |
Hex flanged screw m10 x 73.5 Bombardier |
12 | 45-55 дней | 1478 ₽ | |
| 3 | 420940638 |
Hex flanged screw m8 x 45 Bombardier |
12 | 45-55 дней | 1522 ₽ | |
| 4 | 420632010 |
Pin 8 x 12 Bombardier |
6 | 45-55 дней | 343 ₽ | |
| 5 | 420950141 |
Sealing ring Bombardier |
2 | 45-55 дней | 182 ₽ | |
| 6 | 205081660 | Socket head screw m8 x 16 | 1 | Узнать цены | ||
| 7 | 420640970 |
Vent nipple m8 Bombardier |
1 | 45-55 дней | 1739 ₽ | |
| 8 | 420956510 |
Check valve Bombardier |
3 | 45-55 дней | 3191 ₽ | |
| 9 | 420931880 |
Rubber ring Bombardier |
1 | 45-55 дней | 670 ₽ | |
| 10 | 420811430 |
Waterchannel cover Bombardier |
1 | 45-55 дней | 5587 ₽ | |
| 11 | 420841558 | Taptite screw m5 x 20 | 10 | Узнать цены | ||
| 12 | 420232482 |
Needle bushing Bombardier |
1 | 45-55 дней | 1739 ₽ | |
| 13 | 420230300 |
O-ring Bombardier |
3 | 45-55 дней | 646 ₽ | |
| 14 | 420811200 |
Bearing cover Bombardier |
1 | 45-55 дней | 1231 ₽ | |
| 15 | 420811205 |
Bearing cover Bombardier |
1 | 45-55 дней | 3264 ₽ | |
| 16 | 207661244 |
Hex flanged screw m6 x 12 Bombardier |
2 | 45-55 дней | 190 ₽ | |
| 17 | 420840290 |
Stud m10 x 18 Bombardier |
2 | 45-55 дней | 293 ₽ | |
| 18 | 420888042 |
Starter drive ass'y Bombardier |
1 | 45-55 дней | 32667 ₽ | |
| 19 | 420938204 |
Spring Bombardier |
1 | 45-55 дней | 590 ₽ | |
| 20 | 420811210 |
Cover Bombardier |
1 | 45-55 дней | 2538 ₽ | |
| 21 | 420845020 |
Spring washer Bombardier |
2 | 45-55 дней | 92 ₽ | |
| 22 | 420840401 |
Socket head screw m6 x 22 Bombardier |
2 | 45-55 дней | 139 ₽ | |
| 23 | 420924602 |
Reed valve ass'y includes 23 to 27 Bombardier |
2 | 45-55 дней | 16550 ₽ | |
| 24 | XXX | Reed pedal | 1 | Узнать цены | ||
| 25 | 420924612 |
Reed pedal Bombardier |
4 | 45-55 дней | 3336 ₽ | |
| 26 | 420924617 |
Reed pedal stop Bombardier |
4 | 45-55 дней | 1076 ₽ | |
| 27 | 420941215 |
Phillips screw m3 x 5 Bombardier |
16 | 45-55 дней | 158 ₽ | |
| 28 | 420867890 |
Carburator adapter ass'y Bombardier |
2 | 45-55 дней | 8274 ₽ | |
| 29 | 207662544 |
Hex screw Bombardier |
12 | 45-55 дней | 59 ₽ | |
| 30 | 420232020 |
Pin Bombardier |
3 | 45-55 дней | 812 ₽ | |
| 31 | 420923911 |
Compressor sleeve Bombardier |
1 | 45-55 дней | 18075 ₽ | |
| 32 | 420923890 |
Compressor head Bombardier |
1 | 45-55 дней | 5732 ₽ | |
| 33 | 420841368 |
Oval head screw Bombardier |
1 | 45-55 дней | 589 ₽ | |
| 34 | 420944590 |
Washer Bombardier |
1 | 45-55 дней | 812 ₽ | |
| 35 | 420854500 |
Inlet reed disk Bombardier |
1 | 45-55 дней | 1076 ₽ | |
| 36 | 420854510 |
Outlet reed disk Bombardier |
1 | 45-55 дней | 960 ₽ | |
| 37 | 420944600 |
Diaphragm guide Bombardier |
1 | 45-55 дней | 1478 ₽ | |
| 38 | 420242533 |
Lock nut m4 Bombardier |
1 | 45-55 дней | 940 ₽ | |
| 39 | 420931870 |
Gasket Bombardier |
1 | 45-55 дней | 993 ₽ | |
| 40 | 420923902 |
Compressor cover Bombardier |
1 | 45-55 дней | 13936 ₽ | |
| 41 | 420640563 |
Hex flanged screw m6 x 55 Bombardier |
3 | 45-55 дней | 940 ₽ | |
| 42 | 420640873 |
Adjuster screw m6 x 25 Bombardier |
1 | 45-55 дней | 505 ₽ | |
| 43 | 421000416 |
Short block ass'y, 947 di Bombardier |
1 | 45-55 дней | 234786 ₽ | |
| 44 | 293800060 |
Loctite 243, 10 ml Bombardier |
1 | 45-55 дней | 2321 ₽ | |
| 45 | 413711400 |
Loctite 648, 10 ml Bombardier |
1 | 45-55 дней | 3990 ₽ | |
| 45 | 219703000 |
Loctite 648, 10 ml Bombardier |
1 | 45-55 дней | 3990 ₽ | |
| 46 | 293800038 |
Loctite 518, 50 ml Bombardier |
1 | 45-55 дней | 4353 ₽ | |
| 47 | 293800070 |
Loctite 767, antiseize lubricant, 8 oz Bombardier |
1 | 45-55 дней | 2610 ₽ | |
| 48 | 413707000 |
Molykote 111, 150 g Bombardier |
1 | 45-55 дней | 6458 ₽ | |
| 49 | 293800081 |
Loctite 5910, 300 ml Bombardier |
1 | 45-55 дней | 6749 ₽ |
