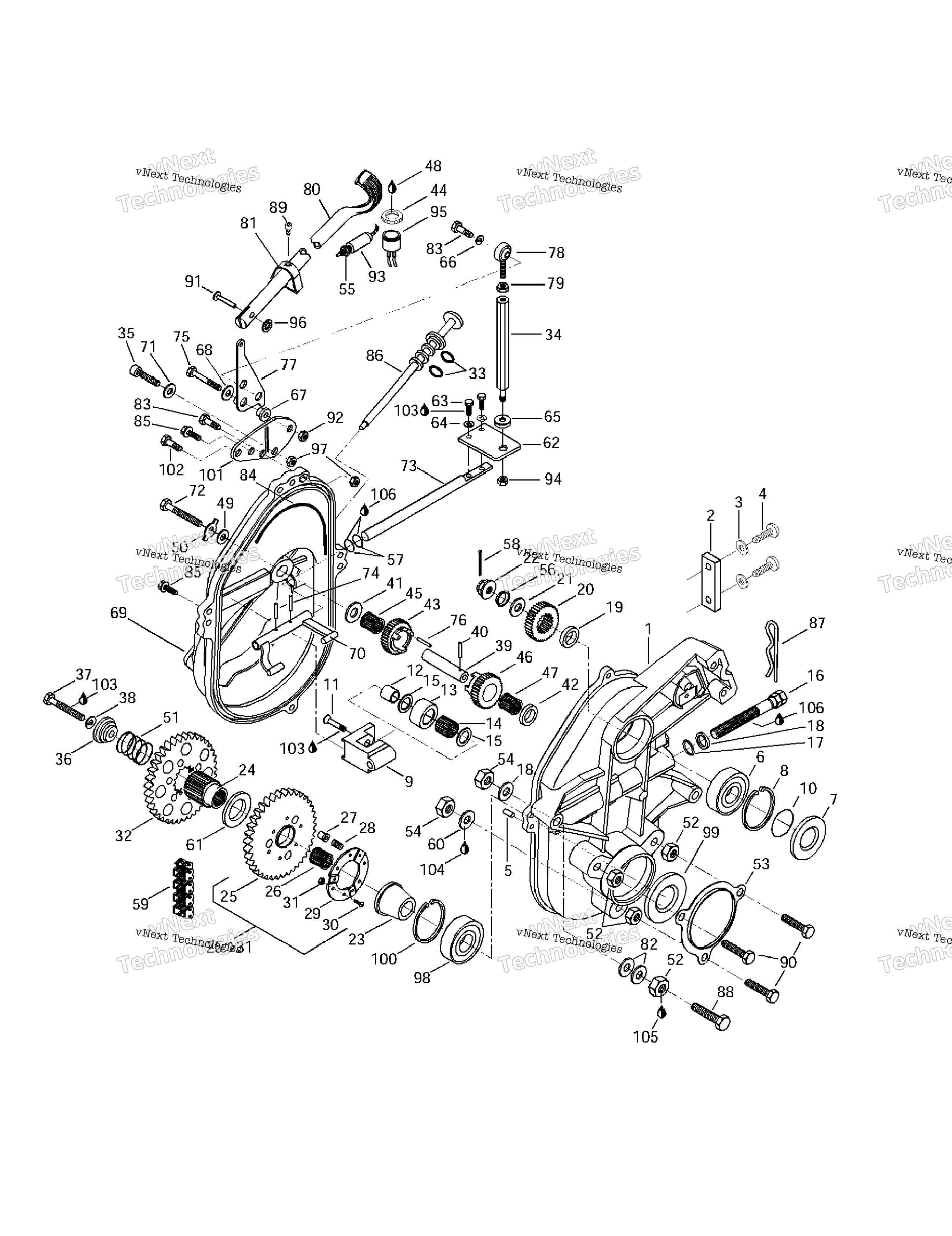

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 0 ₽ | |||||
| 1 | 504144600 | Machined chaincase | 1 | Узнать цены | ||
| 2 | 504082400 | Chain slider | 1 | Узнать цены | ||
| 3 | 732900040 | Copper washer | 1 | Узнать цены | ||
| 4 | 207161644 |
Hex. screw m6 x 16 Bombardier |
2 | 45-55 дней | 153 ₽ | |
| 5 | 732620001 |
Cylinder pin Bombardier |
1 | 45-55 дней | 2205 ₽ | |
| 6 | 293350115 |
Ball bearing <<6205>> Bombardier |
1 | 45-55 дней | 1464 ₽ | |
| 7 | 414882800 |
Oil seal Bombardier |
1 | 45-55 дней | 4307 ₽ | |
| 8 | 371901700 | Circlip | 1 | Узнать цены | ||
| 9 | 504081000 |
Machined tensioner Bombardier |
1 | 45-55 дней | 6633 ₽ | |
| 10 | 371910000 |
Circlip Bombardier |
1 | 45-55 дней | 153 ₽ | |
| 11 | 732601144 |
Screw Bombardier |
1 | 45-55 дней | 2168 ₽ | |
| 12 | 504080200 |
Spacer Bombardier |
1 | 45-55 дней | 4006 ₽ | |
| 13 | 414531300 | Roller | 1 | Узнать цены | ||
| 14 | 405403000 |
Needle bearing Bombardier |
1 | 45-55 дней | 4914 ₽ | |
| 15 | 504080300 |
Washer Bombardier |
1 | 45-55 дней | 2598 ₽ | |
| 16 | 732601267 | Tensioner adjustment screw (forging) | 1 | Узнать цены | ||
| 17 | 414484400 |
O-ring Bombardier |
1 | 45-55 дней | 941 ₽ | |
| 18 | 234001410 |
Flat washer 10 mm Bombardier |
3 | 45-55 дней | 153 ₽ | |
| 19 | 504093400 | Shim | 1 | Узнать цены | ||
| 20 | 504091200 | Sprocket, 21 teeth | 1 | Узнать цены | ||
| 21 | 504087100 | Washer | 1 | Узнать цены | ||
| 22 | 232210414 |
Castellated nut m20 Bombardier |
1 | 45-55 дней | 2324 ₽ | |
| 23 | 504094100 | Retaining ring | 1 | Узнать цены | ||
| 24 | 504094200 | Coupling shaft | 1 | Узнать цены | ||
| 25 | 504088200 |
Sprocket (44 teeth) Bombardier |
1 | 45-55 дней | 16536 ₽ | |
| 25 | 581095900 | Sprocket ass'y (44 teeth) includes 25 - 31. | 1 | Узнать цены | ||
| 26 | 414772600 |
Needle bearing Bombardier |
1 | 45-55 дней | 4107 ₽ | |
| 27 | 504076800 | Drive pin | 1 | Узнать цены | ||
| 28 | 414772700 |
Spring Bombardier |
1 | 45-55 дней | 2494 ₽ | |
| 29 | 504076100 | Retainer ring | 1 | Узнать цены | ||
| 30 | 207152044 |
Screw hex. m5 x 20 Bombardier |
6 | 45-55 дней | 153 ₽ | |
| 31 | 233551416 |
Nut lock hex. m5 Bombardier |
1 | 45-55 дней | 2248 ₽ | |
| 32 | 504096800 |
Sliding gear, 56 teeth Bombardier |
1 | 45-55 дней | 42707 ₽ | |
| 33 | 414969400 | O-ring | 1 | Узнать цены | ||
| 34 | 504094700 | Tie rod (bar) | 1 | Узнать цены | ||
| 35 | 205061644 |
Allen screw m6 x 16 Bombardier |
1 | 45-55 дней | 2124 ₽ | |
| 36 | 504151964 |
Cap Bombardier |
1 | 45-55 дней | 7844 ₽ | |
| 37 | 207005044 |
Hex. screw m10 x 50 Bombardier |
1 | 45-55 дней | 473 ₽ | |
| 38 | 234100602 | Lock washer 10 mm | 1 | Узнать цены | ||
| 39 | 504083100 |
Reverse shaft Bombardier |
1 | 45-55 дней | 6362 ₽ | |
| 40 | 732804003 | Spring pin | 1 | Узнать цены | ||
| 41 | 504077300 |
Spacer Bombardier |
1 | 45-55 дней | 805 ₽ | |
| 42 | 504078700 |
Ring Bombardier |
1 | 45-55 дней | 2318 ₽ | |
| 43 | 581122200 | Sprock ass’y, 19 teeth | 1 | Узнать цены | ||
| 44 | 414805101 |
Plastic nut Bombardier |
1 | 45-55 дней | 2457 ₽ | |
| 45 | 414805000 | Needle bearing | 1 | Узнать цены | ||
| 46 | 581098200 | Sprocket ass'y (19 teeth) includes 46 - 47. | 1 | Узнать цены | ||
| 47 | 414773100 |
Needle bearing Bombardier |
1 | 45-55 дней | 3499 ₽ | |
| 48 | 296000309 |
Silicone sealant 51388, 300 ml Bombardier |
1 | 45-55 дней | 5552 ₽ | |
| 49 | 504082900 |
Washer Bombardier |
1 | 45-55 дней | 332 ₽ | |
| 50 | 504087700 | Tab lock | 1 | Узнать цены | ||
| 51 | 504099200 | Release spring | 1 | Узнать цены | ||
| 52 | 504083800 | Spacer | 1 | Узнать цены | ||
| 53 | 501022100 | Protector | 1 | Узнать цены | ||
| 54 | 233601416 |
Elastic stop nut m10 Bombardier |
5 | 45-55 дней | 216 ₽ | |
| 55 | 250100012 |
Nut Bombardier |
1 | 45-55 дней | 2128 ₽ | |
| 56 | 417000900 | Spring washer | 1 | Узнать цены | ||
| 57 | 414773200 |
O-ring Bombardier |
1 | 45-55 дней | 2287 ₽ | |
| 58 | 371801300 | Cotter pin | 1 | Узнать цены | ||
| 59 | 504151883 |
Drive chain, (72 links-narrow) Bombardier |
1 | 45-55 дней | 12795 ₽ | |
| 60 | 732900020 | Copper washer | 1 | Узнать цены | ||
| 61 | 504094300 |
Washer Bombardier |
1 | 45-55 дней | 2494 ₽ | |
| 62 | 504094602 | Plate | 1 | Узнать цены | ||
| 63 | 207151444 |
Hex. screw m5 x 14 Bombardier |
2 | 45-55 дней | 153 ₽ | |
| 64 | 234151401 |
Lock washer 5 mm (black) Bombardier |
2 | 45-55 дней | 153 ₽ | |
| 65 | 570045700 | Rubber washer | 1 | Узнать цены | ||
| 66 | 234161471 |
Lock washer 6 mm Bombardier |
1 | 45-55 дней | 153 ₽ | |
| 67 | 414927600 | Flanged bushing | 1 | Узнать цены | ||
| 68 | 224081201 |
Flat washer Bombardier |
1 | 45-55 дней | 2098 ₽ | |
| 69 | 504098500 | Cover chaincase | 1 | Узнать цены | ||
| 70 | 504075800 | Fork | 1 | Узнать цены |
