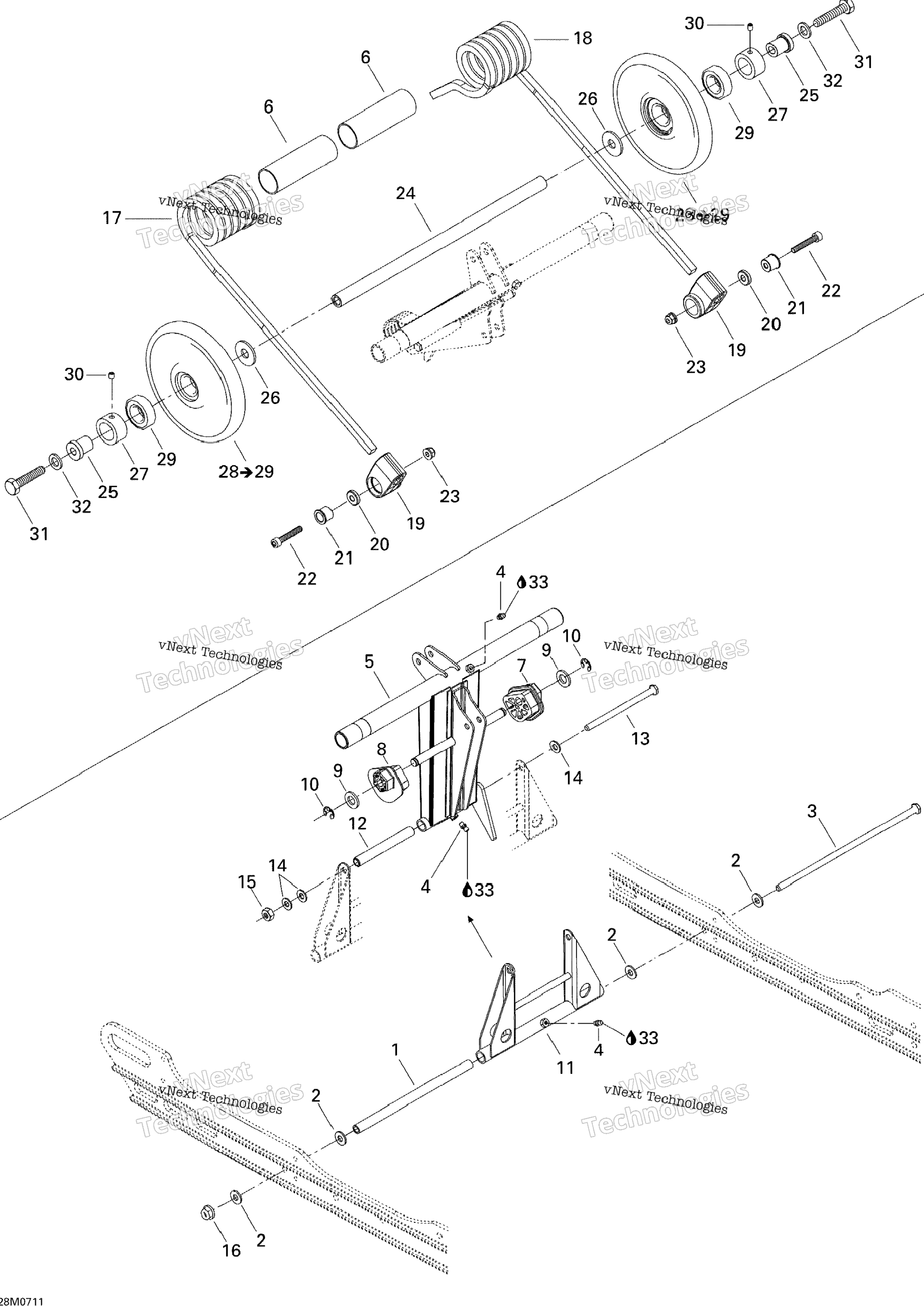

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 503189156 |
Pivot arm axle Bombardier |
1 | 45-55 дней | 1957 ₽ | |
| 2 | 503189157 |
Washer Bombardier |
4 | 45-55 дней | 302 ₽ | |
| 3 | 503192440 |
Long bolt m8 Bombardier |
1 | 45-55 дней | 2829 ₽ | |
| 4 | 408200700 |
Grease fitting Bombardier |
3 | 45-55 дней | 312 ₽ | |
| 5 | 503191057 | Rear arm | 1 | Узнать цены | ||
| 6 | 503190333 |
Bushing Bombardier |
1 | 45-55 дней | 1230 ₽ | |
| 7 | 503190023 |
Lh cam adjuster Bombardier |
1 | 45-55 дней | 878 ₽ | |
| 8 | 503190022 |
Rh cam adjuster Bombardier |
1 | 45-55 дней | 790 ₽ | |
| 9 | 503189148 |
Washer Bombardier |
2 | 45-55 дней | 258 ₽ | |
| 10 | 293370013 |
E-circlip Bombardier |
2 | 45-55 дней | 58 ₽ | |
| 11 | 503191372 |
Pivot arm Bombardier |
1 | 45-55 дней | 7983 ₽ | |
| 12 | 503144300 |
Upper axle, pivot arm Bombardier |
1 | 45-55 дней | 1131 ₽ | |
| 13 | 732601197 |
Bolt m8, short Bombardier |
1 | 45-55 дней | 1421 ₽ | |
| 14 | 234081410 |
Flat washer 8 mm Bombardier |
3 | 45-55 дней | 76 ₽ | |
| 15 | 232581414 |
Hex. elastic stop nut m8 Bombardier |
1 | 45-55 дней | 52 ₽ | |
| 16 | 233281414 |
Hex. flanged elastic nut m8 Bombardier |
1 | 45-55 дней | 128 ₽ | |
| 17 | 503190716 |
Rh spring Bombardier |
1 | 45-55 дней | 4934 ₽ | |
| 18 | 503190718 |
Lh spring Bombardier |
1 | 45-55 дней | 5225 ₽ | |
| 19 | 503191539 |
Spring support Bombardier |
1 | 45-55 дней | 922 ₽ | |
| 20 | 234082410 |
Flat washer 8 mm Bombardier |
2 | 45-55 дней | 123 ₽ | |
| 21 | 861805547 |
Retainer cushion Bombardier |
2 | 45-55 дней | 768 ₽ | |
| 22 | 205082544 |
Socket head screw m8 x 25 Bombardier |
2 | 45-55 дней | 104 ₽ | |
| 23 | 233281414 |
Hex. flanged elastic nut m8 Bombardier |
2 | 45-55 дней | 128 ₽ | |
| 24 | 503190387 |
Shaft Bombardier |
1 | 45-55 дней | 3409 ₽ | |
| 25 | 503190422 |
Bushing Bombardier |
1 | 45-55 дней | 1666 ₽ | |
| 26 | 503190328 |
Washer Bombardier |
2 | 45-55 дней | 1070 ₽ | |
| 27 | 503168800 |
Retaining ring Bombardier |
2 | 45-55 дней | 1193 ₽ | |
| 28 |
Wheel 165 includes 28 to 29 Arctic Cat |
1 | 45-55 дней | 0 ₽ |
