Rear Suspension для Bombardier SUMMIT X 800RE XM 2013 г. запчасти купить, цена

Доставка из США до Москвы 90 руб. за 100 грамм

Доставка

Доставка из США, ОАЭ или из Германии в Москву
Доставка со складов в Москве

Скидка 5% от суммы заказа более 30 000 руб.

Оплата

Наличный способ оплаты
Банковской картой Visa, Mastercard

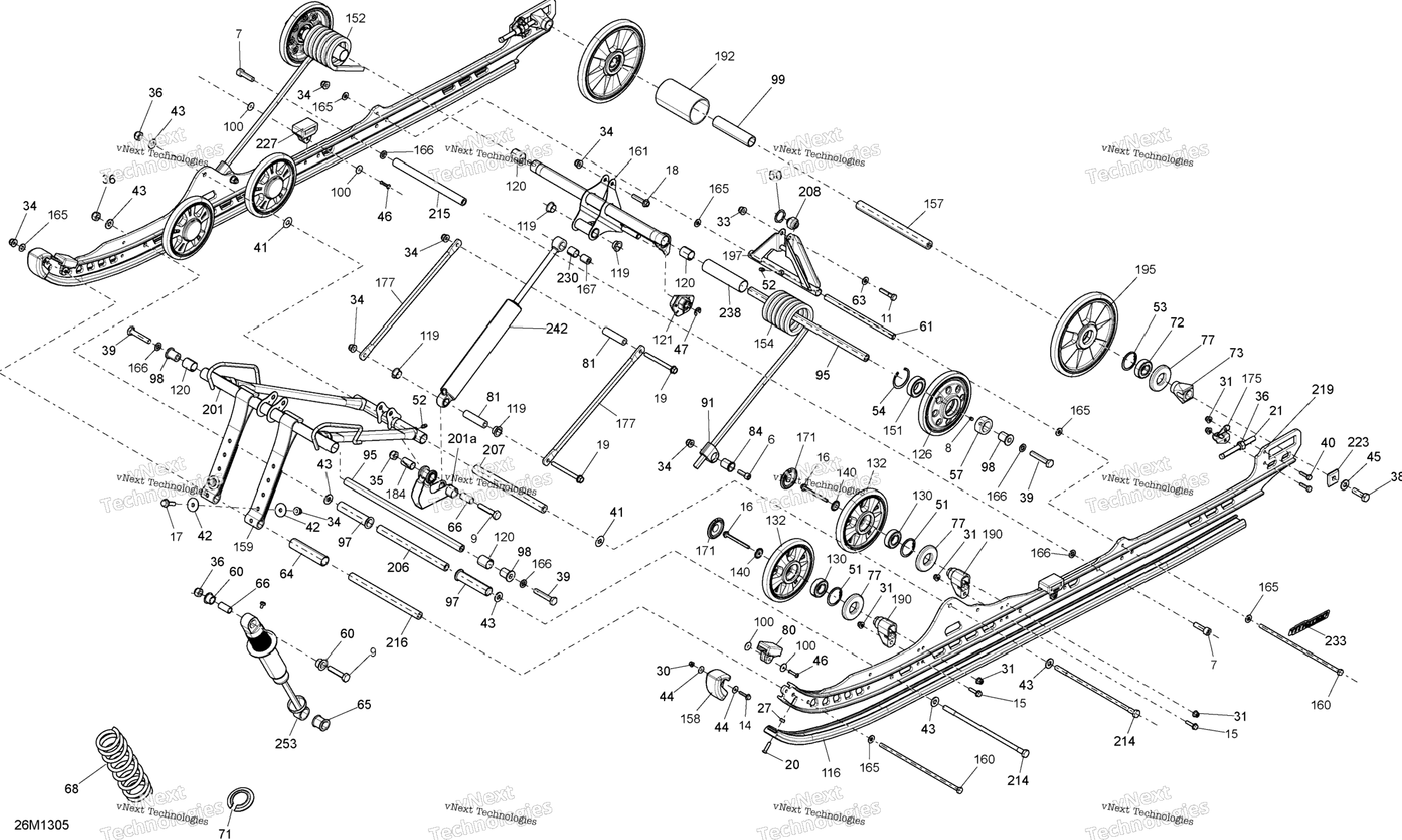

№	Номер запчасти	Наименование	Кол-во	Срок поставки/дней	Цена
6	205082554	Socket screw m8 x 25 Bombardier	2	45-55 дней	263 ₽
7	205503554	Socket head screw m10 x 35 Bombardier	2	45-55 дней	941 ₽
8	206260844	Socket set screw m6 x 8 Bombardier	2	45-55 дней	190 ₽
9	207005044	Hex. screw m10 x 1.5 x 50 Bombardier	1	45-55 дней	473 ₽
9	207005044	Hex. screw m10 x 1.5 x 50 xm Bombardier	1	45-55 дней	473 ₽
11	207084044	Hex. screw m8 x 40 xm Bombardier	1	45-55 дней	153 ₽
14	207652544	Hex. flanged screw m5 x 25 Bombardier	2	45-55 дней	153 ₽
15	207662556	Hex. flanged screw m6 x 25 Bombardier	4	45-55 дней	552 ₽
16	207667056	Hex. flange screw m6 x 70 Bombardier	4	45-55 дней	552 ₽
17	207683044	Hex. flanged screw m8 x 30 xm Bombardier	2	45-55 дней	196 ₽
18	207684044	Hex. flanged screw m8 x 40 Bombardier	1	45-55 дней	190 ₽
19	207688544	Hex. flanged scew Bombardier	2	45-55 дней	216 ₽
20	208562531	Phillips screw m6 x 25 163 x black Bombardier	1	45-55 дней	263 ₽
20	208562531	Phillips screw m6 x 25 154 x black Bombardier	1	45-55 дней	263 ₽
20	208562531	Phillips screw m6 x 25 146 x black Bombardier	1	45-55 дней	263 ₽
20	208562531	Phillips screw m6 x 25 146 x yellow Bombardier	1	45-55 дней	263 ₽
20	208562531	Phillips screw m6 x 25 154 x yellow Bombardier	1	45-55 дней	263 ₽
20	208562531	Phillips screw m6 x 25 163 x yellow Bombardier	1	45-55 дней	263 ₽
21	230100054	Hex screw m10 x 100 Bombardier	2	45-55 дней	805 ₽
27	232561414	Elastic stop nut m6 163 x black Bombardier	1	45-55 дней	236 ₽
27	232561414	Elastic stop nut m6 154 x black Bombardier	1	45-55 дней	236 ₽
27	232561414	Elastic stop nut m6 146 x black Bombardier	1	45-55 дней	236 ₽
27	232561414	Elastic stop nut m6 146 x yellow Bombardier	1	45-55 дней	236 ₽
27	232561414	Elastic stop nut m6 154 x yellow Bombardier	1	45-55 дней	236 ₽
27	232561414	Elastic stop nut m6 163 x yellow Bombardier	1	45-55 дней	236 ₽
30	233251414	Hex. flanged elastic nut m5 Bombardier	2	45-55 дней	251 ₽
31	233261466	Hex. flanged elastic nut m6 Bombardier	4	45-55 дней	251 ₽
31	233261466	Hex. flanged elastic nut m6 Bombardier	8	45-55 дней	251 ₽
33	233281416	Hex. elastic flanged nut m8 xm Bombardier	1	45-55 дней	190 ₽
34	233281466	Elastic flang nut m8 Bombardier	1	45-55 дней	153 ₽
34	233281466	Elastic flang nut m8 Bombardier	2	45-55 дней	153 ₽
34	233281466	Elastic flang nut m8 Bombardier	1	45-55 дней	153 ₽
34	233281466	Elastic flang nut m8 Bombardier	1	45-55 дней	153 ₽
34	233281466	Elastic flang nut m8 xm Bombardier	2	45-55 дней	153 ₽
34	233281466	Elastic flang nut m8 Bombardier	2	45-55 дней	153 ₽
35	233601416	Elastic locking nut m10 x 1.5 xm Bombardier	1	45-55 дней	216 ₽
36	233601466	Elastic locking nut m10 Bombardier	1	45-55 дней	263 ₽
36	233601466	Elastic locking nut m10 Bombardier	1	45-55 дней	263 ₽
36	233601466	Elastic locking nut m10 xm Bombardier	1	45-55 дней	263 ₽
36	233601466	Elastic locking nut m10 Bombardier	2	45-55 дней	263 ₽
38	250000592	Hex cap screw nylon m10 x 35 Bombardier	2	45-55 дней	552 ₽
39	250000605	Hex. screws.grip m10 x 55 Bombardier	2	45-55 дней	941 ₽
39	250000605	Hex. screws.grip m10 x 55 Bombardier	2	45-55 дней	941 ₽
40	250000619	Hex screw m6 x 25 Bombardier	4	45-55 дней	153 ₽
41	250200032	Washer xm Bombardier	2	45-55 дней	643 ₽
42	250200128	Flat washer 8 mm xm Bombardier	4	45-55 дней	263 ₽
43	250200138	Washer Bombardier	4	45-55 дней	263 ₽
43	250200138	Washer Bombardier	2	45-55 дней	263 ₽
44	250200140	Washer Bombardier	4	45-55 дней	153 ₽
45	250200141	Conical spring washer m10 xm Bombardier	2	45-55 дней	263 ₽
46	293150142	Pop rivet 3/16" summit Bombardier	4	45-55 дней	271 ₽
47	293370013	E-circlip xm Bombardier	2	45-55 дней	153 ₽
50	293370090	Inner circlip xm Bombardier	1	45-55 дней	2532 ₽
51	415129371	Retaining ring Bombardier	1	45-55 дней	1149 ₽
52	408200700	Grease fitting xm Bombardier	1	45-55 дней	427 ₽
52	408200700	Grease fitting xm Bombardier	2	45-55 дней	427 ₽
53	415129371	Retaining ring xm Bombardier	1	45-55 дней	1149 ₽
54	415129780	Retaining ring xm Bombardier	1	45-55 дней	1786 ₽
57	503168800	Retaining ring Bombardier	2	45-55 дней	1629 ₽
60	503189117	Urethane bushing x Bombardier	2	45-55 дней	903 ₽
61	503189156	Pivot arm axle Bombardier	1	45-55 дней	2723 ₽
63	503189157	Washer xm Bombardier	1	45-55 дней	412 ₽
64	503189265	Spacer xm Bombardier	1	45-55 дней	612 ₽
65	503189271	Bushing x Bombardier	1	45-55 дней	1374 ₽
66	503189282	Bushing x Bombardier	1	45-55 дней	548 ₽
66	503189282	Bushing xm Bombardier	1	45-55 дней	548 ₽
68	503193249	Black spring x Bombardier	1	45-55 дней	8585 ₽
71	503194270	Spring stopper x Bombardier	1	45-55 дней	2219 ₽
72	503190396	Ball bearing xm Bombardier	1	45-55 дней	1799 ₽
73	503190428	Rear wheel spacer xm Bombardier	2	45-55 дней	780 ₽
77	503190434	Labyrinth seal xm Bombardier	2	45-55 дней	554 ₽
77	503190434	Labyrinth seal Bombardier	4	45-55 дней	554 ₽
80	503190576	Rubber stopper xm Bombardier	2	45-55 дней	1317 ₽
81	503190643	Axle bar (long) Bombardier	2	45-55 дней	2004 ₽
84	861805547	Retainer cushion Bombardier	2	45-55 дней	1048 ₽
91	861805547	Spring support Bombardier	2	45-55 дней	1048 ₽
95	503191215	Upper shaft Bombardier	1	45-55 дней	4644 ₽
95	503191215	Upper shaft Bombardier	1	45-55 дней	4644 ₽
97	503191259	Center bushing Bombardier	2	45-55 дней	1155 ₽
98	503191262	Bushing Bombardier	2	45-55 дней	1786 ₽
98	503191262	Bushing Bombardier	2	45-55 дней	1786 ₽
99	503191263	Rear spacer xm Bombardier	1	45-55 дней	2017 ₽
100	503191273	Washer summit Bombardier	8	45-55 дней	153 ₽
116	503191501	Slider shoe 163" 163 x black Bombardier	1	45-55 дней	5352 ₽
116	503191499	Black, slider 146 146 x black Bombardier	1	45-55 дней	4341 ₽
116	503191198	Black, slider 154 154 x black Bombardier	1	45-55 дней	4341 ₽
116	503191499	Black, slider 146 146 x yellow Bombardier	1	45-55 дней	4341 ₽
116	503191198	Black, slider 154 154 x yellow Bombardier	1	45-55 дней	4341 ₽
116	503191501	Slider shoe 163" 163 x yellow Bombardier	1	45-55 дней	5352 ₽
119	503191555	Swivel bushing xm Bombardier	2	45-55 дней	748 ₽
119	503191555	Swivel bushing xm Bombardier	2	45-55 дней	748 ₽
120	503191556	Extended bushing xm Bombardier	1	45-55 дней	748 ₽
120	503191556	Extended bushing xm Bombardier	2	45-55 дней	748 ₽
121	503191566	Rh cam adjuster xm Bombardier	1	45-55 дней	1795 ₽
121	503191565	Lh cam adjuster xm Bombardier	1	45-55 дней	1795 ₽
126	503192808	Black wheel ass'y 155 mm xm Bombardier	2	45-55 дней	6059 ₽
130	503190396	Ball bearing Bombardier	1	45-55 дней	1799 ₽
132	503191755	Black wheel ass'y, 152 mm Bombardier	4	45-55 дней	6059 ₽
140	503191820	Wheel cup m6 Bombardier	4	45-55 дней	600 ₽
151	503193548	Ball bearing xm Bombardier	1	45-55 дней	2219 ₽
152	503193002	Black, rh spring square summit Bombardier	1	45-55 дней	11414 ₽
154	503193003	Black, lh spring square summit Bombardier	1	45-55 дней	11414 ₽
157	503192276	Rear wheel axle xm Bombardier	1	45-55 дней	10473 ₽
158	503192299	Runner protector Bombardier	2	45-55 дней	3028 ₽
159	503192360	Stopper strap xm Bombardier	2	45-55 дней	2622 ₽
160	503192440	Bolt m8 x 248mm Bombardier	1	45-55 дней	3836 ₽
160	503192440	Bolt m8 x 248mm Bombardier	1	45-55 дней	3836 ₽
161	503193118	Rear arm xm Bombardier	1	45-55 дней	22903 ₽
165	503192494	Washer Bombardier	4	45-55 дней	399 ₽
165	503192494	Washer Bombardier	2	45-55 дней	399 ₽
166	503192496	Washer Bombardier	2	45-55 дней	153 ₽
166	503192496	Washer Bombardier	2	45-55 дней	153 ₽
166	503192496	Washer Bombardier	2	45-55 дней	153 ₽
167	503196509	Rear shock axle Bombardier	1	45-55 дней	1311 ₽
171	503192771	Black, wheel cap Bombardier	4	45-55 дней	292 ₽
175	503192583	Tensioner Bombardier	2	45-55 дней	753 ₽
177	503192900	Acceleration link rod Bombardier	2	45-55 дней	3531 ₽
184	503193037	Bushing xm Bombardier	1	45-55 дней	2017 ₽
190	503193894	Casted support Bombardier	4	45-55 дней	1643 ₽
192	503193097	Bushing xm Bombardier	1	45-55 дней	967 ₽
195	503193098	Black, wheel ass'y 200 mm xm, (includes 53, 72, 77) Bombardier	2	45-55 дней	6562 ₽
197	503193699	Pivot arm welded xm Bombardier	1	45-55 дней	15759 ₽
201a	503193464	Rocker Bombardier	1	45-55 дней	10100 ₽
201	503193116	Front arm ass'y xm	1		Узнать цены
206	503193435	Pivot axle Bombardier	1	45-55 дней	4946 ₽
207	503193702	Pivot axle Bombardier	1	45-55 дней	8989 ₽
208	503193148	Spherical bearing xm	1		Узнать цены
214	503193227	Bolt m10 x 251mm Bombardier	1	45-55 дней	2118 ₽
214	503193227	Bolt m10 x 251mm xm Bombardier	1	45-55 дней	2118 ₽
215	503193322	Lower shaft Bombardier	1	45-55 дней	5926 ₽
216	503193332	Strap axle Bombardier	1	45-55 дней	5219 ₽
219	503193833	Black mat runner 163" 163 x black Bombardier	1	45-55 дней	36879 ₽
219	503193828	Black mat runner 154" 154 x black Bombardier	1	45-55 дней	36879 ₽
219	503193827	Black mat runner 146" 146 x black Bombardier	1	45-55 дней	36879 ₽
219	503193344	Yellow runner 146" 146 x yellow Bombardier	1	45-55 дней	33917 ₽
219	503193336	Yellow runner 154" 154 x yellow Bombardier	1	45-55 дней	27751 ₽
219	503193335	Yellow runner 163" 163 x yellow	1		Узнать цены
223	503193386	Axle slider xm Bombardier	1	45-55 дней	502 ₽
227	503193504	Rubber stopper xm Bombardier	2	45-55 дней	1634 ₽
230	505072663	Leg cushion Bombardier	2	45-55 дней	972 ₽
233	516005484	Runner decal xm Bombardier	1	45-55 дней	3312 ₽
238	503193218	Bushing xm Bombardier	2	45-55 дней	1311 ₽
242	503193529	Rear shock x Bombardier	1	45-55 дней	54664 ₽
253	503193528	Center shock x Bombardier	1	45-55 дней	54664 ₽
