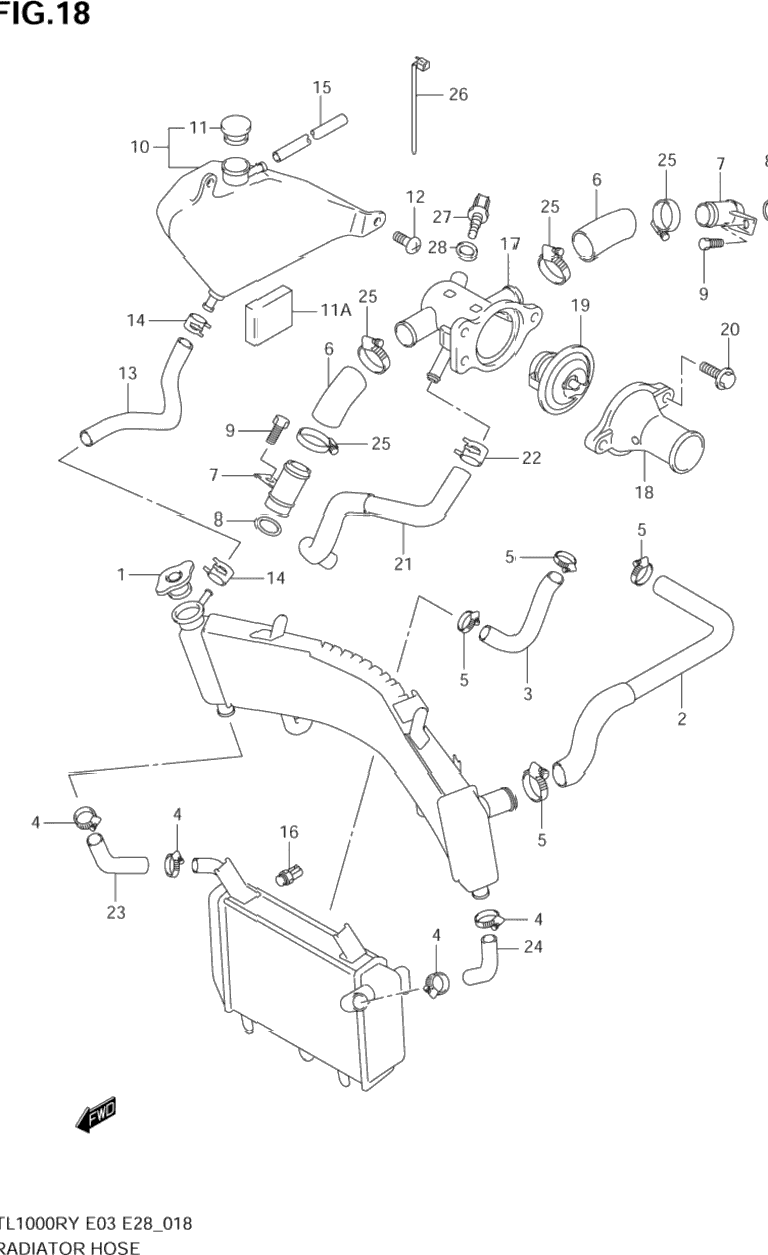

| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| 1 | 17730-08J00 |
Cap, radiator Suzuki Moto |
1 | 45-55 дней | 5111 ₽ | |
| 2 | 17851-02FA0 | Hose, radiator inlet | 1 | Узнать цены | ||
| 3 | 17852-02FA0 |
Hose, radiator outlet Suzuki Moto |
1 | 45-55 дней | 2847 ₽ | |
| 4 | 09402-28511 |
Clamp Suzuki Moto |
4 | 45-55 дней | 827 ₽ | |
| 5 | 09402-38511 |
Clamp Suzuki Moto |
4 | 45-55 дней | 1402 ₽ | |
| 6 | 17853-02F00 |
Hose, connector inlet Suzuki Moto |
2 | 45-55 дней | 1135 ₽ | |
| 7 | 17890-06G20 |
Union Suzuki Moto |
2 | 45-55 дней | 1735 ₽ | |
| 8 | 09280-18009 |
O ring Suzuki Moto |
2 | 45-55 дней | 700 ₽ | |
| 9 | 07130-0612A |
Bolt Suzuki Moto |
2 | 45-55 дней | 296 ₽ | |
| 10 | 17910-02FA0 |
Tank assy, reservoir Suzuki Moto |
1 | 45-55 дней | 6704 ₽ | |
| 11 | 17931-02FA0 |
.cap Suzuki Moto |
1 | 45-55 дней | 668 ₽ | |
| 11A | 51827-01A00 |
Cushion Suzuki Moto |
1 | 45-55 дней | 631 ₽ | |
| 12 | 01550-0625A |
Bolt Suzuki Moto |
2 | 45-55 дней | 233 ₽ | |
| 13 | 17900-27810 |
Hose, inlet Suzuki Moto |
1 | 45-55 дней | 2250 ₽ | |
| 14 | 09401-08411 |
Clip Suzuki Moto |
2 | 45-55 дней | 212 ₽ | |
| 15 | 17900-35810 |
Hose, reservoir tank overflow Suzuki Moto |
1 | 45-55 дней | 3624 ₽ | |
| 16A | 17689-50F00 |
.o ring Suzuki Moto |
1 | 45-55 дней | 286 ₽ | |
| 16 | 17680-33E00 |
Switch, radiator fan Suzuki Moto |
1 | 45-55 дней | 5826 ₽ | |
| 17 | 17662-02F11 |
Connector, thermostat inlet Suzuki Moto |
1 | 45-55 дней | 6574 ₽ | |
| 18 | 17663-17G00 |
Cap, thermostat connector Suzuki Moto |
1 | 45-55 дней | 2999 ₽ | |
| 19 | 17670-50F00 |
Thermostat, water Suzuki Moto |
1 | 45-55 дней | 4053 ₽ | |
| 20 | 01550-0616A |
Bolt Suzuki Moto |
2 | 45-55 дней | 233 ₽ | |
| 21 | 17856-02FA0 |
Hose, connector to water pump Suzuki Moto |
1 | 45-55 дней | 3982 ₽ | |
| 22 | 09401-12414 |
Clip Suzuki Moto |
2 | 45-55 дней | 390 ₽ | |
| 23 | 17854-02FA0 | Hose, radiator joint rh | 1 | Узнать цены | ||
| 24 | 17855-02FA0 | Hose, radiator joint lh | 1 | Узнать цены | ||
| 25 | 09402-28511 |
Clamp Suzuki Moto |
4 | 45-55 дней | 827 ₽ | |
| 26 | 09407-14403 |
Clamp, reservoir overflow hos Suzuki Moto |
2 | 45-55 дней | 268 ₽ | |
| 27-1 | 13650-51G10 |
Sensor, water temperature model w/x/y/k1/k2 Suzuki Moto |
1 | 45-55 дней | 10900 ₽ | |
| 27-2 | 13650-10G00 |
Sensor, water temperature model k3 Suzuki Moto |
1 | 45-55 дней | 10492 ₽ | |
| 28-1 | 09168-12016 |
Gasket, temperature sensor model w/x/y/k1 Suzuki Moto |
1 | 45-55 дней | 236 ₽ | |
| 28-2 | 09168-12017 |
Gasket, temperature sensor model k2/k3 Suzuki Moto |
1 | 45-55 дней | 233 ₽ |
