| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| -- |

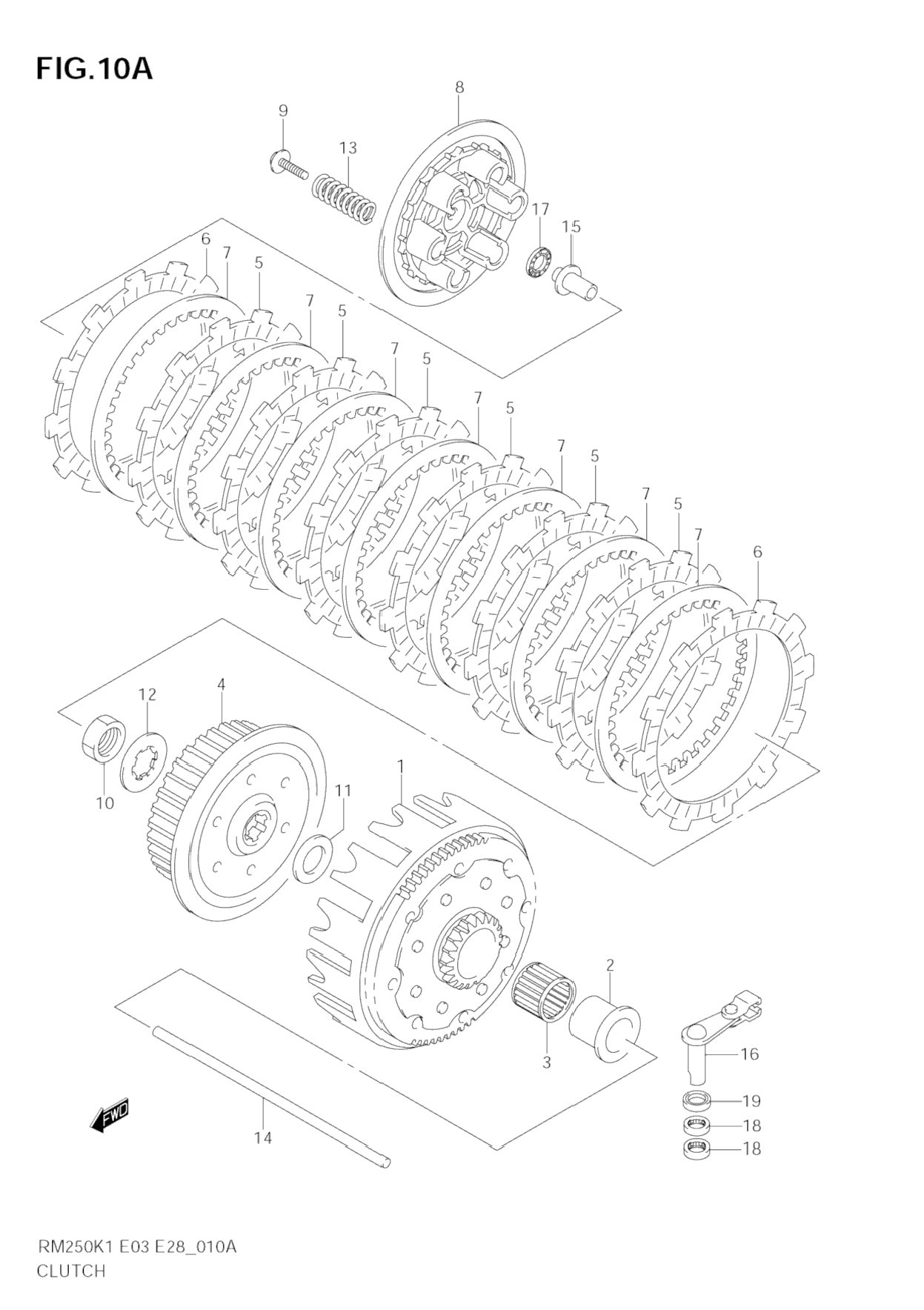

Refer to fig.10b(f- 4) for Kawasaki |
1 | 45-55 дней | 4177 ₽ | ||
| 1 | 21200-37F10 |
Gear assy, primary driven nt:63/21 Suzuki Moto |
1 | 45-55 дней | 44615 ₽ | |
| 2 | 21251-37E01 |
Spacer, primary driven gear Suzuki Moto |
1 | 45-55 дней | 5821 ₽ | |
| 3 | 09263-29009 |
Bearing, primary driven 29x34x27 Suzuki Moto |
1 | 45-55 дней | 2849 ₽ | |
| 4-3 | 21410-37F40 | Hub, clutch sleeve model k5 | 1 | Узнать цены | ||
| 4-1 | 21410-37810 |
Hub, clutch sleeve model k3 Suzuki Moto |
1 | 45-55 дней | 13104 ₽ | |
| 4-2 | 21410-37E20 |
Hub, clutch sleeve model k4 Suzuki Moto |
1 | 45-55 дней | 17371 ₽ | |
| 5 | 21441-37F20 |
Plate, clutch drive no.1 Suzuki Moto |
6 | 45-55 дней | 2857 ₽ | |
| 6 | 21441-37F30 |
Plate, clutch drive no.2 Suzuki Moto |
2 | 45-55 дней | 1827 ₽ | |
| 7 | 21451-37F00 |
Plate, clutch driven Suzuki Moto |
7 | 45-55 дней | 1246 ₽ | |
| 8 | 21462-37F20 |
Disk, clutch pressure Suzuki Moto |
1 | 45-55 дней | 7913 ₽ | |
| 9 | 09116-05019 |
Bolt, clutch (5x25) Suzuki Moto |
6 | 45-55 дней | 309 ₽ | |
| 10 | 09140-18013 |
Nut, clutch sleeve hub Suzuki Moto |
1 | 45-55 дней | 1621 ₽ | |
| 11-1 | 09160-22067 |
Washer, clutch hub thr model k3,22x38x2 Suzuki Moto |
1 | 45-55 дней | 1158 ₽ | |
| 11-2 | 09160-22080 | Washer, clutch hub thr model k4/k5,22x38x3 | 1 | Узнать цены | ||
| 12-2 | 09167-22026 | Washer, clutch hub model k5,22x42x0.8 | 1 | Узнать цены | ||
| 12-1 | 09167-22021 |
Washer, clutch hub model k3/k4,22x42x0.8 Suzuki Moto |
1 | 45-55 дней | 228 ₽ | |
| 13 | 09440-18036 |
Spring, clutch Suzuki Moto |
6 | 45-55 дней | 880 ₽ | |
| 14 | 23110-37F00 |
Rod, clutch push Suzuki Moto |
1 | 45-55 дней | 2084 ₽ | |
| 15 | 23121-37F00 |
Piece, clutch push Suzuki Moto |
1 | 45-55 дней | 2729 ₽ | |
| 16 | 23200-37E02 |
Camshaft, clutch release Suzuki Moto |
1 | 45-55 дней | 7777 ₽ | |
| 17 | 09263-10002 |
Bearing, clutch release 10.1x22x2.8 Suzuki Moto |
1 | 45-55 дней | 1377 ₽ | |
| 18 | 09263-12024 |
Bearing, no.2 12x16x10 Suzuki Moto |
2 | 45-55 дней | 1710 ₽ | |
| 19 | 09285-12004 |
Seal, cl release camshaft 12x19x5 Suzuki Moto |
1 | 45-55 дней | 984 ₽ |
