| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |

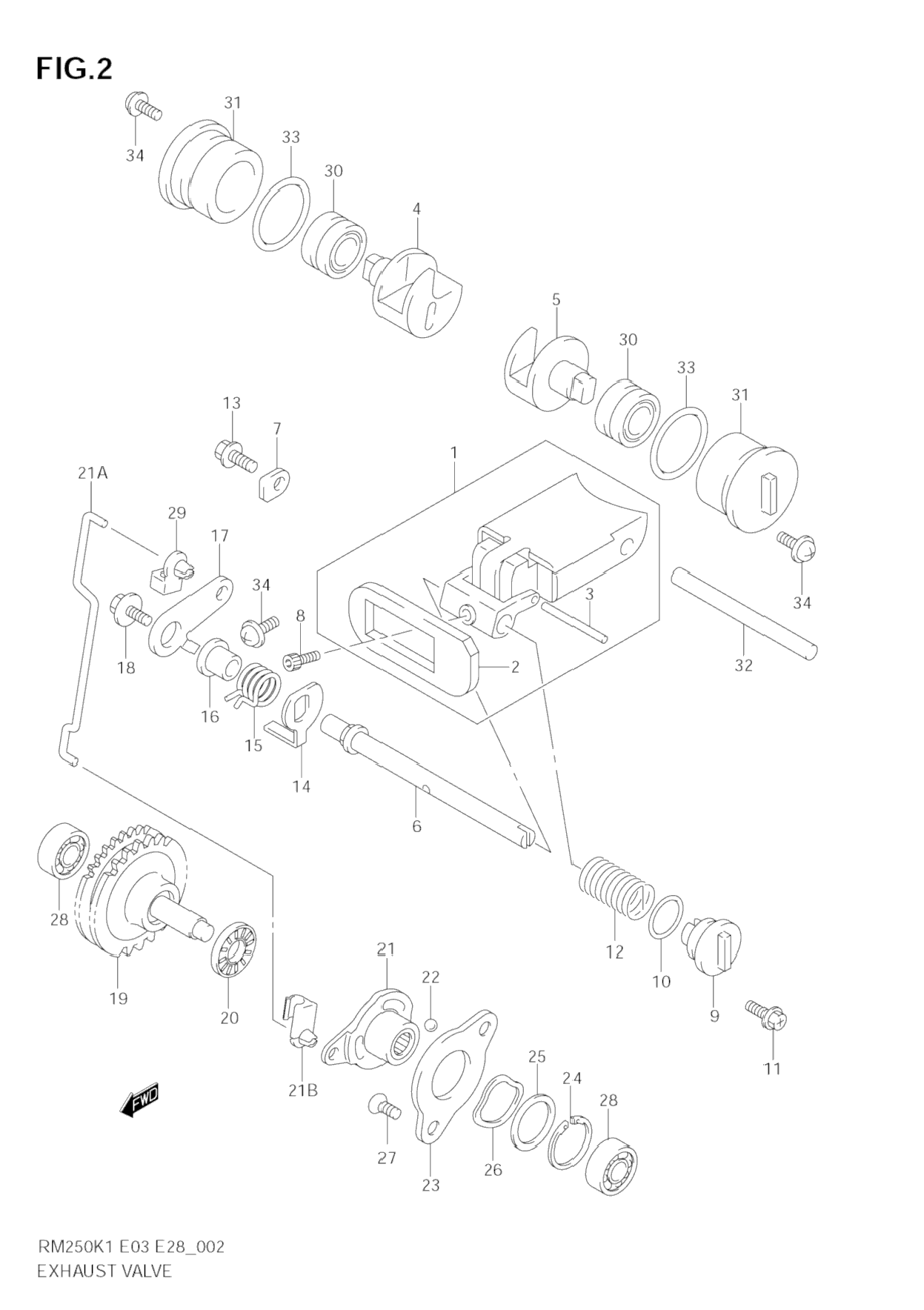

| -- | Refer to fig.2a(b-12) for | 1 | 0 ₽ | |||
| 1 | 11206-37F00 | Valve, exhaust main | 1 | Узнать цены | ||
| 2 | 11261-37F00 | .guide, exhaust valve | 1 | Узнать цены | ||
| 3 | 09261-04013 | .pin, exhaust valve | 1 | Узнать цены | ||
| 4 | 11255-37F00 | Valve, exhaust side rh | 1 | Узнать цены | ||
| 5 | 11256-37F00 | Valve, exhaust side lh | 1 | Узнать цены | ||
| 6 | 11259-37E00 | Shaft, exhaust valve | 1 | Узнать цены | ||
| 7 | 24741-21A00 |
Retainer, ex valve stop Suzuki Moto |
1 | 45-55 дней | 318 ₽ | |
| 8 | 09106-04003 |
Bolt (4x8) Suzuki Moto |
1 | 45-55 дней | 213 ₽ | |
| 9 | 11274-37E11 | Cap, exhaust valve | 1 | Узнать цены | ||
| 10 | 09280-15006 |
O ring (d:1.9,id:14.5) Suzuki Moto |
1 | 45-55 дней | 331 ₽ | |
| 11 | 02162-0512A |
Bolt Suzuki Moto |
2 | 45-55 дней | 203 ₽ | |
| 12 | 11257-37F00 | Spring | 1 | Узнать цены | ||
| 13 | 01547-0610B |
Bolt Suzuki Moto |
1 | 45-55 дней | 290 ₽ | |
| 14 | 11267-00B21 |
Lever, exhaust valve no.2 Suzuki Moto |
1 | 45-55 дней | 536 ₽ | |
| 15 | 09444-16010 | Spring | 1 | Узнать цены | ||
| 16 | 11268-01B01 |
Spacer Suzuki Moto |
1 | 45-55 дней | 1039 ₽ | |
| 17 | 11266-37F00 | Lever, exhaust valve no.1 | 1 | Узнать цены | ||
| 18 | 09118-05005 |
Bolt (5x12) Suzuki Moto |
1 | 45-55 дней | 327 ₽ | |
| 19 | 12670-37E11 | Governor assy, exhaust valve | 1 | Узнать цены | ||
| 20 | 09263-10002 |
Bearing (10.1x22x2.8) Suzuki Moto |
1 | 45-55 дней | 1226 ₽ | |
| 21 | 12680-01830 | Actuator, exhaust valve | 1 | Узнать цены | ||
| 21B | 12686-36E00 |
Bush, exhaust valve no.2 Suzuki Moto |
1 | 45-55 дней | 244 ₽ | |
| 21A | 12685-37F00 |
Rod, exhaust valve Suzuki Moto |
1 | 45-55 дней | 572 ₽ | |
| 22 | 06111-06003 |
Ball Suzuki Moto |
3 | 45-55 дней | 144 ₽ | |
| 23 | 12682-01B02 |
Stator, actuator Suzuki Moto |
1 | 45-55 дней | 3698 ₽ | |
| 24 | 09380-19003 |
Circlip Suzuki Moto |
1 | 45-55 дней | 220 ₽ | |
| 25 | 09181-19004 |
Shim (19.1x25x0.3) Suzuki Moto |
1 | 45-55 дней | 387 ₽ | |
| 26 | 09164-19001 |
Lock washer Suzuki Moto |
1 | 45-55 дней | 564 ₽ | |
| 27 | 09120-05003 |
Screw (5x10) Suzuki Moto |
2 | 45-55 дней | 196 ₽ | |
| 28 | 09262-08005 |
Bearing Suzuki Moto |
2 | 45-55 дней | 1523 ₽ | |
| 29 | 12686-01B00 |
Bush, exhaust valve Suzuki Moto |
1 | 45-55 дней | 189 ₽ | |
| 30 | 09263-12026 |
Bearing, side valve Suzuki Moto |
2 | 45-55 дней | 5651 ₽ | |
| 31 | 11262-37F00 | Cap, ex side valve | 2 | Узнать цены | ||
| 32 | 09202-04020 | Pin | 1 | Узнать цены | ||
| 33 | 09280-29005 | O ring | 2 | Узнать цены | ||
| 34 | 02142-0512A |
Screw Suzuki Moto |
6 | 45-55 дней | 161 ₽ |
