| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| -- |

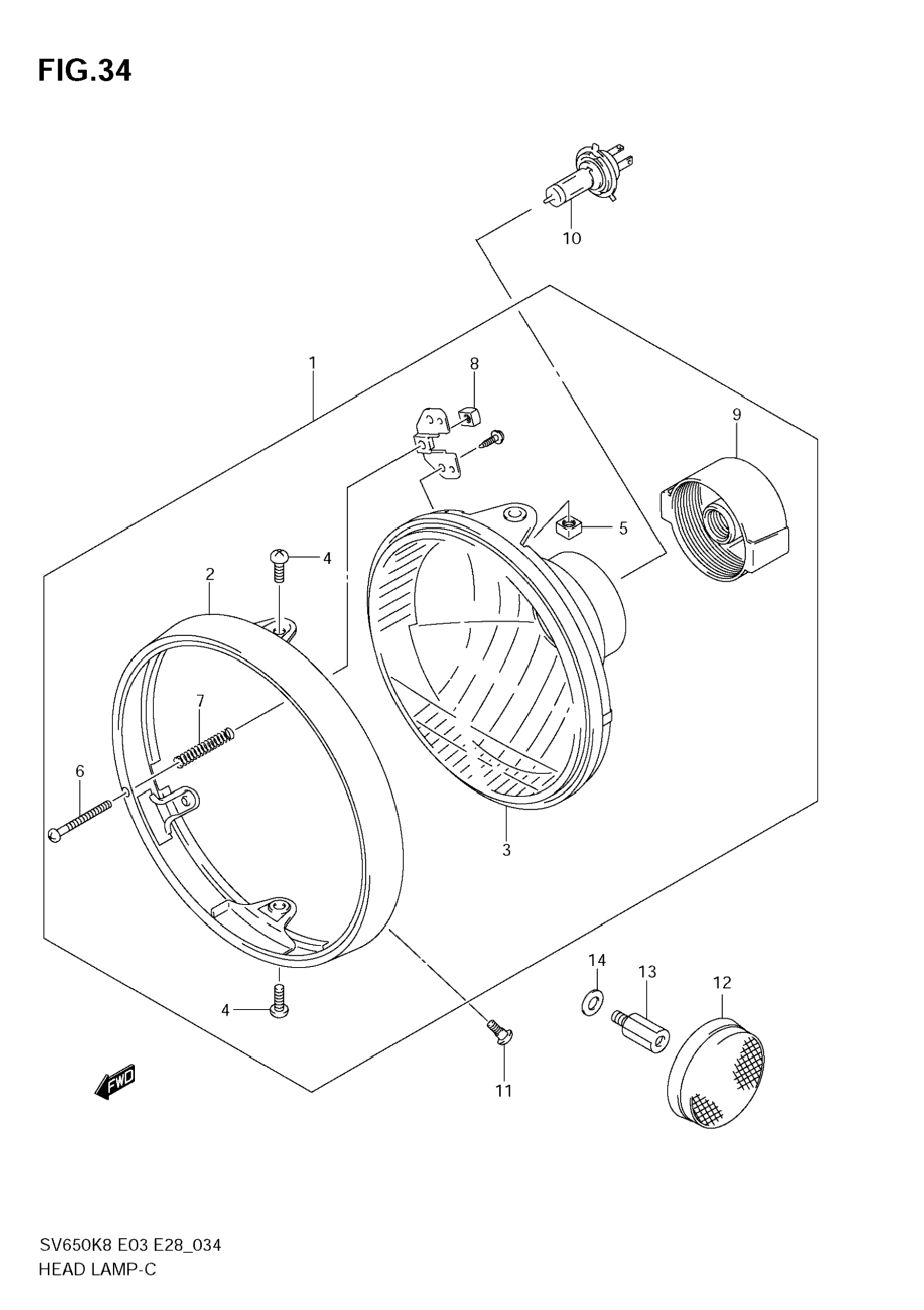

Refer to fig.35(e- 3) for Kawasaki |
1 | 45-55 дней | 3945 ₽ | ||
| 1 | 35100-19F00-999 |
Headlamp assy Suzuki Moto |
1 | 45-55 дней | 39166 ₽ | |
| 2 | 35111-19F00 |
.rim Suzuki Moto |
1 | 45-55 дней | 11085 ₽ | |
| 3 | 35121-19F00 |
.lamp unit Suzuki Moto |
1 | 45-55 дней | 16593 ₽ | |
| 4 | 35181-19F00 |
.screw (5x16) Suzuki Moto |
2 | 45-55 дней | 353 ₽ | |
| 5 | 35135-45900 |
.nut Suzuki Moto |
2 | 45-55 дней | 353 ₽ | |
| 6 | 35151-19F00 |
.screw, adjusting Suzuki Moto |
1 | 45-55 дней | 489 ₽ | |
| 7 | 35154-49200 |
.spring Suzuki Moto |
1 | 45-55 дней | 596 ₽ | |
| 8 | 35152-45600 |
.nut Suzuki Moto |
1 | 45-55 дней | 376 ₽ | |
| 9 | 35174-19F00 |
.cover, socket Suzuki Moto |
1 | 45-55 дней | 3277 ₽ | |
| 10 | 09471-12060 |
Bulb (12v60/55w,h4) Suzuki Moto |
1 | 45-55 дней | 3743 ₽ | |
| 11 | 09139-05038 |
Screw Suzuki Moto |
2 | 45-55 дней | 250 ₽ | |
| 12 | 35950-14A11 |
Reflex reflector assy, fr sid Suzuki Moto |
2 | 45-55 дней | 1941 ₽ | |
| 13 | 09119-05023 |
Bolt Suzuki Moto |
2 | 45-55 дней | 1339 ₽ | |
| 14 | 08322-0105B |
Washer Suzuki Moto |
2 | 45-55 дней | 284 ₽ |
