| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| -- |

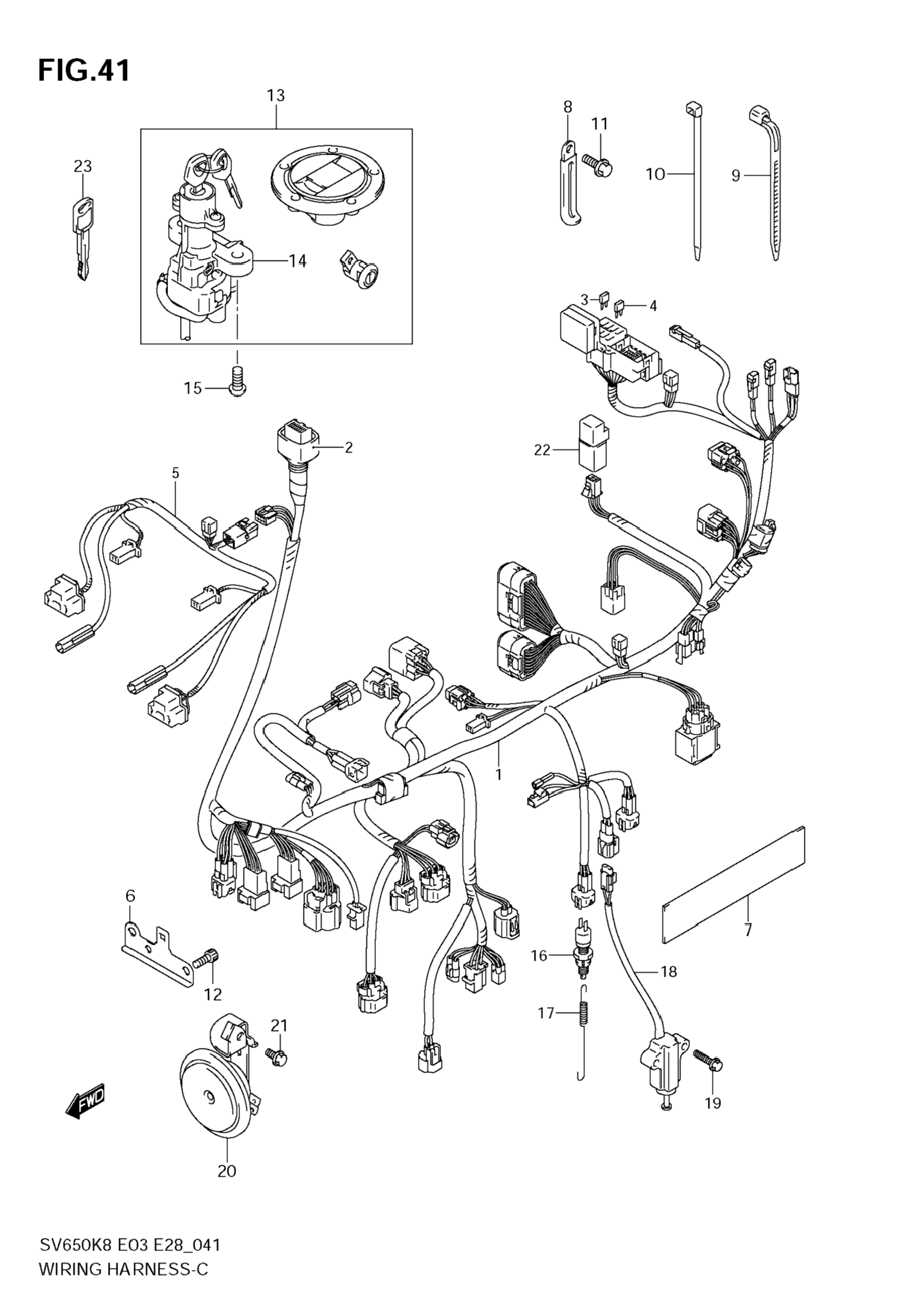

Refer to fig.42(e-12) for Kawasaki |
1 | 45-55 дней | 4177 ₽ | ||
| 1-2 | 36610-17GL0 | Harness, wiring, no.1 e33 | 1 | Узнать цены | ||
| 1-1 | 36610-17GM0 | Harness, wiring, no.1 | 1 | Узнать цены | ||
| 2 | 36618-33E00 |
.boot Suzuki Moto |
1 | 45-55 дней | 1006 ₽ | |
| 3 | 09481-10501 |
.fuse (10a) Suzuki Moto |
3 | 45-55 дней | 274 ₽ | |
| 4 | 09481-15501 |
.fuse (15a) Suzuki Moto |
3 | 45-55 дней | 274 ₽ | |
| 5 | 36620-16G10 |
Harness, wiring, no.2 Suzuki Moto |
1 | 45-55 дней | 18495 ₽ | |
| 6 | 36687-17G10 | Holder, coupler | 1 | Узнать цены | ||
| 7 | 33652-26E00 |
Protector (20x90x1.0) Suzuki Moto |
1 | 45-55 дней | 425 ₽ | |
| 8-2 | 09404-06434 |
Clamp (l:80) Suzuki Moto |
1 | 45-55 дней | 232 ₽ | |
| 8-1 | 09404-06429 |
Clamp (l:45) Suzuki Moto |
2 | 45-55 дней | 243 ₽ | |
| 9-2 | 09407-14403 |
Clamp (l:125) Suzuki Moto |
1 | 45-55 дней | 301 ₽ | |
| 9-3 | 09407-18402 |
Clamp (l:165) Suzuki Moto |
1 | 45-55 дней | 291 ₽ | |
| 9-1 | 09407-11401 |
Clamp (l:95) Suzuki Moto |
1 | 45-55 дней | 302 ₽ | |
| 10 | 09407-14407 |
Clamp (l:145) Suzuki Moto |
1 | 45-55 дней | 410 ₽ | |
| 11-2 | 01550-0610A |
Bolt, wiring harness Suzuki Moto |
1 | 45-55 дней | 261 ₽ | |
| 11-1 | 01550-0612B |
Bolt, wiring harness Suzuki Moto |
1 | 45-55 дней | 318 ₽ | |
| 12 | 07130-0610B |
Screw, wiring harness Suzuki Moto |
1 | 45-55 дней | 433 ₽ | |
| 13-1 | 37000-16841 |
Lock set Suzuki Moto |
1 | 45-55 дней | 44322 ₽ | |
| 13-2 | 37000-16851 |
Lock set e33 Suzuki Moto |
1 | 45-55 дней | 47069 ₽ | |
| 14 | 37100-16G01 |
.lock assy, steering Suzuki Moto |
1 | 45-55 дней | 21689 ₽ | |
| 15 | 09139-08016 |
Bolt (8x20) Suzuki Moto |
2 | 45-55 дней | 454 ₽ | |
| 16 | 37740-31D00 |
Switch assy, stop lamp Suzuki Moto |
1 | 45-55 дней | 3812 ₽ | |
| 17 | 09443-06016 |
Spring Suzuki Moto |
1 | 45-55 дней | 380 ₽ | |
| 18 | 37840-16G00 |
Switch assy, side stand Suzuki Moto |
1 | 45-55 дней | 10135 ₽ | |
| 19 | 01550-06257 |
Bolt Suzuki Moto |
2 | 45-55 дней | 309 ₽ | |
| 20 | 38500-17G11 |
Horn assy Suzuki Moto |
1 | 45-55 дней | 10660 ₽ | |
| 21 | 01550-0612B |
Bolt, horn Suzuki Moto |
1 | 45-55 дней | 318 ₽ | |
| 22 | 38740-24X50 |
Relay assy, fuel pump Suzuki Moto |
1 | 45-55 дней | 6105 ₽ | |
| 23 | 37146-33E00 |
Key, blank opt Suzuki Moto |
1 | 45-55 дней | 2863 ₽ |
