| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |

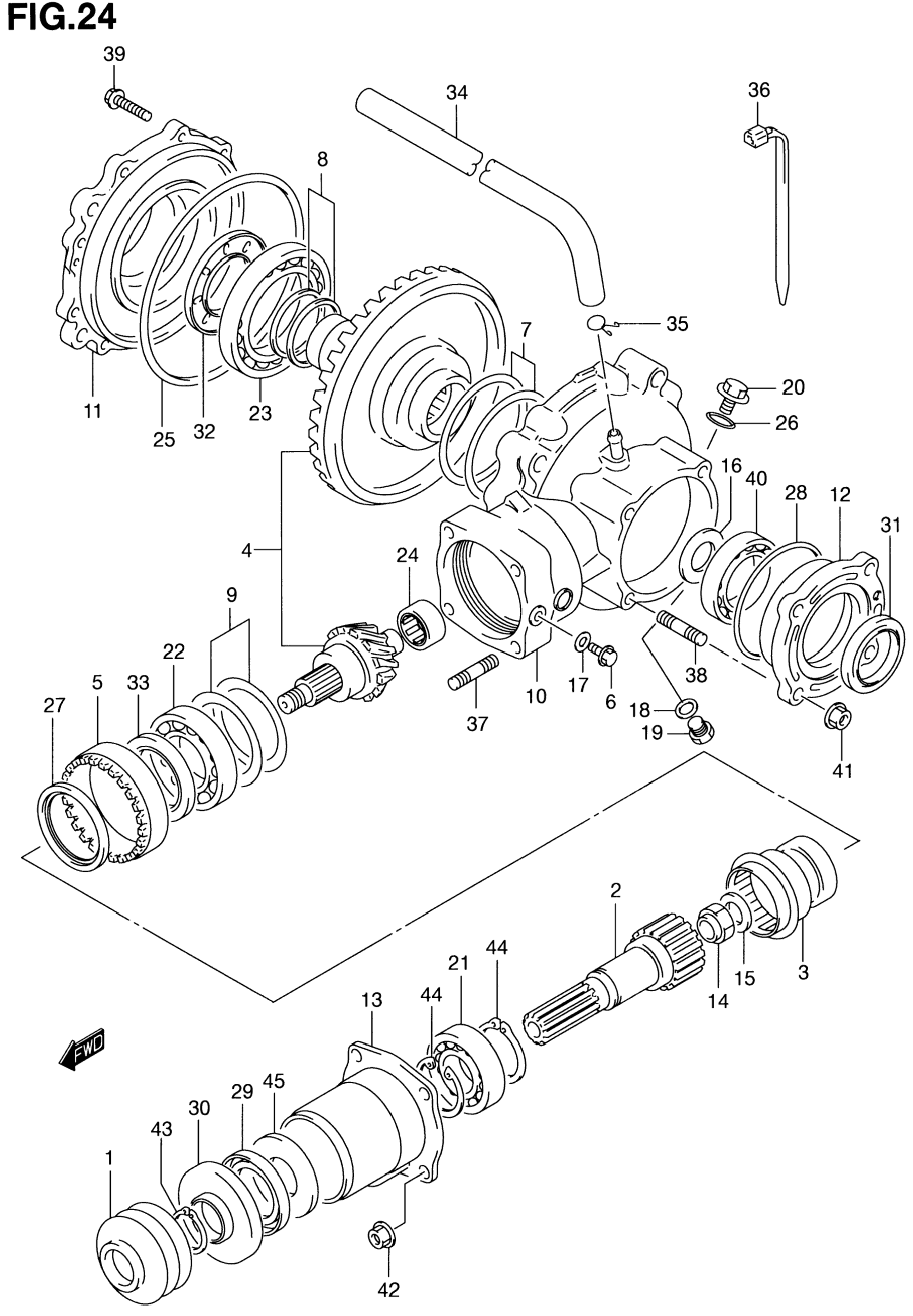

| REFER TO FIG.24 | 1 | Узнать цены | ||||
| 1 | 27153-44D62 | Boot, rr final drive | 1 | Узнать цены | ||
| 2 | 27155-44D62 | Shaft, rear final | 1 | Узнать цены | ||
| 3 | 27172-18B61 | Coupling, rear | 1 | Узнать цены | ||
| 4 | 27300-18860 | Gear set, final bevel nt:10/36 | 1 | Узнать цены | ||
| 5 | 27312-09F50 | Stopper, rear final | 1 | Узнать цены | ||
| 6 | 27313-18A00 |
Pin, bearing stopper Suzuki Moto |
1 | 45-55 дней | 410 ₽ | |
| 7 | 27326-18810 |
Shim set, final drive gr t:0.30/0.35/0.40/0.50/0.60 Suzuki Moto |
1 | 45-55 дней | 1534 ₽ | |
| 8 | 27327-34810 |
Shim set, driven gear brg t:0.35/0.40/0.50/0.60 Suzuki Moto |
1 | 45-55 дней | 3931 ₽ | |
| 9 | 27445-18820 | Shim set, final drive gr t:0.30/0.35/0.40/0.50/0.60 | 1 | Узнать цены | ||
| 10 | 27450-18B30 | Case, rear final gr | 1 | Узнать цены | ||
| 11 | 27461-44D30 | Case, rear final driven,rh | 1 | Узнать цены | ||
| 12 | 27462-44D10 | Case, rear final driven,lh | 1 | Узнать цены | ||
| 13 | 27470-44D61 | Housing, rr final drive | 1 | Узнать цены | ||
| 14 | 09159-16003 |
Nut, rear drive pinion Suzuki Moto |
1 | 45-55 дней | 410 ₽ | |
| 15 | 09160-16029 |
Washer, sec drive nut 16x29x4 Suzuki Moto |
1 | 45-55 дней | 649 ₽ | |
| 16 | 09160-45004 | Washer, final driven,lh 45x54x3 | 1 | Узнать цены | ||
| 17 | 09168-06023 |
Gasket, brg stopper pin 5.8x13x12 Suzuki Moto |
1 | 45-55 дней | 240 ₽ | |
| 18 | 09168-14004 |
Gasket, oil drain plug 13.8x18.8x0.4 Suzuki Moto |
1 | 45-55 дней | 189 ₽ | |
| 19 | 09247-14002 |
Plug, oil drain Suzuki Moto |
1 | 45-55 дней | 628 ₽ | |
| 20 | 09247-18001 |
Plug, gear oil filler Suzuki Moto |
1 | 45-55 дней | 903 ₽ | |
| 21 | 09262-30101 | Bearing, rear sft | 1 | Узнать цены | ||
| 22 | 27446-44D00 |
Bearing, final drive gr 40x80x18 Suzuki Moto |
1 | 45-55 дней | 28984 ₽ | |
| 23 | 09262-70001 |
Bearing, final driven,rh 70x110x13 Suzuki Moto |
1 | 45-55 дней | 14409 ₽ | |
| 24 | 09263-20062 |
Bearing, final drive pilot 20x34x18 Suzuki Moto |
1 | 45-55 дней | 4804 ₽ | |
| 25 | 09280-00020 |
O ring, bearing case,rh id:176.8,dd:3.6 Suzuki Moto |
1 | 45-55 дней | 2496 ₽ | |
| 26 | 09280-18004 |
O ring, gear oil filler id:17.8,dd:2.4 Suzuki Moto |
1 | 45-55 дней | 621 ₽ | |
| 27 | 09280-80001 |
O ring, final brg stopper id:79.8,dd:2.4 Suzuki Moto |
1 | 45-55 дней | 468 ₽ | |
| 28 | 09280-90001 |
O ring, bearing case,lh id:90.8,dd:2.4 Suzuki Moto |
1 | 45-55 дней | 3363 ₽ | |
| 29 | 27156-09F50 |
Seal, final driven Suzuki Moto |
1 | 45-55 дней | 1791 ₽ | |
| 30 | 27590-09F50 | Collar, output oil seal | 1 | Узнать цены | ||
| 31 | 09283-42011 |
Oil seal, final driven,lh 42x62x7.0 Suzuki Moto |
1 | 45-55 дней | 1515 ₽ | |
| 32 | 09283-48011 |
Oil seal, final driven,rh 48x88x7.0 Suzuki Moto |
1 | 45-55 дней | 2344 ₽ | |
| 33 | 09283-49001 | Oil seal, final drive 49x68x7.0 | 1 | Узнать цены | ||
| 34 | 09352-70103-00B |
Hose, breather (7x10.2x2000) l:2000?1140 Suzuki Moto |
1 | 45-55 дней | 1841 ₽ | |
| 35 | 09401-10403 |
Clip Suzuki Moto |
1 | 45-55 дней | 196 ₽ | |
| 36 | 09407-18402 |
Clamp (l:165) Suzuki Moto |
4 | 45-55 дней | 259 ₽ | |
| 37 | 01421-0820A |
Stud bolt, rr housing Suzuki Moto |
4 | 45-55 дней | 227 ₽ | |
| 38 | 01421-1030A |
Stud bolt, brg case,lh Suzuki Moto |
2 | 45-55 дней | 304 ₽ | |
| 39 | 01550-0825A |
Bolt, brg case,rh Suzuki Moto |
9 | 45-55 дней | 275 ₽ | |
| 40 | 08113-60097 |
Bearing, driven gr,lh Suzuki Moto |
1 | 45-55 дней | 6682 ₽ | |
| 41 | 08316-1010B |
Nut, rr lh case Suzuki Moto |
2 | 45-55 дней | 316 ₽ | |
| 42 | 08319-31087 |
Nut, rr final housing Suzuki Moto |
4 | 45-55 дней | 275 ₽ | |
| 43 | 08331-31309 |
Circlip, rr final drive Suzuki Moto |
1 | 45-55 дней | 304 ₽ | |
| 44 | 08331-4162A |
Circlip, final dr brg Suzuki Moto |
2 | 45-55 дней | 468 ₽ | |
| 45 | 09181-30139 |
Washer, rear final drive 30x38x1.0 Suzuki Moto |
1 | 45-55 дней | 435 ₽ |
