| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |

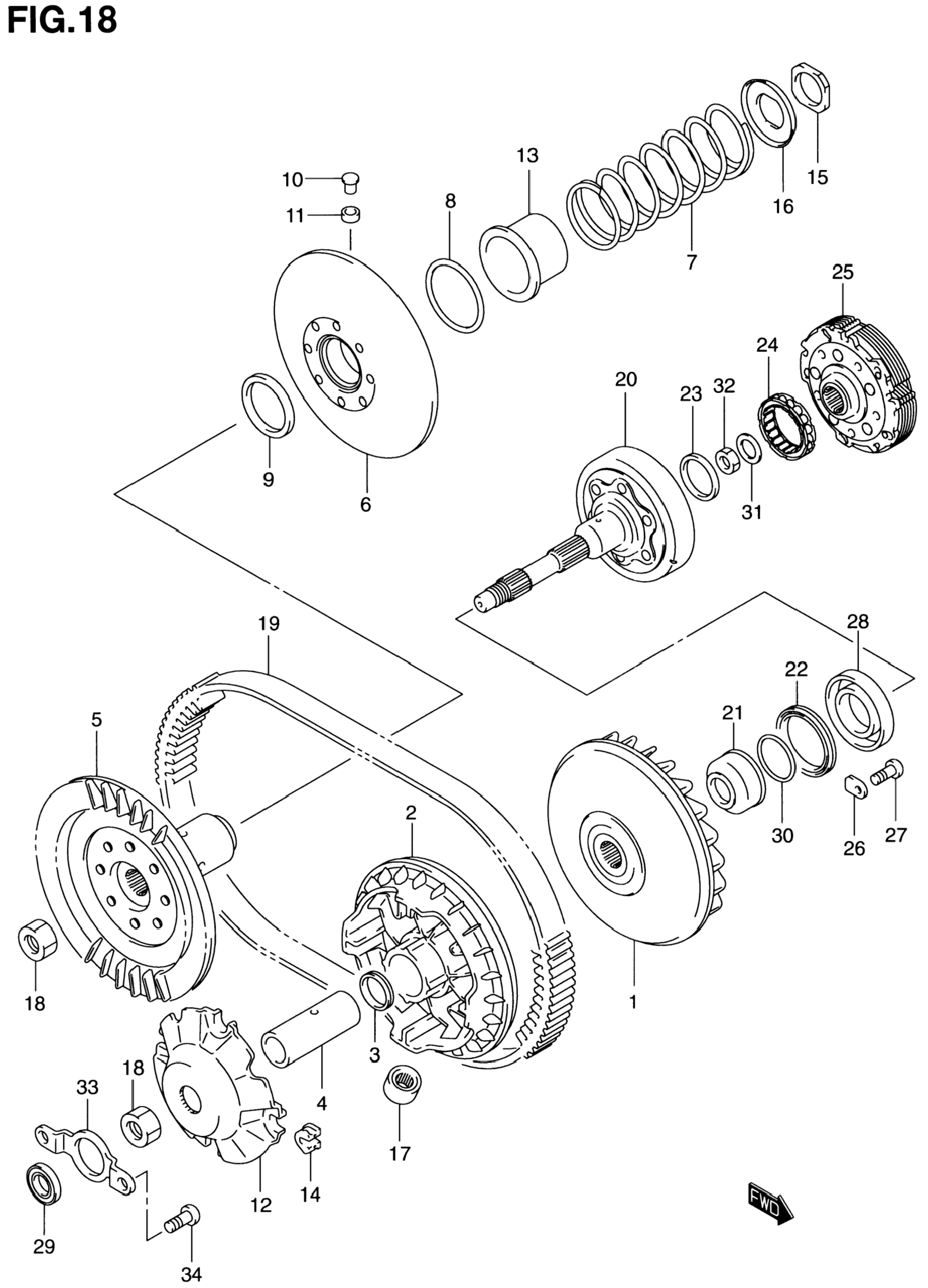

| REFER TO FIG.18 | 1 | Узнать цены | ||||
| 1 | 21110-09F50 |
Face, fixed drive Suzuki Moto |
1 | 45-55 дней | 19380 ₽ | |
| 2 | 21120-09F52 |
Face, movable drive Suzuki Moto |
1 | 45-55 дней | 18592 ₽ | |
| 3 | 21124-09F50 |
Seal, movable drive Suzuki Moto |
2 | 45-55 дней | 1282 ₽ | |
| 4 | 21125-09F50 |
Spacer, movable drive Suzuki Moto |
1 | 45-55 дней | 6750 ₽ | |
| 5 | 21210-09F52 | Face, fixed driven | 1 | Узнать цены | ||
| 6 | 21240-09F52 | Face, movable driven | 1 | Узнать цены | ||
| 7 | 21243-09F52 |
Spring, movable driven Suzuki Moto |
1 | 45-55 дней | 5011 ₽ | |
| 8 | 21245-15F00 |
O ring, movable driven Suzuki Moto |
2 | 45-55 дней | 603 ₽ | |
| 9 | 21247-15F00 |
Seal, movable driven Suzuki Moto |
2 | 45-55 дней | 1365 ₽ | |
| 10 | 21248-15F01 |
Pin, movable driven Suzuki Moto |
4 | 45-55 дней | 572 ₽ | |
| 11 | 21249-15F00 |
Spacer, movable driven Suzuki Moto |
4 | 45-55 дней | 645 ₽ | |
| 12 | 21431-09F60 |
Plate, movable drive Suzuki Moto |
1 | 45-55 дней | 5519 ₽ | |
| 13 | 21471-09F60 |
Sheet, movable driven Suzuki Moto |
1 | 45-55 дней | 2031 ₽ | |
| 14 | 21481-14F00 |
Damper, movable drive Suzuki Moto |
4 | 45-55 дней | 867 ₽ | |
| 15 | 21518-09F50 |
Nut, driven pully Suzuki Moto |
1 | 45-55 дней | 3216 ₽ | |
| 16 | 21519-09F52 |
Holder, movable driven Suzuki Moto |
1 | 45-55 дней | 2233 ₽ | |
| 17 | 21650-09F51 |
Roller, movable drive Suzuki Moto |
8 | 45-55 дней | 2024 ₽ | |
| 18 | 09140-20011 | Nut, face | 2 | Узнать цены | ||
| 19 | 27601-09F51 |
V belt, drive Suzuki Moto |
1 | 45-55 дней | 22227 ₽ | |
| 20 | 21100-09F60 |
Housing, clutch Suzuki Moto |
1 | 45-55 дней | 33387 ₽ | |
| 21 | 21102-09F51 |
Spacer, fixed drive lh Suzuki Moto |
1 | 45-55 дней | 5052 ₽ | |
| 22 | 21104-09F56 |
Seal, clutch housing Suzuki Moto |
1 | 45-55 дней | 7310 ₽ | |
| 23 | 21105-09F50 |
Seal, clutch housing Suzuki Moto |
1 | 45-55 дней | 2665 ₽ | |
| 24 | 21273-44D00 |
Clutch, one way Suzuki Moto |
1 | 45-55 дней | 16684 ₽ | |
| 25 | 21500-03G00 |
Clutch assy, shoe Suzuki Moto |
1 | 45-55 дней | 41818 ₽ | |
| 26 | 24741-21A00 |
Retainer, bearing Suzuki Moto |
2 | 45-55 дней | 318 ₽ | |
| 27 | 02112-0612A |
Screw, retainer Suzuki Moto |
2 | 45-55 дней | 171 ₽ | |
| 28 | 09262-40009 |
Bearing Suzuki Moto |
1 | 45-55 дней | 11659 ₽ | |
| 29 | 09262-17047 |
Bearing Suzuki Moto |
1 | 45-55 дней | 3891 ₽ | |
| 30 | 09280-40010 |
O ring (d:2.4,id:39.7) Suzuki Moto |
1 | 45-55 дней | 344 ₽ | |
| 31 | 09160-18033 |
Washer (18x30x2.5) Suzuki Moto |
1 | 45-55 дней | 358 ₽ | |
| 32 | 09140-18004 |
Nut Suzuki Moto |
1 | 45-55 дней | 387 ₽ | |
| 33 | 24751-09F50 |
Retainer, bearing Suzuki Moto |
1 | 45-55 дней | 780 ₽ | |
| 34 | 09126-06011 |
Screw Suzuki Moto |
2 | 45-55 дней | 240 ₽ |
