| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |

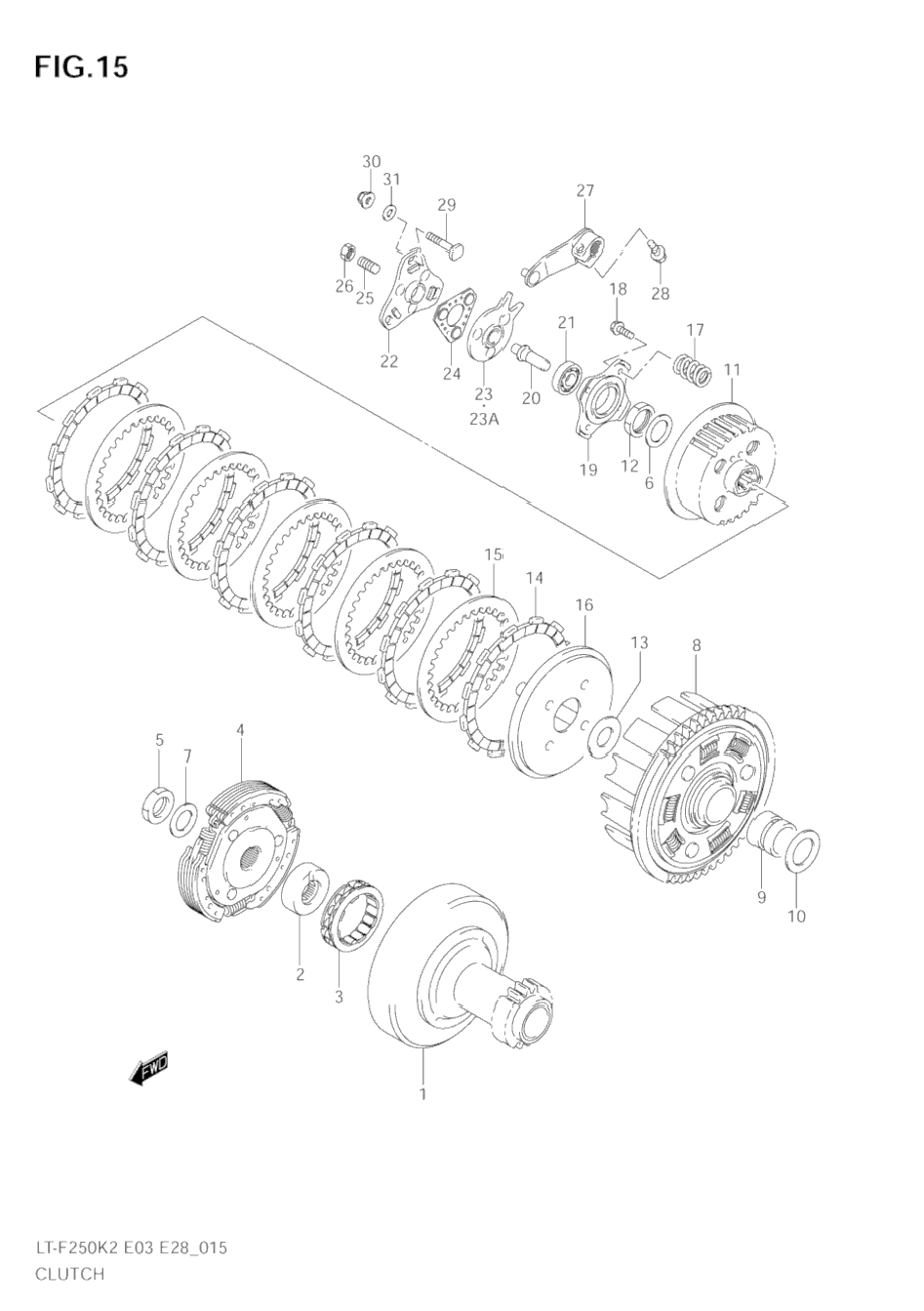

| -- | Refer to fig.15a(d- 4) for | 1 | 0 ₽ | |||
| 1 | 21110-05G00 |
Gear, primary drive (nt:20) Suzuki Moto |
1 | 45-55 дней | 21343 ₽ | |
| 2 | 21631-19B11 |
Race, inner Suzuki Moto |
1 | 45-55 дней | 3698 ₽ | |
| 3 | 21273-19B10 |
Clutch, one way Suzuki Moto |
1 | 45-55 дней | 16679 ₽ | |
| 4 | 21500-05G10 |
Clutch assy Suzuki Moto |
1 | 45-55 дней | 28448 ₽ | |
| 5 | 09140-18012 |
Nut Suzuki Moto |
1 | 45-55 дней | 1006 ₽ | |
| 6 | 09164-20007 |
Lock washer (id:20.1) Suzuki Moto |
1 | 45-55 дней | 470 ₽ | |
| 7 | 09164-18001 |
Lock washer (id:18.3) Suzuki Moto |
1 | 45-55 дней | 388 ₽ | |
| 8 | 21200-05G00 | Gear assy, primary (nt:65) | 1 | Узнать цены | ||
| 9 | 09180-22035 |
Spacer (22x28x23) Suzuki Moto |
1 | 45-55 дней | 2170 ₽ | |
| 10 | 09181-22251 |
Washer (22x36x1.0) Suzuki Moto |
1 | 45-55 дней | 387 ₽ | |
| 11-1 | 21410-24500 | Hub, clutch ~f.no.jsaaj51a22100696 | 1 | Узнать цены | ||
| 11-2 | 21410-05G00 |
Hub, clutch f.no.jsaaj51a22100697~ Suzuki Moto |
1 | 45-55 дней | 12450 ₽ | |
| 12 | 09140-20001 |
Nut Suzuki Moto |
1 | 45-55 дней | 404 ₽ | |
| 13 | 08211-20323 |
Washer Suzuki Moto |
1 | 45-55 дней | 310 ₽ | |
| 14 | 21441-22A01 |
Plate, drive Suzuki Moto |
6 | 45-55 дней | 1770 ₽ | |
| 15 | 21451-36200 |
Plate, driven (t:2.0) Suzuki Moto |
5 | 45-55 дней | 912 ₽ | |
| 16 | 21462-24501 |
Disc, pressure Suzuki Moto |
1 | 45-55 дней | 5510 ₽ | |
| 17-2 | 21413-05G10 |
Spring f.no.jsaaj51a22100697~ Suzuki Moto |
4 | 45-55 дней | 499 ₽ | |
| 17-1 | 09440-19017 |
Spring ~f.no.jsaaj51a22100696 Suzuki Moto |
4 | 45-55 дней | 443 ₽ | |
| 18 | 01550-0620A |
Bolt Suzuki Moto |
4 | 45-55 дней | 233 ₽ | |
| 19 | 21465-24500 |
Plate, release Suzuki Moto |
1 | 45-55 дней | 1958 ₽ | |
| 20 | 23121-05G00 |
Piece, push Suzuki Moto |
1 | 45-55 дней | 2590 ₽ | |
| 21 | 09262-12001 |
Bearing (12x28x8) Suzuki Moto |
1 | 45-55 дней | 2220 ₽ | |
| 22 | 23231-05G00 | Guide, ball outer | 1 | Узнать цены | ||
| 23 | 23211-24201 | Guide, ball inner ~f.no.jsaaj51a22100696 | 1 | Узнать цены | ||
| 23A | 23211-05G00 | Guide, ball inner f.no.jsaaj51a22100697~ | 1 | Узнать цены | ||
| 24 | 23250-31003 |
Ball, release Suzuki Moto |
1 | 45-55 дней | 2882 ₽ | |
| 25 | 09134-08009 |
Screw, adjuster Suzuki Moto |
1 | 45-55 дней | 396 ₽ | |
| 26 | 09140-08019 |
Nut, adjuster Suzuki Moto |
1 | 45-55 дней | 213 ₽ | |
| 27-1 | 23220-24500 |
Arm, release ~f.no.jsaaj51a22100696 Suzuki Moto |
1 | 45-55 дней | 3366 ₽ | |
| 27-2 | 23220-05G00 | Arm, release f.no.jsaaj51a22100697~ | 1 | Узнать цены | ||
| 28 | 01500-0620A |
Bolt Suzuki Moto |
1 | 45-55 дней | 212 ₽ | |
| 29 | 09119-06103 |
Bolt Suzuki Moto |
3 | 45-55 дней | 233 ₽ | |
| 30 | 08313-2006A |
Nut Suzuki Moto |
3 | 45-55 дней | 233 ₽ | |
| 31 | 09168-06023 |
Seal, bolt Suzuki Moto |
3 | 45-55 дней | 240 ₽ |
