| № | Номер запчасти | Наименование | Кол-во | Срок поставки/дней | Цена | |
| -- |

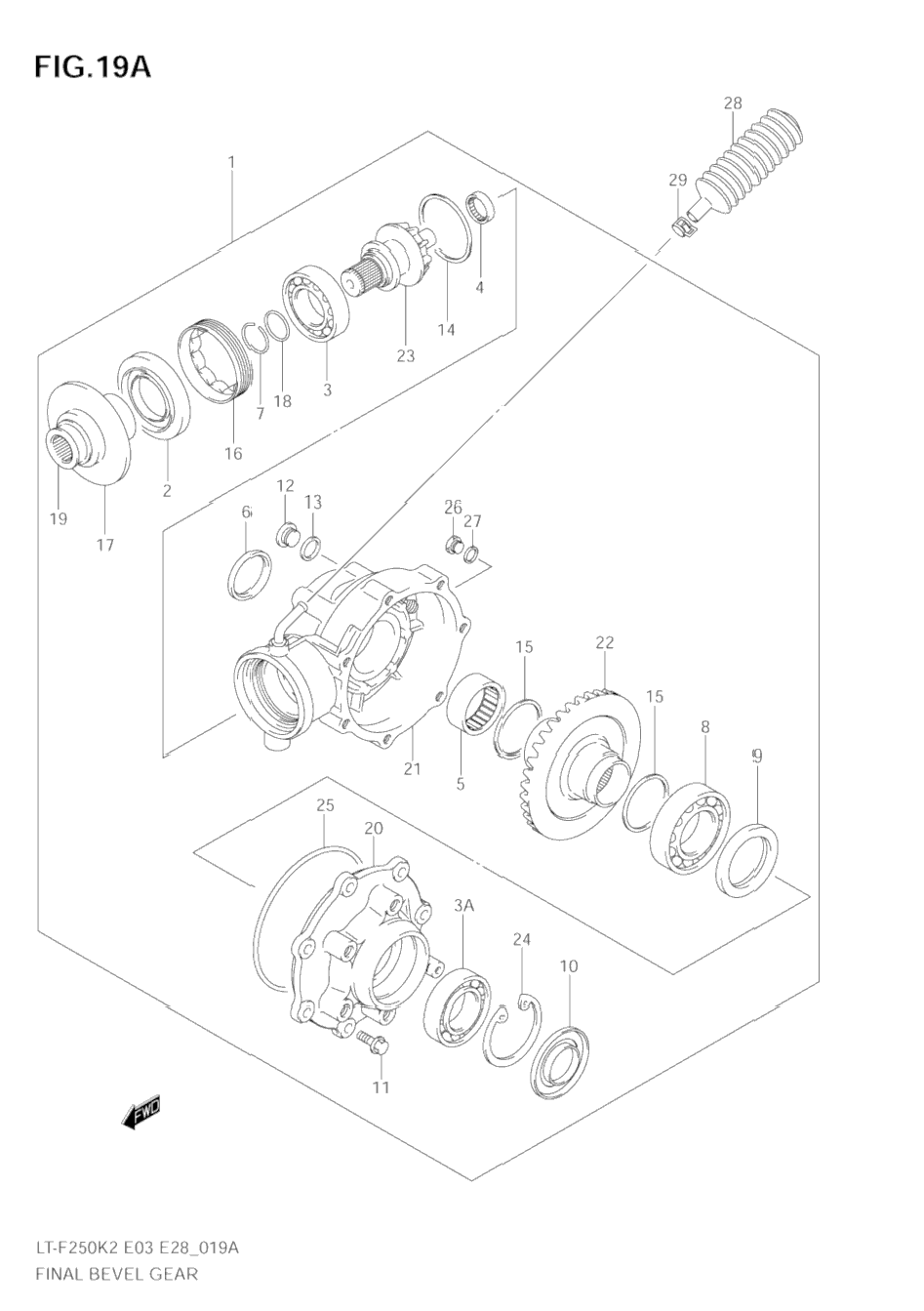

Refer to fig.19b(e- 4) for Kawasaki |
1 | 45-55 дней | 3945 ₽ | ||
| 1 | 27400-05G10 |
Case assy, rear final gear Suzuki Moto |
1 | 45-55 дней | 164589 ₽ | |
| 2 | 27406-05GA0 |
.oil seal (35x69x8) Suzuki Moto |
1 | 45-55 дней | 3186 ₽ | |
| 3 | 27405-05GF0 |
.bearing (30x62x16) Suzuki Moto |
1 | 45-55 дней | 7870 ₽ | |
| 3A | 27405-05GF0 |
.bearing (30x62x16) Suzuki Moto |
1 | 45-55 дней | 7870 ₽ | |
| 4 | 27405-05GB0 |
.bearing (15x23x16) Suzuki Moto |
1 | 45-55 дней | 5315 ₽ | |
| 5 | 27405-05GC0 |
.bearing (45x52x20) Suzuki Moto |
1 | 45-55 дней | 7448 ₽ | |
| 6 | 27406-05GB0 |
.oil seal (45x55x7) Suzuki Moto |
1 | 45-55 дней | 3295 ₽ | |
| 7 | 27403-05GA1 |
.c ring (24x1.0) Suzuki Moto |
1 | 45-55 дней | 599 ₽ | |
| 8 | 27405-05GD0 |
.bearing (45x75x16) Suzuki Moto |
1 | 45-55 дней | 9782 ₽ | |
| 9 | 27406-05GC0 |
.oil seal (42x62x7) Suzuki Moto |
1 | 45-55 дней | 3186 ₽ | |
| 10 | 27406-05GG0 |
.oil seal (30x62x7) Suzuki Moto |
1 | 45-55 дней | 3432 ₽ | |
| 11 | 27401-05GC0 |
.bolt Suzuki Moto |
7 | 45-55 дней | 638 ₽ | |
| 12 | 27409-05GA0 |
.plug Suzuki Moto |
2 | 45-55 дней | 1638 ₽ | |
| 13 | 27407-05GA0 |
.gasket Suzuki Moto |
2 | 45-55 дней | 834 ₽ | |
| 14 | 27407-05810 |
.shim set, final drive t:1.38/1.44/1.50/1.56/1.62/1.68 Suzuki Moto |
1 | 45-55 дней | 8929 ₽ | |
| 15 | 27407-05820 |
.shim set, final driven t:1.26/1.32/1.38/1.44/1.50/1.56/ Suzuki Moto |
1 | 45-55 дней | 24800 ₽ | |
| 16 | 27312-05GA0 |
.stopper, bearing Suzuki Moto |
1 | 45-55 дней | 8538 ₽ | |
| 17 | 27592-05GA0 |
.plate, output oil seal Suzuki Moto |
1 | 45-55 дней | 3768 ₽ | |
| 18 | 27406-05GE0 |
.o ring (d:2.0,id:25.5) Suzuki Moto |
1 | 45-55 дней | 599 ₽ | |
| 19 | 27591-05GA1 |
.shaft, joint Suzuki Moto |
1 | 45-55 дней | 11046 ₽ | |
| 20 | 27461-05GA1 |
.case, final gear lh Suzuki Moto |
1 | 45-55 дней | 24800 ₽ | |
| 21 | 27450-05GA1 |
.case, final gear rh Suzuki Moto |
1 | 45-55 дней | 60623 ₽ | |
| 22 | 27321-05GA0 |
.gear, final driven bevel Suzuki Moto |
1 | 45-55 дней | 34601 ₽ | |
| 23 | 27311-05GA0 |
.gear, final driven bevel Suzuki Moto |
1 | 45-55 дней | 25918 ₽ | |
| 24 | 27403-05GB0 |
.circlip Suzuki Moto |
1 | 45-55 дней | 930 ₽ | |
| 25 | 27406-05GF0 |
.o ring (d:3.5,id:130) Suzuki Moto |
1 | 45-55 дней | 1821 ₽ | |
| 26 | 27401-05GB0 |
.bolt, oil check Suzuki Moto |
1 | 45-55 дней | 318 ₽ | |
| 27 | 27407-05GD0 |
.gasket, oil check Suzuki Moto |
1 | 45-55 дней | 797 ₽ | |
| 28 | 27491-38F00 |
Case, breather Suzuki Moto |
1 | 45-55 дней | 2361 ₽ | |
| 29 | 09401-08411 |
Clamp, breather case Suzuki Moto |
1 | 45-55 дней | 225 ₽ |
